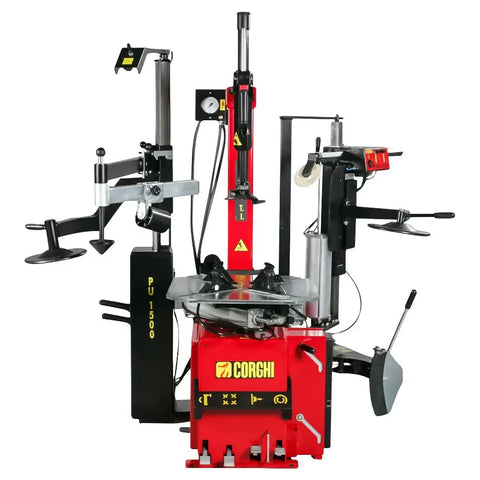

Corghi A2024TI-2015E Tilt Back Electric Tire Changer w/ SP2000, PU1500 Arms
- SKU: COR-A2024TI-2015E $9,975.00
- Save $104.99
Part No: COR-A2024TI-2015E
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Corghi A2420TI-2015E is the same tire machine as the electric A2420TI but with the addition of the PU1500, and SP2000 helper arms. Designed for Low-Profile, EMT, and high-performance tire and wheels.
- Built-in table inflator with jets in the jaws.
- Unique mount/demount head does not touch the rim during operation.
- The locking handle locks the head away from the rim.
- Powerful action bead-breaker blade follows bead to inside rim contour.
- The heavy-duty turntable rotates in either direction.
- Rebuildable stainless steel cylinders.
- Heavy-duty stainless steel turntable.
- Safe, fast, profitable, and affordable.
- Pneumatic-locking mount/demount head.
- Sturdy tilt-back tower.
- Tire pressure sensor style rims change safely.
- Interchangeable locking peaks on jaws.
- Tabletop rotation double-speed RPM 6-16.
- Shipping weight 573 lbs.
- Also available with air motor.
- The pneumatic-powered upper disc holds bead into the wheel drop for mounting
- Designed for low-profile, EMT, and high-performance tires and wheels
- Loosening upper bead for demounting
- Push down upper bead for lubrication and tire tool insertion
- Lowering upper bead for inspection between the bead and demount head
- Lowering upper bead for inserting the bead clamp; this clamp makes it possible to lift the bead over the mount/demount head
- Shipping weight 815 lbs.
- Pneumatic powered
- Wheel and bead pressing arm
- Bead lifter
- Maintains bead in the drop center
- Eliminates bead stress
- Eliminates wheel damage
- One person operation to change even the most difficult tires
- PAX capable with PAX kit
- Rim clamping assist
- Shipping weight 1080 lbs.
Specs:Ext. Rim Size: 10in-24in
Optional w/Adapter: 8in-26in
Int. Rim Size: 13in-26in
Voltage: 110V 1 Ph
Rim Width: 2in-15in
Max. Tire Diameter: 43in
Air Pressure: 150 psi
Bead Breaker Power @ Shoe: 3500 lbs
Torque: 737 ft/lbs
Includes:A2024TI Tire Changer
PU1500 Helper Arm
SP2000 Helper Arm
M/D Head Bottom Inserts
Set of Jaw Protectors
B/B Blade Protector
Set of Inserts
Tire Lever Cover
Limited Warranty:2 year parts
1 year labor
