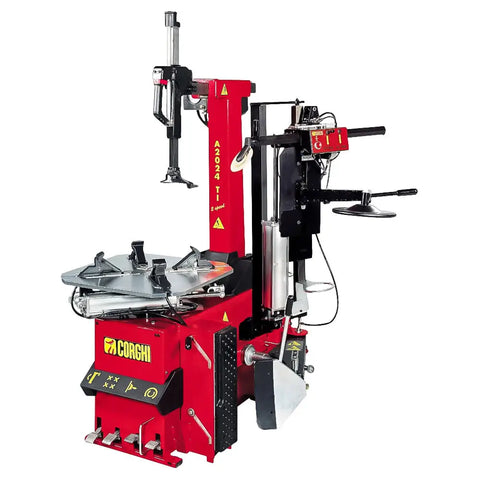

Corghi A2420TI-20 Tilt Back Electric Tire Changer w/ SP2000 Arm

Corghi A2420TI-20 Tilt Back Electric Tire Changer w/ SP2000 Arm
application carCar
application light truckLight Truck
Marked DownMarked Down
Made in Europe

Corghi A2420TI-20 Tilt Back Electric Tire Changer w/ SP2000 Arm

  • SKU: COR-A2024TI-20 $8,350.00
  • Save $217.76
For Business Financing from Learn More

Part No: COR-A2024TI-20

SHIPPING INFO
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES
DOWNLOADS


PRODUCT INFO

Corghi A2420TI-20E is the same tire machine as the electric A2420TI but with the addition of the SP2000 Super Power Unit helper arm. Designed for Low-Profile, EMT, and high-performance tire and wheels.


Features:

  • Built-in table inflator with jets in the jaws.
  • Unique mount/demount head does not touch the rim during operation.
  • Locking handle locks the head away from the rim.
  • Powerful action bead-breaker blade follows bead to inside rim contour.
  • Heavy-duty turntable rotates in either direction.
  • Rebuildable stainless steel cylinders.
  • Heavy-duty stainless steel turntable.
  • Safe, fast, profitable, and affordable.
  • Pneumatic-locking mount/demount head.
  • Sturdy tilt-back tower.
  • Tire pressure sensor style rims change safely.
  • Interchangeable locking peaks on jaws.
  • Tabletop rotation double-speed RPM 6-16.
  • Shipping weight 573 lbs.
  • Also available with air motor.

SP2000 Features:

  • The pneumatic-powered upper disc holds bead into the wheel drop for mounting
  • Designed for low-profile, EMT, and high-performance tires and wheels
  • Loosening upper bead for demounting
  • Push down upper bead for lubrication and tire tool insertion
  • Lowering upper bead for inspection between the bead and demount head
  • Lowering upper bead for inserting the bead clamp; this clamp makes it possible to lift the bead over the mount/demount head
  • Shipping weight 815 lbs.

Specs:

Ext. Rim Size: 10in-24in
Optional w/Adapter: 8in-26in
Int. Rim Size: 13in-26in
Voltage: 110V 1 Ph
Rim Width: 2in-15in
Max. Tire Diameter: 43in
Air Pressure: 150 psi
Bead Breaker Power @ Shoe: 3500 lbs
Torque: 737 ft/lbs

Limited Warranty:

2 year parts
1 year labor
For more info Here
