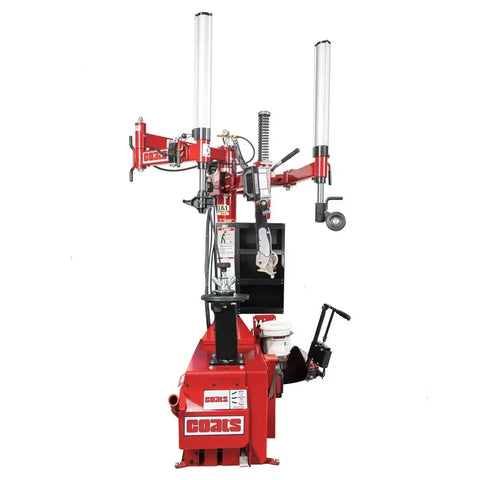

Coats 90CA Air Center-Clamp Tire Machine - 80090CAH3
Part No: CTS-80090CAH3
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Looking for a tire changer that is durable, reliable, and easy to use? Look no further than the Coats Model 90C Air Center Clamp Tire Changer. This tire changer is the newest member of the Coats tire changer family and builds on the legacy of its predecessors. The 90C is an extension of the Coats swingarm tire changer you have always known and trusted, with new features such as a robust center lock mechanism designed to ease use and minimize metal-to-metal contact. Our leverless duckhead and auxiliary bead sealer come standard with the 90C and make changing tires a breeze!
Features:

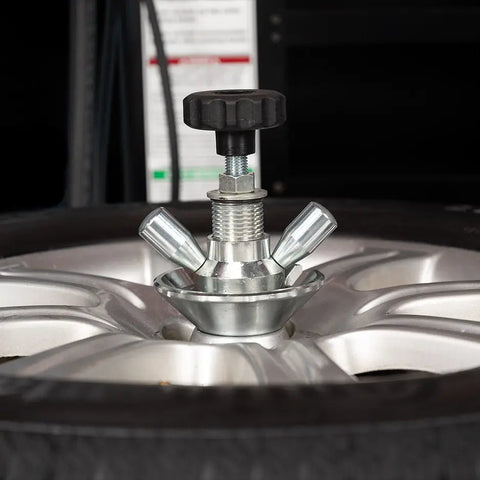

- Center Locking Clamp Design: Easy to use center locking mechanism is fast, robust and helps prevent metal-to-metal contact with customer wheels

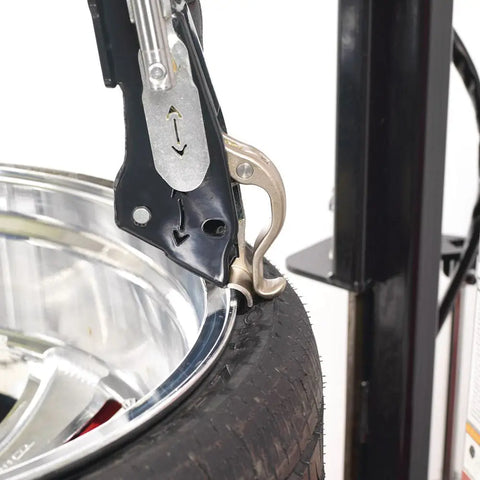

- Leverless Duckhead Mount/demount Tool: This feature acts as a helper device and eliminates traditional tire tools that can mar the surface due to application difficulty.

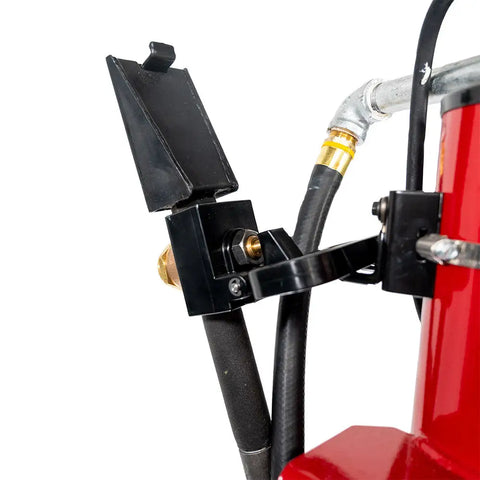

- Auxiliary Bead Sealer: The Coats Auxiliary Bead Sealer (ABS) taps into the tire changers surge tank, providing additional bead seating volume. The ABS assists with sealing difficult applications.

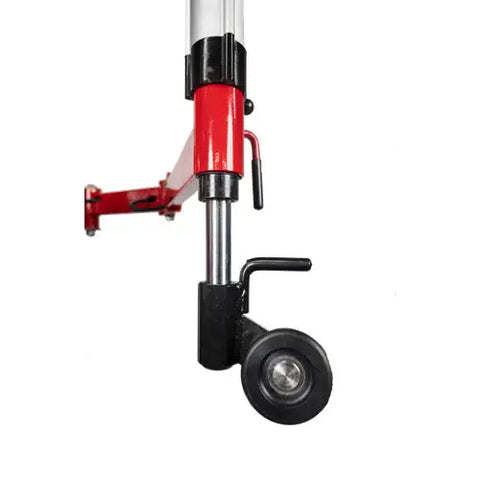

- RoboRoller Powered Assist: The RoboRoller provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool.
Specs:
Wheels Handled: Alloy and Steel for Car and Light TruckRim Diameter: 12in - 30in
Maximum Tire Diameter: 50in Max
Maximum Rim Width: 15in Max
Bead Loosening System: Hand Control - Power In/Out and Freeze
Wheel Clamping System: Center Clamp with Manual Lock
Mount/Demount Mechanism: Leverless Duckhead® Mount/Demount Tool - no tire bar necessary
Helper Devices:
- Robo-Arm (18in of Automated Vertical Stroke)
- RoboRoller
Bead Seating Air Volume: 5.4 Gallons in Tower
Inflation Gauge: 0 - 60 psi
Air Supply Gauge: 0 - 300 psi
Air Drive System: 1.5 HP Air Motor, 110 - 175 psi, 15 scfm

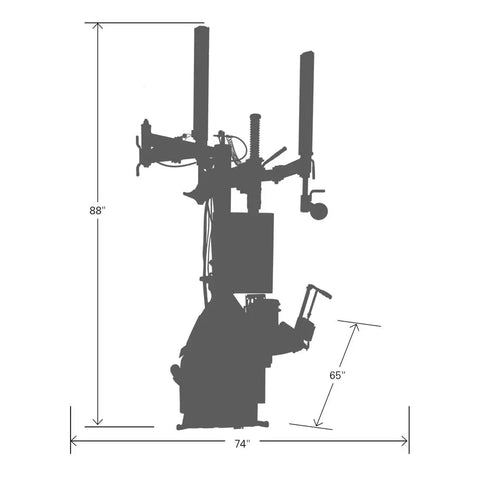

Footprint: 74inw x 88inh x 65ind
Ship Weight: 700 lbs.
Warranty: 3-Year Parts, 6 Months Labor
Ref No.:
90C-AIR
90CAHL
80090CAH3
Includes:
1 x 85606545 - Auxiliary Bead Sealer (ABS)2 x 8183606 - Bead Loosener Shoe Socks - 2
1 x 85009048 - Paste Lube Bracket & Brush
2 x 83019057 - Protection Cone for Center Lock - 2
1 x 89233409 - Leverless Duckhead® mount/demount tool plastic inserts
1 x 8183710 - Paste Lube
1 x 83031335 - Anti-Rotation Extension Pin
1 x 83032475 - Light Truck Cone - 5.86in Center Bore
2 x 89231517 - Rubber Protection Pad - 2
1 x 85610105 - Premium Storage Cabinet
Optional Accessories
Point-of-Use Lift System
Manual Drop Center Tool
Tire Cage
Inflation System
Leverless Duckhead Mount/demount Tool Plastic Inserts
Coats Installation & Setup:
Installation and training are included and will be performed by a factory-trained service technician for tire changers, balancers, alignment systems, and other advanced products sold by All Tire Supply.
*Lift installation does not apply.
Disclaimer: Customers must have the equipment placed in its final location and ensure all required electrical connections are in place and ready prior to installation.
