CEMB ER75 Video Diagnostic Wheel Balancer
Part No: CMB-ER75
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Spotter video diagnostic wheel balancer
Professional video wheel balancer with automatic distance and diameter entry with width sonar (3D), with new spotter laser system, Full-time Static on screen, pneumatic locking, radial runout sonar and 42” wheel guard standard
The CEMB Diagnostic Wheel Balancer ER75TD is made especially for busy tire shops. This new series has the latest technology in wheel balancing, "Spotter" lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions major cause of check spin errors.
Full Time Static on screen for a perfect balance, Pneumatic Locking for easy, quick and perfect clamping and Radial Runout Sonar for wheel diagnostic. The automatic arm measures diameters up to 30in, automatic entry of the dimensions with width sonar 3D. It comes fully assembled.
Features:
- Professional video diagnostic wheel balancer especially designed for tire dealers
- Automatic Distance & Diameter Entry with Width Sonar 3D
- Fully automatic Spotter Laser System for best correction possible
- Full-time accuracy with Static unbalance always displayed on screen
- Radial Runout Sonar for wheel diagnostic
- LED to light the work space inside the rim
- New automatic arm to measure automatically diameters up to 30in
- Pneumatic locking
- Electromagnetic brake for easy weight placement
- Thermal printer
- Available 110VAC or 220VAC
- Wide working space
- Optimization program for compensation of rim and tire unbalance
- One Button Split & Hidden Weight Program
Specs:
Power Supply: 110VAC or 220VAC, 50/60 Hz, 1 phBalancing Speed: < 100 rpm
Balancing Accuracy: < 0.1 oz < 1 g
Average Cycle Time: 5 seconds
Rim Diameter Capacity: 10in - 30in 265 - 765 mm
Rim Width Capacity: 1.5in - 20in 40 - 510 mm
Max. Wheel Weight: 165 lbs 75 kg
Max. Tire Diameter: 42in 1,067 mm
Operating Temperature: 32 - 113°F 0 - 45°C
Shaft Size: 40 mm
Operating pressure: 7-10 bar 105-145 psi
Gross Ship. Weight: 400 lbs 180 Kg

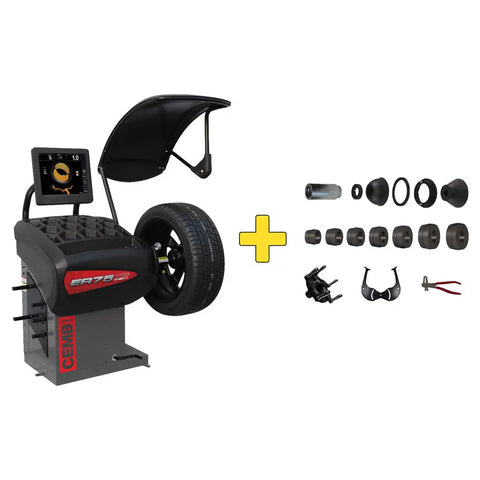

Standard Accessories
Pneumatic Sleeve: Reverse mounting cup with no mar-ring + Pressure ring
Cup + Press. Ring
Cones: 4 cones covering hole sizes 1.69in 43mm to 5.2in 132mm
2p Truck CK: 2 piece truck cone kit for light truck wheels for hole from 3.82in 97mm to 7.09in 180mm
Caliper: Rim width gauge for measuring wheel width
Shaft: 40mm pneumatic shaft
Weight Pliers: Can be used as balanced weight hammer, cutting pliers for trimming wheel weights, and puller to remove the old wheel weights
Test Weight
Printer: Printer for balancing certificate
Wheel Guard
Width Sonar: Automatic Width Sonar reading 3D
New Gauge: New extended aluminum gauge for diameter measurement of rims up to 30in
Spotter: Spotter Laser System for best correction possible
LED: LED to light the working space inside of the rim
Pneumatic Lock.
Radial RO Sonar: Radial runout sonar for wheel diagnostic
Electric Brake: Electric brake for easy weight placement
Optional Accessories

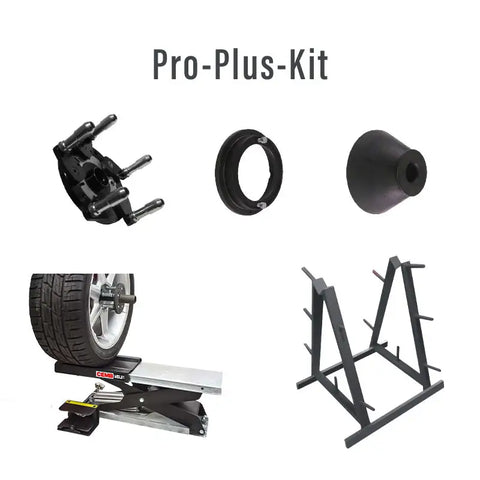

WBL81: Pneumatic lift for wheel balancers

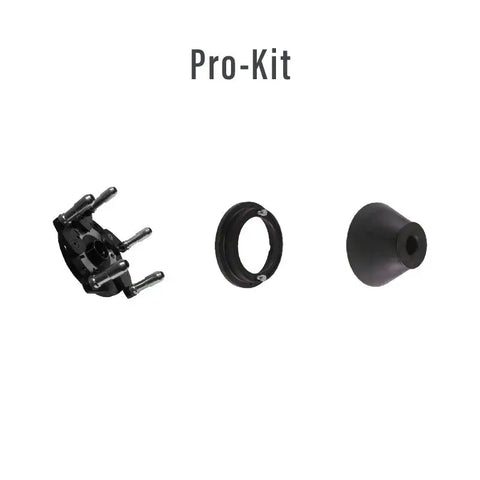

SRU345 SE: Universal stud adaptor for hub centric wheels with 3-4-5-6 holes, 75-210mm bolt pattern. To be used with inside centering cone.
SR USA SE: Stud adapter for rim protection and high precision on lug centric wheels. To be used without centering cone.
UH20/2: CEMB PATENT - Universal bolt pattern adaptor for wheels 3-4-5 holes or without center hole
WD + DC: WD wheel support spacer for very wide wheels + DC spring pusher bush
RL CUP + RING: Large diameter plastic cup for alloy rims protection 8.11in/206mm for alloy rims, includes no-mar ring
3P Truck CK: 2 piece truck cone kit + GG spacer ring to fit Ford F-350, 450 and 550
