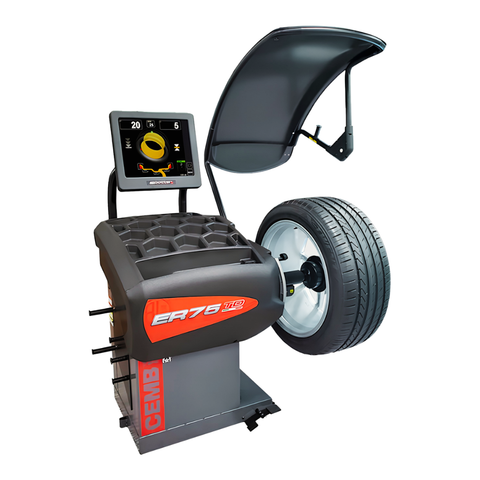

Name: Cemb ER75TD HubMatch RFV Diagnostic Wheel Balancer, Pneumatic Clamping
Brand: Cemb
SKU: cmb-er75td
Price: 10499 USD
Availability: InStock

Cemb ER75TD HubMatch RFV Diagnostic Wheel Balancer, Pneumatic Clamping

Car

Light Truck

Made in Europe

APPLY FOR FINANCING

Cemb ER75TD HubMatch RFV Diagnostic Wheel Balancer, Pneumatic Clamping

SKU: CMB-ER75TD $10,499.00
Save $900.00

Part No: CMB-ER75TD

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

Related Categories: Balancers Machine Cemb Shop Equipment Tire Balancers

PRODUCT INFO

ER75TD Sale Sheet

The Cemb ER75TD HubMatch is an RFV diagnostic wheel balancer with pneumatic wheel clamping for high-volume tire and wheel service. It combines dynamic balancing, RFV measurement, and guided wheel-to-hub positioning to help reduce eccentricity after balancing. A 5-second balancing cycle, touchscreen controls, Dynamic AutoAdaptive Mode, One Plane Balancing, Laser Spotter, and automatic measurement features support faster wheel-service workflows.

Features:

HubMatch guided wheel-to-hub positioning for eccentricity reduction
Dynamic AutoAdaptive Mode for wheel-specific balancing correction
One Plane Balancing for static unbalance correction while controlling residual dynamic unbalance
RFV measurement for tire and wheel vibration diagnosis
5-second balancing cycle
Pneumatic wheel clamping
Touchscreen control interface
Automatic 3D distance, diameter, and width measurement
EMS Sonar runout measurement
Laser Spotter for adhesive weight positioning
LED wheel-work-area illumination
Automatic Approach wheel positioning
Electromagnetic wheel brake

Specs:

Part No.: ER75TD
Product Type: RFV Diagnostic Wheel Balancer
Product Configuration: Standalone machine w/ standard accessories
Wheel Clamping: Pneumatic
Balancing Cycle: 5 sec

Max Rim Diameter: 30 in. (765 mm)
Max Rim Width: 20 in. (510 mm)
Max Tire Diameter: 42 in. (1067 mm)
Max Wheel Weight: 165 lb (75 kg)
Machine Weight: 264 lb (120 kg)

Power Supply: 220V, 1 phase
Compressed Air: Required
Manufacturing: Made in Italy; final assembly in USA

Application:

High-volume tire and wheel service shops performing diagnostic wheel balancing and RFV-related tire and wheel vibration service
Guided wheel-to-hub positioning intended to reduce eccentricity after balancing
