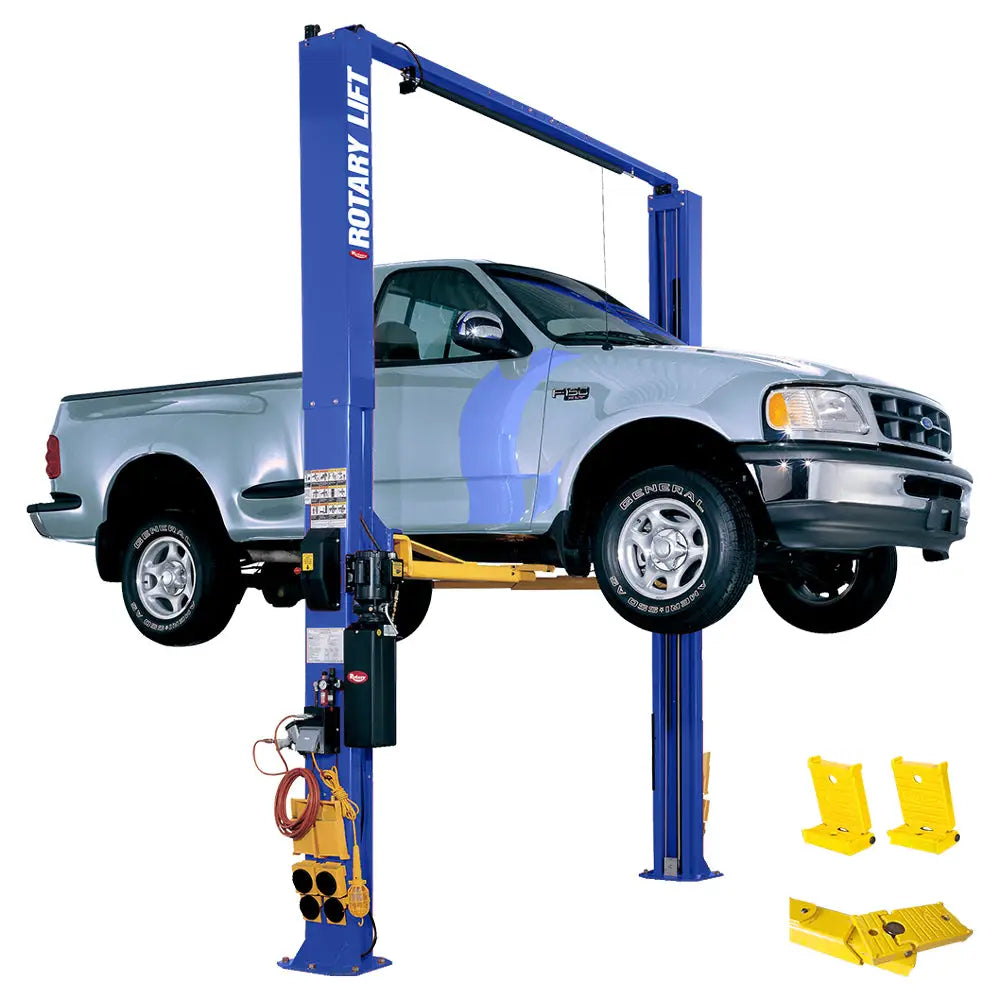

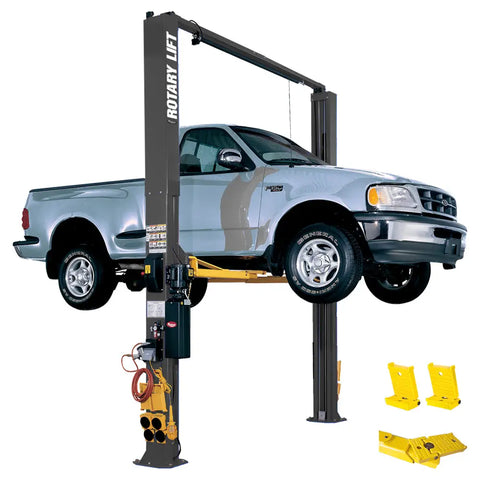

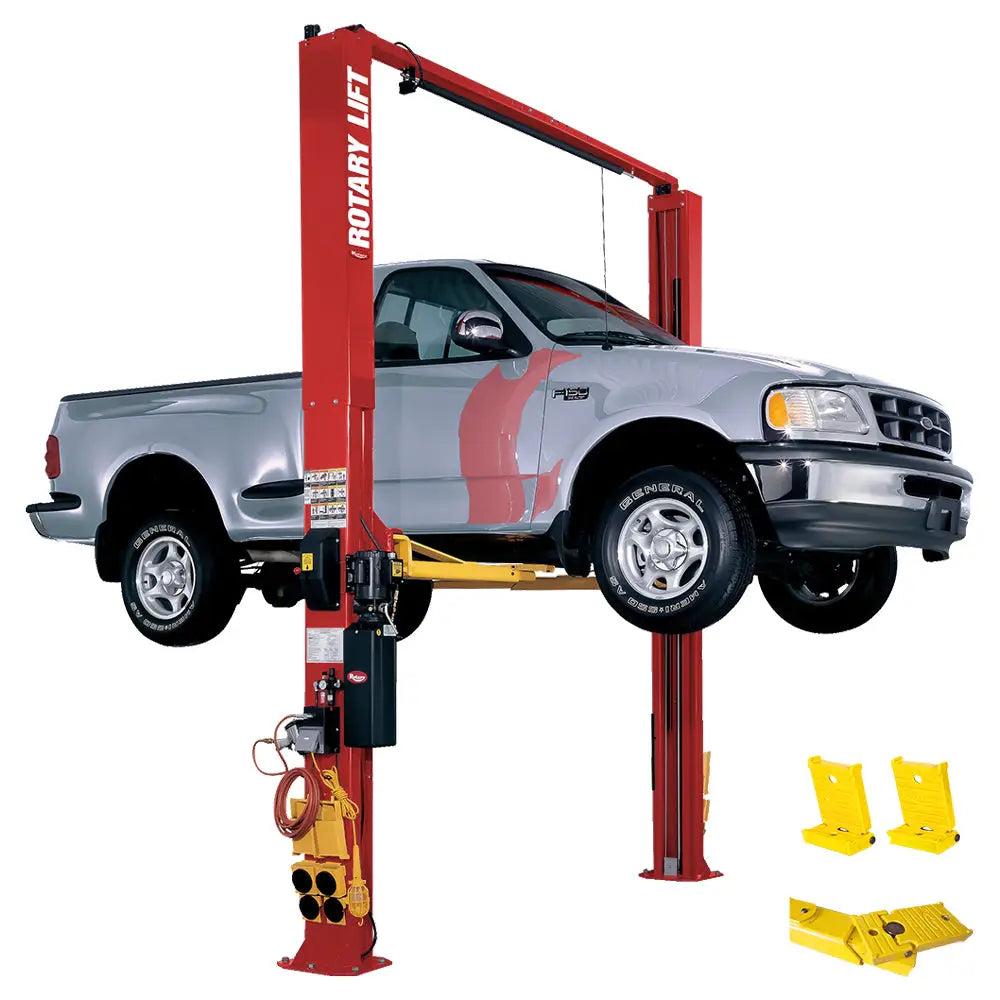

Rotary SPO10 10K Two-Post Symmetrical Lift
- SKU: RTY-SPO10-BL From $6,995.00
Part No: RTY-SPO10-BL
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Rotary 10,000 lbs surface mounted, frame contact lift. The SPO10 features electric-hydraulic operation and an actual symmetrical overhead design for a clear floor lift. Factory-rotated columns allow doors of vehicles to be fully opened while properly positioned on the lift. Arm restraints on all arms.
- True Symmetrical column design
- Customizable with your choice of arms and adapters
- Extended height models available for added versatility
- ALI Gold Certified (SPO10X)
Specs:Capacity: 10,000 lbs.
Base SPO10 Overall Height: 11ft 8 1/2in
Base SPO10 Required Ceiling Height: 12ft
Overall Width: 11ft 5 1/2in
Drive-Thru Width: 8ft 6 1/2in
Motor: 2 HP
Time of Full Rise/Decent: 45 secs./40 secs.
Min. Bay Size: 12ftx24ft
Weight: 1,581 lbs
Adapters: Flip Up
Front Arm Min/Max: 31in-54in
Rear Arm Min/Max: 31in-54in
Min. Adapter Height: 4 3/4in
Warranty:5 Year Warranty on Equipment Structure*
1 Year Warranty on Operating Functional**
1 Year Labor Warranty
For more info Here
* Ex of Structure parts: carriage, columns, yokes, arms, runways, plungers
** Ex of Functional Parts: power units, cylinders, latches, adapters, controls
