CEMB Complete Wheel Alignment System - DWA1000CWAS
Car
Light Truck
CEMB Complete Wheel Alignment System - DWA1000CWAS
Part No: CMB-DWA1000CWAS
Alaska, Hawaii, & any/all US territories & international orders are excluded.
The DWA1000CWAS Complete (DWA1000XL) wireless wheel alignment system for cars & light trucks is the perfect entry-level package for portability or for shops starting with low volume alignment services that wish to avoid the investment cost of an alignment rack.

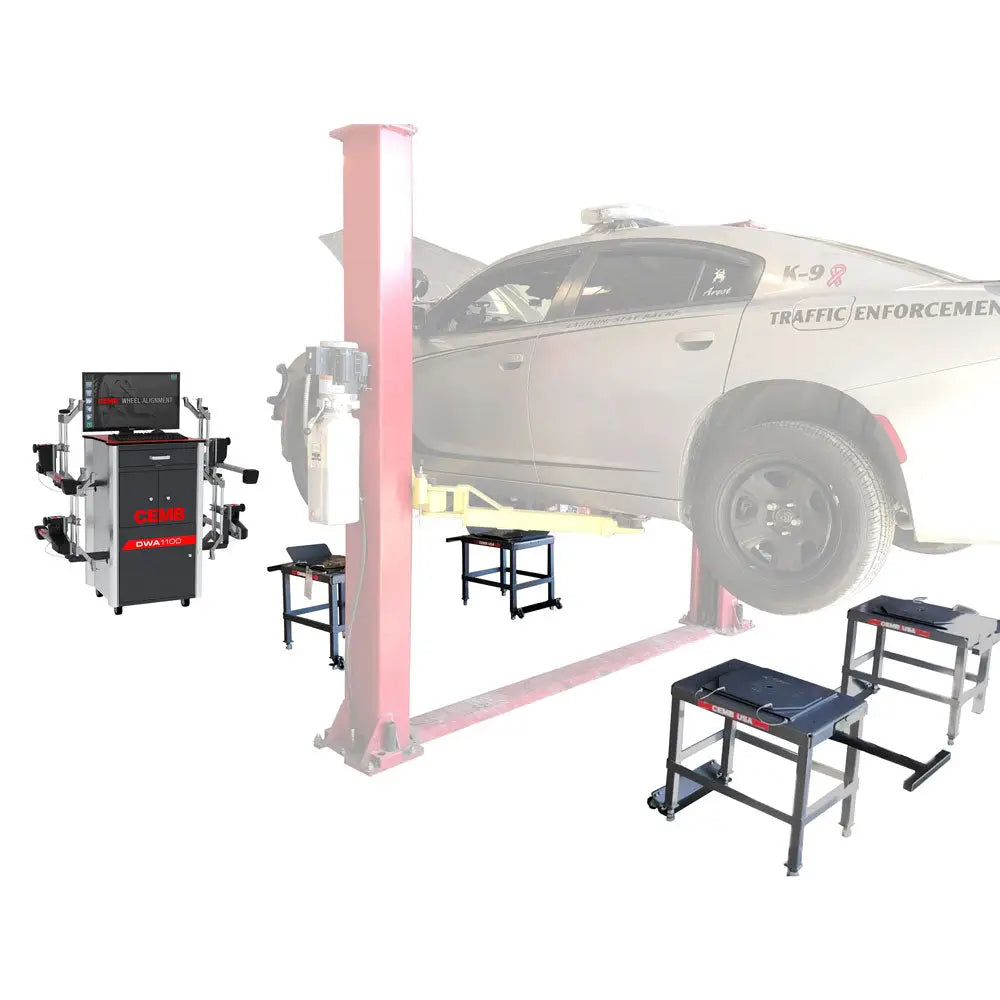

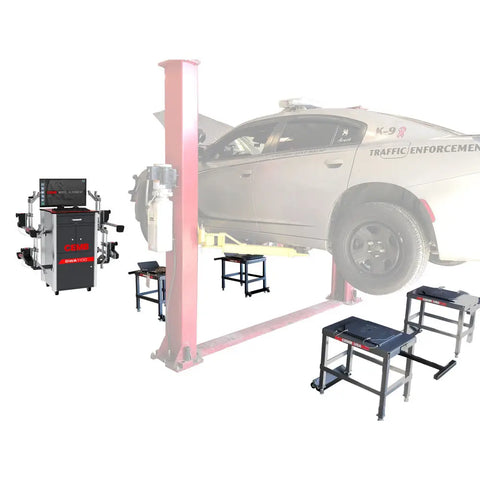

This system is the perfect entry-level package for portability or for shops starting with low-volume alignment services that wish to avoid the investment cost of an alignment rack. Portable wheel stands allow a two-post frame contact lift in virtually any work bay. Optimal for small repair shops or even frame benches in heavy-hit collision shops. It also works well as a backup alignment system to handle over-flow alignment service all across the shop.
CEMB DWA1000XL is a robust wireless eight-camera CCD sensor and lightweight wheel clamps. This system is designed with state-of-art electronics and efficient software to align the vehicle without excessive force, key-closures, and a flexible alignment path to move onto the next car quickly.

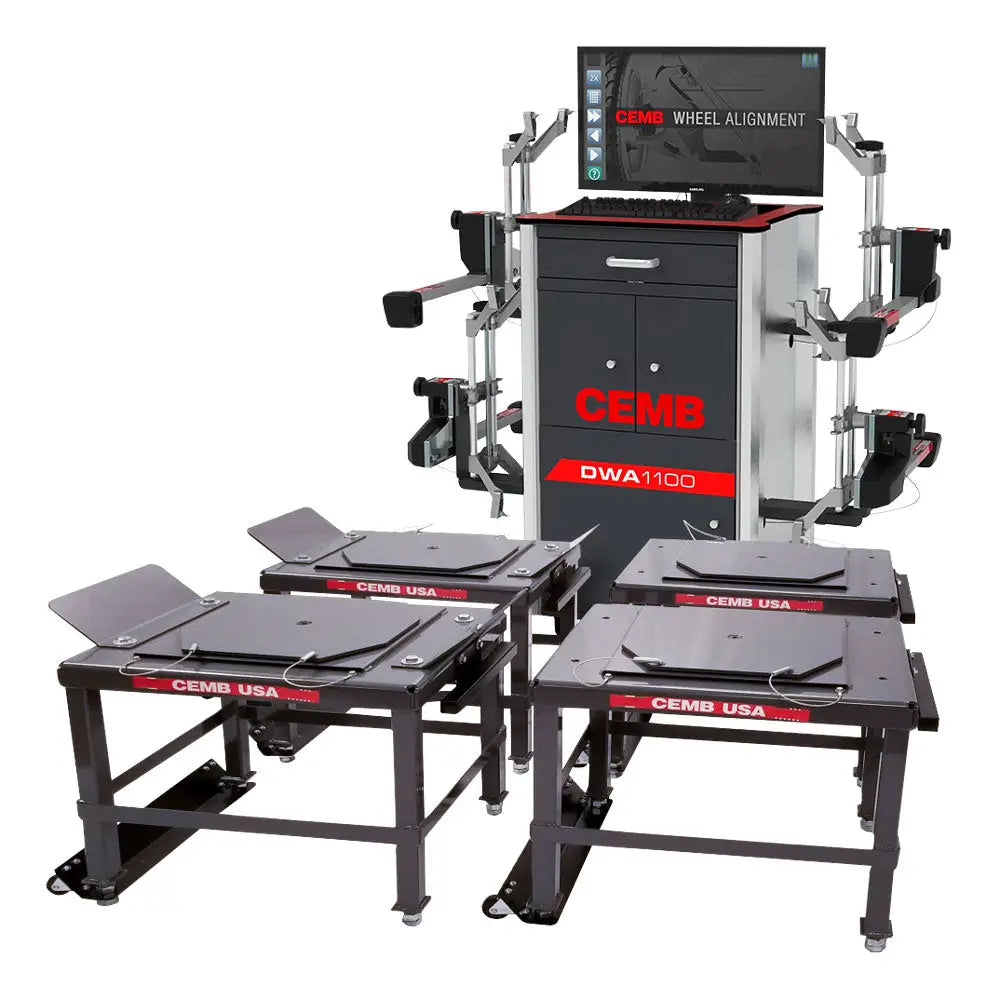

- CCD Wireless Sensor Wheel Aligner (DWA1000XL) with Wheel Stand Kit (Includes: Stands, Roller, & Plates).
- The portable wheel with integral turn plates on all four stands aligns all vehicles, including independent four-wheel suspensions and long-wheelbase light trucks.
- Easy to learn, Easy to use software with advanced features & complete specs.
- Has a 10,000 lb. weight capacity.
Features:
- Eight sensor CCD technology
- The portable wheel with integral turn plates on all four stands aligns all vehicles, including independent four-wheel suspensions and long-wheelbase light trucks.
- Four wireless rechargeable alignment heads with clamps and charging station standard
- Lithium-ion batteries for extended life
- Laptop computer and storage cabinet standard
- Accelerometers (newest measuring technology
- Windows-based software with multiple languages
- 24” wheel clamping range (30” optional)
- Laptop computer and storage cabinet standard
- Windows-based software with various languages
- Power supply and USB BT2 antenna
- Complete vehicle and customer database with alignment specification 30 years
- User-friendly software to guide technician
- Spoilers, no problem has spoiler program
- 23” Flat screen monitor and printer
Procedure Features:
- Function controls at measuring heads
- Two-wheel alignment with two heads only
- Run-out compensation lifted or rolled 90° or 180°
- Measures SAI, toe-out on turns, and set-back
- Lock and hold adjustments for lifted wheels
- View all adjustments of one or both axles on one screen
- Front and rear spoiler mode
- Zoom screen from each head to increase viewing range
Specs:
Height of Stands: 24inPower Supply: 110V, 50/60 Hz, one ph
Shipping Dimensions: L58in x W43in x H85in
Gross Shipping Weight: 350 lbs. (158Kg)
Includes:
4 x 24in Portable Wheel Stands w/ Built-in:- Locking Turnplates
- Rear Slip Plates
1 x Rim Clamp
4 x Grip/Pins
1 x Bungee Cord
1 x Brake Pedal Depressor
1 x Steering Wheel Holder
Cemb Warranty:
1 year full2 year parts
