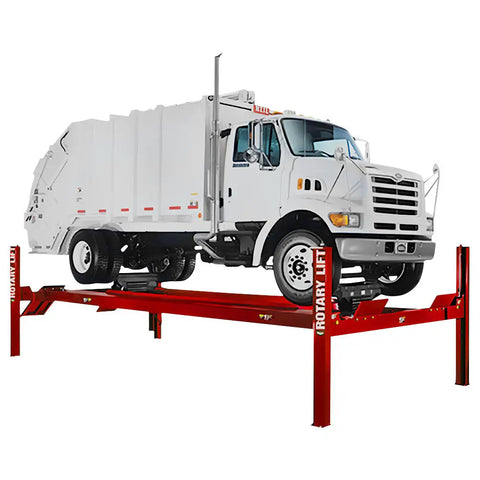

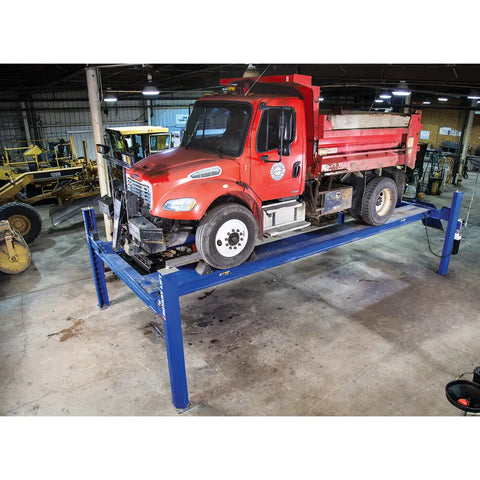

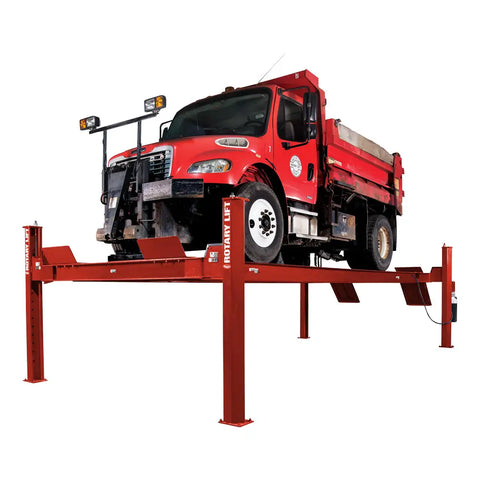

Rotary 30K Four Post Lift for Heavy Duty Truck - SM30
- SKU: RTY-SM30-BL From $33,495.00
Part No: RTY-SM30-BL
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Rotary 30,000 lbs Four Post Lift. Perfect solution for Ford, GM, and Dodge mid- and heavy-duty trucks. Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts easily handle cars, vans, trucks – even light and medium-duty commercial vehicles. Rotary four-post lifts are the right choice for maximum productivity if you service a wide variety of vehicles.
- Cylinder located under the runway
- Dual-function Sentinel Lock™ System
- Internal airline
- Adjustable latch bars
- ALI Gold Certified (SM30N0-X)
Specs:Max. Wheelbase: 235in
Length Overall: 25ft 8-1/8in
Between Columns: 249in
Width Overall: 12ft 4-13/16in
Inside Columns: 132in
Height of Columns: 7ft 3/4in
Width of Runways: 24in
Height of Runways: 8-3/8in
Width Between Runways (min.): 41in
Width Between Runways (max.): 48in
Lifting Capacity: 30,000 lbs.
Motor: 4 HP
Voltage Single Phase: 208v-230v
Time of Full Rise: 105 seconds
Min. Bay Size: 16ftx30ft
Avail. Color: Blue, Red
Optional Accessories:FC5663YL - Removable Work Step
FA5700, TechLight4 LED - These 50-inch lights (4) illuminate hard-to-reach areas.
FC5760-14, Internal Air Line Kit - This kit will allow the Rolling Jacks to have continual air and not require an airline with quick disconnections.
FC5967B, Oil Drain Pan - This low-profile rolling drain pan is perfect for catching spills and leaks.
FC5781-7, Extended Ramp Chocks - These chocks provide an extra 33in of ramp length, reducing the ramp-up angle and making loading a snap.
FC5780-3, Additional ramp chocks! Ramps measure 40in, and you can turn your lift into a drive-thru bay operation with just two. For SM300-100 Series Lifts
RJ150BK, Rolling Jack - This rolling jack has a capacity of 15,000 lbs and is air/oil operated. It comes with flip-up adapters for your convenience.
Wheel Lift: the perfect solution for anyone looking to remove and position heavy wheels and tires weighing up to 500 pounds
- MW-200 - 200 lbs Capacity
- MW-500 - 500 lbs Capacity
