Sunex Short Bottle Jack
With 12 and 20 ton capacity, Sunex Tool's short bottle jack provides the same abilities as lower capacity bottle jacks with the added support of up to 20 tons. Support larger vehicles such as heavy-duty trucks, farm equipment, building construction, mining, mobile home setup and more.
- Used for same applications for the lower capacity bottle jacks but also heavy duty trucks, farm equipment, building construction, mining, mobile home setup, oil field and power sources for manufacturer feets products.
- The ductile iron base for added strength.
- Electrostatic paint for rust prevention.
- Heat treated extension screw increases low height to get full use of ram travel.
- Hydraulic bypass system prevents overextension of ram.
- Include a grab handle for carrying and positioning purposes.

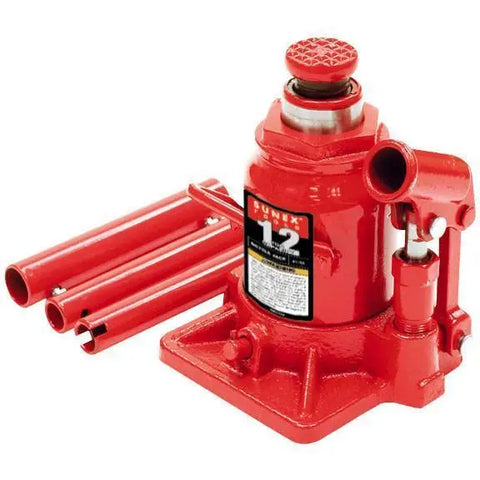

Base: 5.15in x 5.5in
Capacity: 12 Tons
Extension Screw Travel: 1.75in
Low Height: 6in
Max Height: 11.5in
Ram Travel: 3.75in

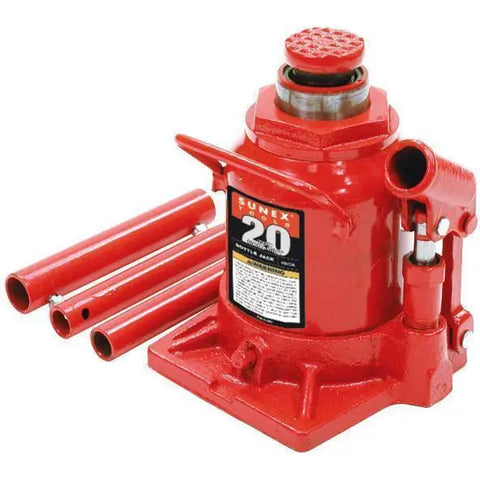

Base: 6.1in x 6.25in
Capacity: 20 Ton
Extension Screw Travel: 1.37in
Low Height: 6.62in
Max Height: 11.87in
Ram Travel: 3.87in
