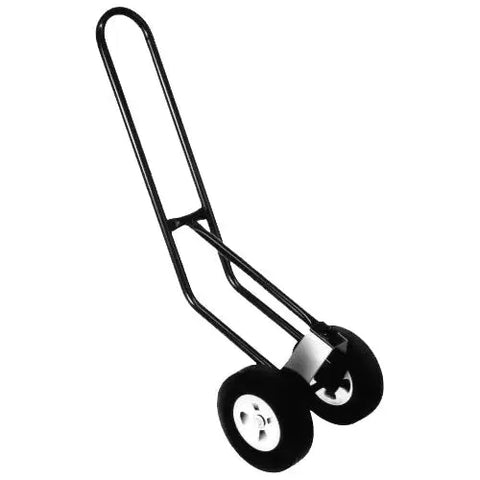

AA Steel Tote Jack (10 in Ball Bearing Wheels)
Part No: 71-117
Use this durable premium-quality Tote Jack to lift and move your Series 71-110 and 71-112 Racks.
Construction: One-piece all welded assembly. Handle/brace sub-assembly is 1” OD x 18 gauge welded steel tubing, undercarriage is 10 gauge brake-formed steel with welded tubular axle cover and machined steel Lift Pin. Lift Pin has a machine-tapered pin portion for easy engagement and a flat bearing surface to support the mating rack’s Lift Bracket without binding.
- All steel welded construction.
- Gloss black weather-resistant baked enamel finish.
- Extra-heavy-duty 10in ball bearing wheels.
Working Height (Lift Pin): 13-1/2in
Working Height (Top Handle): 27in
Axle: 5/8in diameter solid steel bar, zinc plated.
Wheels: 10in OD x 2.75in extra-heavy-duty rubber tires, mounted on high impact polyolefin wheel hubs fitted with pre-greased sealed ball bearings.
Finish: Gloss black exterior baked enamel finish
