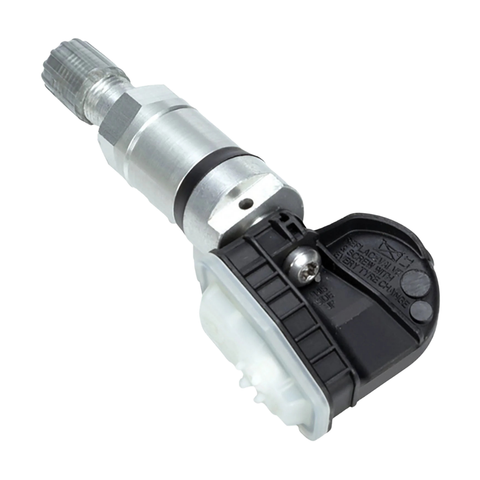

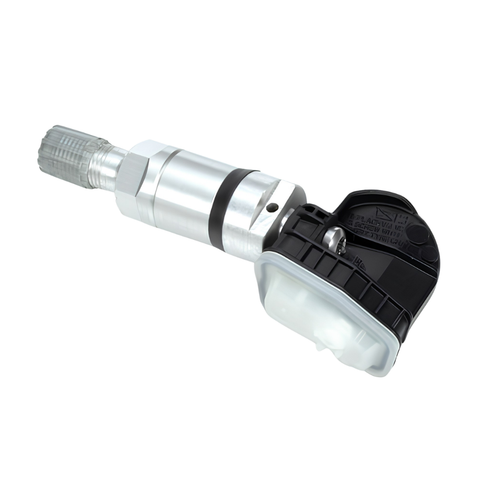

Schrader 29212 OER TPMS Sensor, 315 MHz Clamp-In (Ea.)
Schrader 29212 OER TPMS Sensor, 315 MHz Clamp-In (Ea.)
Shipping Estimate
Ships in 1-3 Business Days
Shipping times vary.
Shipping times vary.
Part No: SB-29212
SHIPPING INFO
Shipping Estimate
Ships in 1-3 Business Days
Shipping times vary.
Shipping times vary.
ACCESSORIES
Related Categories:
Schrader Bridgeport
Shop Supplies
TPMS Service
TPMS Universal Sensors
PRODUCT INFO
Schrader Bridgeport 29212 is a 315 MHz direct-fit OER tire pressure monitoring system sensor for select compatible vehicles. It uses an aluminum clamp-in valve, arrives pre-programmed, and is sold as one sensor assembly. Designed as a 1-for-1 OE replacement sensor, it supports OE fit, form, and function for the applications listed below.
Features:
- Direct-fit OER tire pressure monitoring system sensor
- 315 MHz operating frequency
- Aluminum clamp-in valve configuration
- Pre-programmed and non-programmable
- Designed as a 1-for-1 vehicle-specific replacement
- Wheel-mounted direct TPMS sensor
- Mounting hardware supplied
Specs:
Part No.: 29212Product Type: OER TPMS Sensor
Frequency: 315 MHz
Monitor Type: Direct
Mounting Method: Clamp-In
Mounting Location: Wheel
Programming: Pre-Programmed
Programmable: No
Qty: Ea.
Valve Material: Aluminum
Valve Color: Silver
Valve Core Material: Nickel-Plated Brass
Housing Material: Plastic
Max Pressure: 102 psi
Recommended Nut Torque: 71 in-lb / 8 N·m
Power Source: Battery
UPC: 00651001221491
Supersedes: 20158
Application:
Replacement of compatible direct TPMS wheel sensors in supported vehicle applicationsVehicle-specific 1-for-1 OER sensor for compatible make, model, and year applications
Fitment:
Buick: Allure 2006-2008, Enclave 2008-2015, LaCrosse 2005-2008, Lucerne 2010-2011
Cadillac: CTS 2009-2015, DTS 2006, Escalade 2007-2011, Escalade ESV 2006-2011, Escalade EXT 2006-2011, STS 2009
Chevrolet: Avalanche 2007-2011, Camaro 2011-2015, Caprice 2011-2013, Cobalt 2008-2010, Corvette 2010-2013, Equinox 2005-2012, Express 1500 2008-2009, Express 2500 2008-2009, Express 3500 2008-2009, Express 4500 2009, HHR 2007-2011, Impala 2006-2007 and 2010-2013, Impala Limited 2014-2016, Malibu 2007-2008 and 2010-2012, Monte Carlo 2006-2007, Silverado 1500 2006-2011, Silverado 1500 Classic 2007, Silverado 2500 2007, Silverado 2500 HD 2007, Silverado 2500 HD Classic 2007, Silverado 3500 2007, Silverado 3500 HD 2007, Suburban 1500 2007-2011, Suburban 2500 2007, Tahoe 2007-2011, Traverse 2009-2015, Uplander 2005-2009
GMC: Acadia 2007-2015, Savana 1500 2002-2009, Savana 2500 2002-2009, Savana 3500 2002-2009, Savana 4500 2009, Sierra 2007, Sierra 1500 2007-2011, Sierra 1500 Classic 2007, Sierra 2500 HD 2007, Sierra 2500 HD Classic 2007, Sierra 3500 HD 2007, Terrain 2010-2012, Yukon 2007-2011, Yukon XL 1500 2006-2011, Yukon XL 2500 2006-2007
Pontiac: G5 2007-2008, G6 2007-2008, Grand Prix 2006-2008, Montana 2004-2009, Solstice 2006-2009, Torrent 2007-2009
Saturn: Aura 2007-2008, Outlook 2007-2010, Sky 2007-2010
Suzuki: XL-7 2006-2009
Includes:
Aluminum clamp-in valve stemInstalled nickel-plated brass valve core
Installed plastic valve cap
Aluminum nut
Grommet
Mounting hardware
