PRODUCT INFO

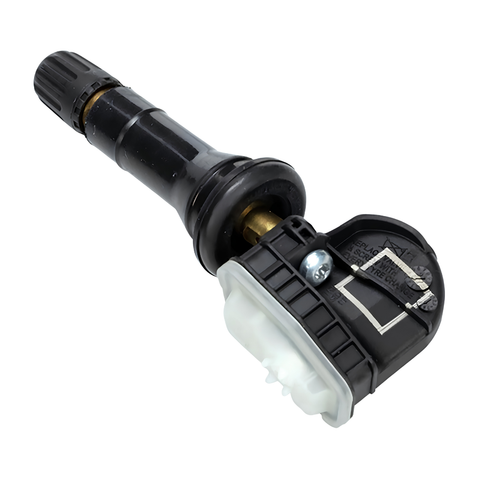

Schrader Bridgeport 20452 is a direct-fit OE Replacement tire pressure monitoring system sensor with a 315 MHz snap-in rubber valve. The sensor is pre-programmed and non-programmable for supported Ford, Lincoln, and Mazda vehicle applications, with Pressure by Location functionality. No sensor programming is required before installation, but the applicable vehicle-specific OE relearn procedure is required after installation. Sold individually and replaces Schrader OER 20280.
Features:
- Direct-fit OE Replacement TPMS sensor
- 315 MHz operating frequency
- Snap-in rubber valve configuration
- Pressure by Location functionality
- Pre-programmed and non-programmable
- No sensor programming required before installation
- Vehicle-specific OE relearn procedure required after installation
- OE fit, form, and function for supported applications
Specs:
Part No.: 20452Product Type: OE Replacement TPMS Sensor
Product Configuration: Single Replacement Component
Replaces: 20280
UPC: 651001217869
Qty: Ea.
Frequency: 315 MHz
Valve Type: Snap-In Rubber Valve
Monitor Type: Direct
Programming: Pre-Programmed, Non-Programmable
Mounting Location: Wheel
Pressure by Location: Yes
Power Source: Battery
Real-Time Pressure Signal Transmission: Yes
Mounting Screw Torque: 11.5 in-lbs (1.3 N·m)
Valve Core Torque: 3.5 in-lbs (0.4 N·m)
Housing Material: Plastic
Valve Material: Rubber
Valve Core Material: Nickel-Plated
Valve Color: Black
Application:
Direct-fit TPMS replacement for supported Ford, Lincoln, and Mazda vehicle applications requiring a 315 MHz snap-in rubber-valve sensor.Fitment:
Ford: Bronco 2020-2021, EcoSport 2017-2020, Edge 2015-2020, Expedition 2018-2020, Explorer 2016-2022, F-150 2015-2019, F-250 Super Duty 2017-2020, F-350 Super Duty 2018-2020, Focus 2019, Fusion 2017-2020, Mustang 2015-2020, Mustang Shelby GT500 2012, Ranger 2019-2020, Shelby GT500 2016-2017, Transit Connect 2018-2020
Lincoln: Continental 2017-2020, Mark LT 2015-2016, MKC 2018-2019, MKX 2015-2019, MKZ 2017-2020, Nautilus 2019-2020, Navigator 2018-2020
Mazda: BT50 Pickup 2020-2022
Includes:
Rubber snap-in valve stemValve cap
Mounting hardware
