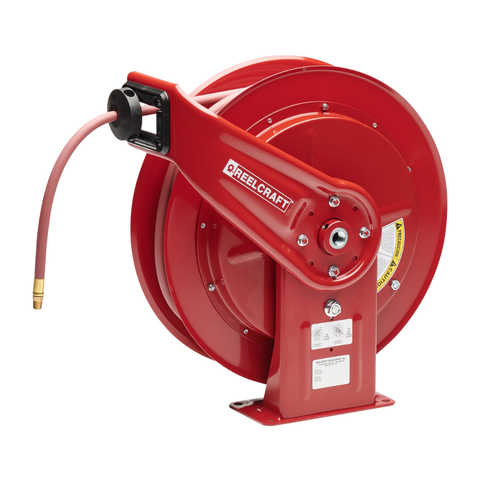

Reelcraft HD76100 OLP 3/8" x 100' Heavy Duty Air/Water Hose Reel
Made in USA
Reelcraft HD76100 OLP 3/8" x 100' Heavy Duty Air/Water Hose Reel
Part No: RC-HD76100-OLP
SHIPPING INFO
ACCESSORIES
Related Categories:
Air Tools Parts & Acc
Hose
Mobile Service
Reelcraft
Shop Tools
PRODUCT INFO
The Reelcraft HD76100 OLP is a Series HD70000 heavy duty spring-retractable hose reel supplied with a 3/8 in. x 100 ft. PVC hose and adjustable bumper stop. Designed for low-pressure air or water service, the supplied hose is rated to 300 psi at 70°F and up to 150°F. A seven-position guide arm supports top-, side-, or bottom-wind hose dispensing for flexible installation.
Features:
- Heavy duty spring-retractable hose reel
- 3/8 in. x 100 ft. PVC hose for air or water service
- Seven-position adjustable guide arm
- Top-, side-, or bottom-wind hose dispensing
- All-steel reel construction with baked-on powder-coat finish
- 7-gauge steel base plate and upright
- One-piece guide roller with stainless-steel pins
- Containerized drive spring for easier maintenance handling
- Die-cast aluminum hub with two sealed ball bearings
- Redesigned latching mechanism for longer latch-component service life
- Made in the USA
Specs:
Part No.: HD76100 OLPSeries: HD70000
Product Type: Heavy Duty Spring-Retractable Hose Reel
Package Configuration: Model w/ Hose and Bumper
Hose I.D.: 3/8 in.
Hose O.D.: 0.600 in.
Hose Length: 100 ft.
Hose Material: PVC
Hose Service: Air or Water
Max Working Pressure: 300 psi at 70°F
Max Temperature: 150°F
Hose End: 1/4 in. NPT(M)
Reel Inlet: 1/2 in. NPT(F)
Reel Outlet: 1/2 in. NPT(F)
Swivel Assembly Material: Steel
Swivel Seal: Buna
Internal Fluid Path Material: Steel
Base Plate and Upright: 7-Gauge Steel
Guide Arm: 11-Gauge Steel
Spool: 16-Gauge Steel
Hub: Die-Cast Aluminum
Finish: Baked-On Powder Coat
Shipping Weight: 75 lb
Carton Dimensions: 21.25 x 13.5 x 22.25 in.
Mounting Holes: Four, 0.516 in. Diameter
UPC: 699567017820
Country of Manufacture: USA
Application:
For low-pressure air or water hose service requiring a heavy duty spring-retractable reel with 100 ft. hose reach.Fitment:
Mounting: Floor, wall, or ceiling
Hose Dispensing: Top-wind, side-wind, or bottom-wind
Guide Arm Positions: Seven
Max Installation Height: 16 ft. unless otherwise specified when ordered
Includes:
3/8 in. x 100 ft. PVC air/water hoseAdjustable bumper stop
