Norco Bottle Jack (2-8 Ton) (Ea)

Automotive - Norco 2 Ton Capacity Bottle Jack
application carCar
application light truckLight Truck
application earthmoverEarth Mover
application heavy duty truckHeavy Truck
application tractorTractor
Truck

Norco Bottle Jack (2-8 Ton) (Ea)

  • Capacity, Low, High
    SKU
    Price
    Quantity
  • NOR-76502B
    77.32
  • NOR-76503B
    86.08
  • NOR-76505B
    100.54
  • NOR-76508B
    115.08
SHIPPING INFO
ACCESSORIES


PRODUCT INFO

Norco Bottle Jack is for heavy-duty truck, agriculture, construction, mining, mobile home, oil field, automotive, and marine applications where lifting, pushing, spreading, bending, pressing, or straightening are required.


Features:

  • Two-piece zinc plated handle.
  • Prevent rust with "Parkerized" pump piston, ram and extension screw.
  • No leak "Uniweld" construction.
  • 50% safety overload factor.
  • State of the art design reduces repair time.
  • Longer wear life due to internally machined oil passages, smooth bearing surfaces, and close tolerances.
  • Lightweight forged base provides more steel only where strength is required.
  • The heavy-duty extension screw and release valve were designed to eliminate parts and reduce the chances of breakage and excessive wear.
  • Safety oil by-pass system prevents the ram from being overextended and causing damage to the cylinder.

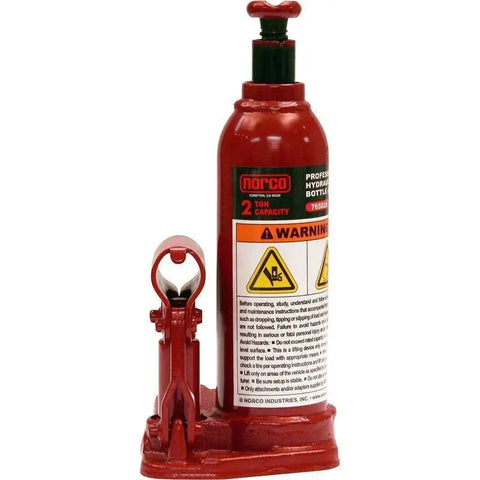

76502B
Capacity: 2 Ton
Low Lift Height 7.12in
High Lift Height 14.5in
Stroke 4.93in
Screw Extension 2.43in
Base Size 3.5in x 4.12in

76503B
Capacity: 3 Ton
Low Lift Height: 7.5in
High Lift Height: 15.5625in
Stroke: 5.25in
Screw Extension: 2.8125in
Base Size: 4in x 4.5625in
Carry Handle: No
Shipping Weight: 8 lbs.

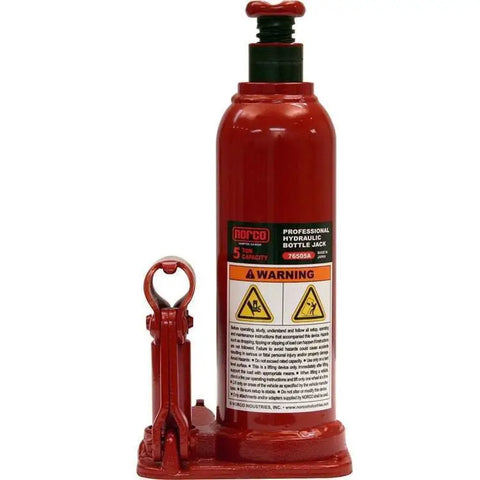

76505A
Capacity: 5 Ton
Low Lift Height 9.06in
High Lift Height 18.87in
Stroke 6.68in
Screw Extension 3.12in
Base Size 4.87in x 4.87

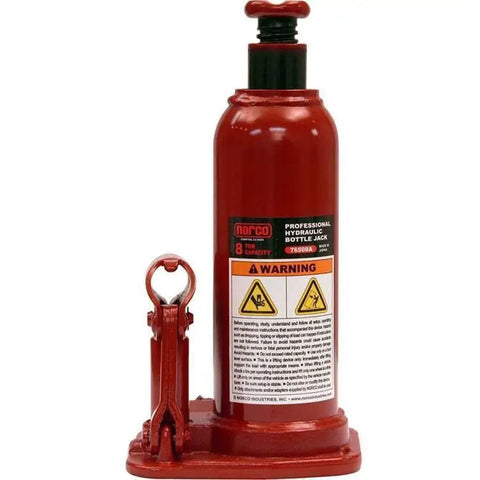

NOR-76508A
Capacity: 8 Ton
Low Lift Height 9.06in
High Lift Height 18.75in
Stroke 6.5in
Screw Extension 3.18in
Base Size 5.375in x 5.125in

Application:

Truck
Agriculture
Construction
Mining
Mobile Home
Oil Field
Automotive
Marine
