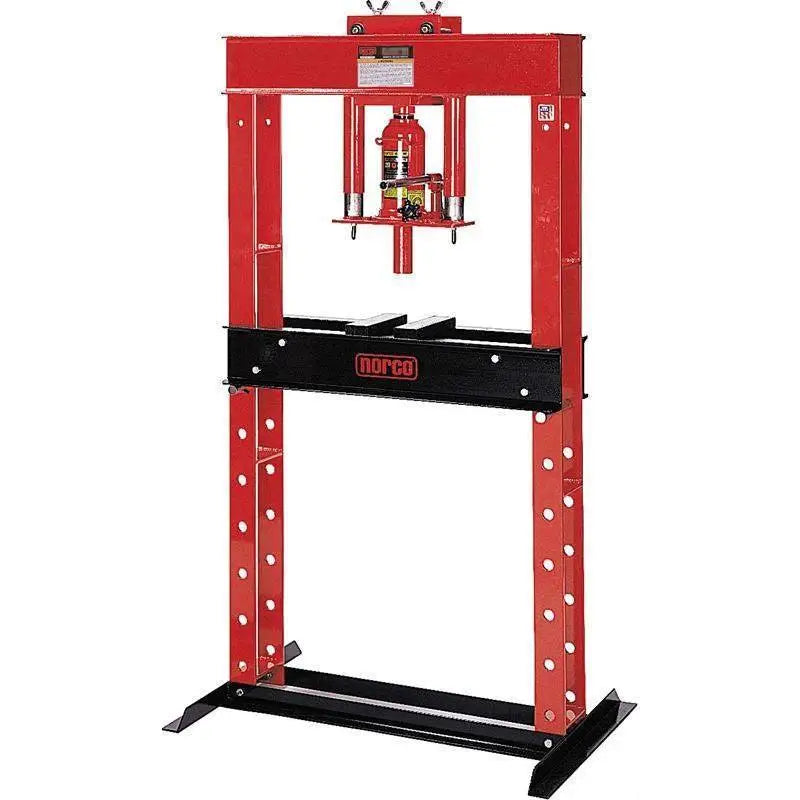

Norco 12 Ton Hand Pump Shop Press - 78013B

Shop Equipments - Norco 12 Ton Capacity Hand Pump Operated Shop Press

Norco 12 Ton Hand Pump Shop Press - 78013B

  • SKU: NOR-78013B $1,190.17

Part No: NOR-78013B

SHIPPING INFO
ACCESSORIES


PRODUCT INFO

Norco 12-1/2 Ton capacity hand pump operated shop press. Straightening, bending & pressing. Removing & installing gears, bearings & bushings.


Features:

  • Welded frame, fully assembled, tested, and ready to put to work.
  • Manual pump power unit with "Parkerized" pump piston, ram and extension screw to inhibit rust from entering the hydraulic system.
  • Pair of bed plates included.
  • Shielded heavy duty ram return springs.
  • Power unit is bearing mounted for horizontal movement on head channel.
  • Zero distortion, heavy duty structural steel frame.
  • Optional equipment below can be used on model 78022D press. Model 78033 arbor plates and model 78032 bearing puller below can be used on model 78013A press.
  • Made in the USA.

Specs:

Ram Travel: 5.875in
Min. Throat Height: 5in
Max. Throat Height: 38.25in
Throat Width: 25in
Bed Height Adj.: 8 x 4.75in
Between Uprights: 5in
Between Bed Rails: 6in
Base Width: 34in
Base Depth: 28in
Overall Height: 70.625in
Shipping Weight: 266 lbs.

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
