Tire Inflation - Branick Nitrogen Generator 150-175psi Range (Single Membrane)

made in usa

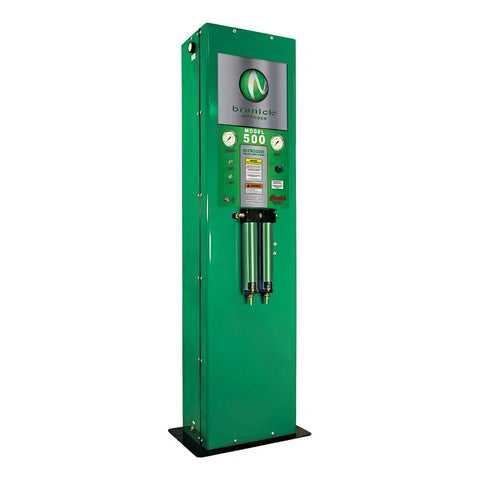

Branick Nitrogen Generator 150-175psi Range (Single Membrane)

Part No:

  • 7,50330
  • Save $ 200


The Model 500 is the 'backbone' of the Branick line of nitrogen generators, and still our most popular. With the capability to handle high volume passenger and light truck facilities as well as light volume commercial truck applications, it's a real 'workhorse' without straining your air compressor. This tower unit with 7.1 SCFM of nitrogen output is the best value in the Branick line when you consider cost per scfm output of nitrogen.

Features:

  • Made in USA

Product Information

  • Air Input: 13.8 scfm @ 160 psi / 75 Deg. F
  • Air Input Range: 100 psi to 175 psi
  • N2 Output: 7.1 scfm
  • N2 Purity: 95% to 99.9%
  • N2 Dewpoint: -70 Deg. F
  • Operation Temp: 40 Deg. to 150 Deg. F
  • Inlet Port: 3/8 NPT
  • Outlet Port: 3/8 NPT
  • N2 Purity Port: Yes
  • Auto Shut-Off: Yes
  • Pre-Filters: 2
  • Maint. Indicator (filters): Yes
  • N2 Outlet Press. Gauge: Yes
  • Dimensions: W 19 in x L 19 in x H 72 in 1
