LMC Multi-Use Tire Vulcanizer

Tire Vulcanizers - LMC Multi-Use Tire Vulcanizer
application tractorTractor

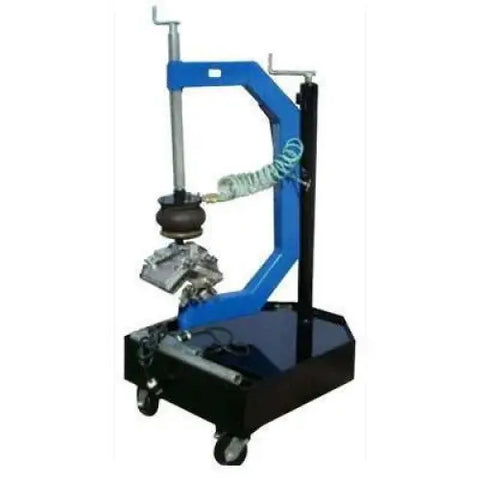

LMC Multi-Use Tire Vulcanizer

  • SKU: LMC-T004 $8,472.60
Build To Order Products are not built until a confirmed order.
Ships in 15-30 Business Days
Shipping times vary.

Part No: LMC-T004

SHIPPING INFO
Build To Order Products are not built until a confirmed order.
Ships in 15-30 Business Days
Shipping times vary.
ACCESSORIES
DOWNLOADS


PRODUCT INFO
The New Multiuse Tire Vulcanizer is the ideal size to handle tire repairs on light and medium construction equipment, agricultural tractors, and logging skidder, and miniing equipment. Plus it is the most economically priced vulcanizer of its size on the market, so you can make tire repairs for a fraction of the cost of a replacement tire.

Features:

  • Accommodates mid-range from 20.5 x 25 handling OTR sizes up to 29.5 x 35 and skidder tires up to 30.5 x 32.
  • Easy, one person operation, including quick adjust tightening device.
  • 8in x 11in inside and 8in x 15in outside Adjust-A-Plate contour plate system conforms to heating surface of tires contours.
  • Makes tread, shoulder, and sidewall repairs
  • Air-Actuator bag applies over 5000 lbs. pressure evenly over entire area.
  • Thermostatically controlled heat units to maintain optimum temperature.
  • Built in-five-hour timer shuts off heat units when curing cycle is complete
  • Wheeled cart provides maximum mobility
  • Available in 120 Volt (11 amps).
  • Shipped fully assembled

Product Information

  • Curing head Size: 8 in x 11 in, 8 in x 15 in
  • No. Curing Heads: 2
  • Throat Depth: 18 in
  • Throat Height: 32.5 in 1

Includes:

  • T227: Plunger
  • T228: Spring
  • T254: Frame
  • T255: Short Extension Shaft
  • T256: Medium Extension Shaft
  • T257: Long Extension Shaft
  • T258: Heat Unit (actuator side)
  • T259: Heat Unit (ext shaft side)
  • T260: Air actuator assembly
  • T261: Cart
  • T262: Casters
  • T263: Raise/Lower outer tube
  • T264: Handle
  • T265: Bearing
  • T266: Threaded Rod
  • T267: Telescoping assembly (complete)
  • T268: Control Panel (complete)
  • T269: Air Hose
  • T270: 9 in x 12 in x 1/2 in silicone rubbber pad
  • T271: 9 in x 18 in x 1/2 in silicone rubber pad
  • T272: 10 in x 12 in contoured silicone rubber pad
  • T286: Garlock Set 3pcs 8 in x 11 in and 3 pcs 8 in x 15 in
