LMC Model 1400 Tracotor Small Air Vulcanizer

Tire Vulcanizers - LMC Model 1400 Tracotor Small Air Vulcanizer
application tractorTractor

LMC Model 1400 Tracotor Small Air Vulcanizer

  • SKU: LMC-T018 $959.15
Build To Order Products are not built until a confirmed order.
Ships in 15-30 Business Days
Shipping times vary.

Part No: LMC-T018

SHIPPING INFO
Build To Order Products are not built until a confirmed order.
Ships in 15-30 Business Days
Shipping times vary.
ACCESSORIES
DOWNLOADS


PRODUCT INFO

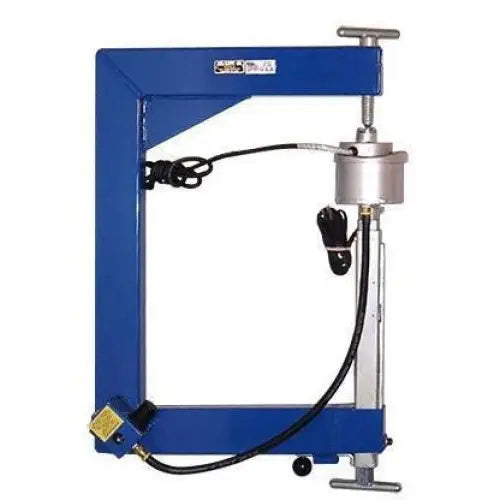

Model 1400 Tractor Small Air Vulcanizer

Features:

  • Air regulated pressure takes guess work out of how much pressure to apply. Flexible silicone.
  • Capable of curing a 3-1/2in spot or section repair plug in one cure.
  • Can be used in multiple cure fashion to achieve repairs larger than 3-1/2in .
  • Controlled temperature 4in dia. Heat pad conforms to tire contour and applies even pressure over entire repair area, capturing and curing repair rubber.
  • Not an air bag - this is a flexible silicone rubber heat pad contained in a cylinder and driven by air pressure.
  • Long life silicone rubber heat pad. Test units have exceeded 1000 hours of use.
  • Frame mounted air regulator set to operate to 65 lbs psi assures adequate even pressure throughout cure cycle. Regulator is protected by rugged frame bracket.
  • The perfect spotter for large tractor and small off-the-road tires, and also makes excellet truck repairs.
  • Available in 120 volt or 240 volt.

Product Information

  • Troat depth: 14-1/2 in
  • Troat height: 16 in 1

Includes:

  • T183: Model 1400 frame
  • T039: Upper swivel heat unit (3-5/16 in diameter)
  • T051: Silicone rubber flat heat pad (4 in diameter) with electrical connection.
  • T062: 4 in silicone rubber air seal
  • T065: Steel air cylinder with contoured lip
  • T184: Telescoping pressure screw assembly (lower)
  • T119: Air regulator (preset to 65 lbs.)
  • T120: Gauge for regulator
  • T071: Air hose from regulator to cylinder
  • T121: Detachable electric cord for heat pad
  • T115: Handwheel adjusting screw (upper)
  • T174: Nut for adjusting screw
  • T175: Compression spring
  • T176: Fiber rod
  • T123: Thermostat for 3 in HU
  • T124: Element for 3 in HU
