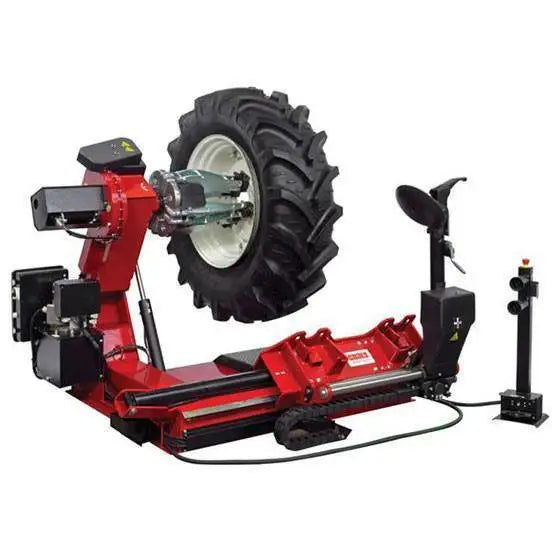

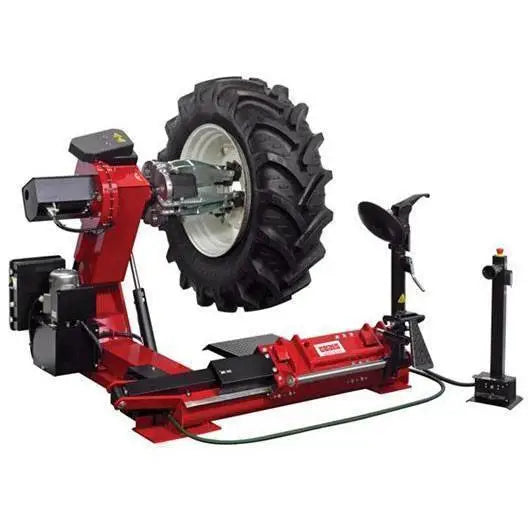

Coats CHD-9043 HD Truck Tire Changer

Tire Changer - Coats Heavy Duty Truck Tire Changer (14 In To 46 In Dia, 43 In Max Tire W)
application graderGrader
application heavy duty truckHeavy Truck
application tractorTractor
Truck

Coats CHD-9043 HD Truck Tire Changer

  • SKU: CHD-9041 $21,975.72

Part No: CHD-9041

SHIPPING INFO
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES
DOWNLOADS


PRODUCT INFO

The clear choice for high volume shops that deal with both a variety of applications and large wheel fitments.

9041: Standard version for low to medium volume shop

9043: Fully automated tool movement; Ideal for high volume shop (Discontinued)


Features:

  • Solid, single-piece frame for added capacity and dependability
  • Remote controlled, hydraulically operated tool arm saves operator effort and speeds tire-changing turnaround time
  • Handles rims from 14in to 46in / up to 56in with clamp extensions and tires up to 90.5in in diameter and 43in wide
  • Free Installation and Training

Specs:

Max. Tire Diameter: 90 in / 2300 mm
Max. Tire Width: 43 in / 1100 mm
Rim Diameter Range: 14 in -46 in / 47 in - 56 in with clamping extensions
Electric Specifications: 208-230VAC, 3ph, 60Hz, 15Amp
Hydraulic Motor Power: 2.0 HP / 1.5 kW
Chuck Rotation Motor Power: 1.7-2.4 HP / 1.3-1.8 kW
Max. Chuck Torque: 5262 ft/lbs / 3881 Nm
Clamping Power: 10,362 lbs / 4700 kg
Chuck Rotation Speed: 5-11 rpm
Max. Wheel Weight: 3500 lbs / 1600 kg
Acoustic Pressure: less than 70dBA
Single piece frame with solid floor-plate: Yes
Tool Arm Positioning: Remote operated
Tool Head Positioning: Manual
Max. Overall Dimension: 96.5 in x 85 in x 73 in
Weight with Standard Accessories: 1874 lbs / 850 kg.

Standard:
Large Double Tool
Large Tire Bar
Small Tire Bar
Single G-clamp / for steel wheels

Optional:
Alloy Tubeless Roller
Bead lifting guide bar for agricultural tires
Single G-clamp / for alloy wheels
Pair of G-clamps for bead loosening on tube tires with rim ring
Set of 4 clamping protectors for alloy wheels
Set of 4 clamping extensions 47 in -56 in
