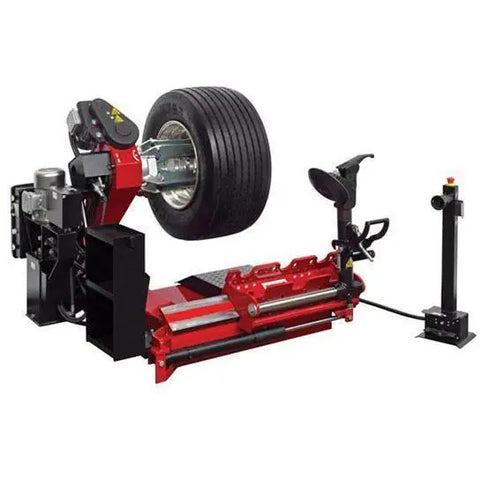

Coats Heavy Duty Truck Tire Changer (13 in To 27 in Dia)

Tire Changer - Coats Heavy Duty Truck Tire Changer (13 In To 27 In Dia)
Truck

Coats Heavy Duty Truck Tire Changer (13 in To 27 in Dia)

  • SKU: CHD-6330 $ 14,857.99

Part No: CHD-6330

SHIPPING INFO
SHIPPING INFO
Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES
DOWNLOADS


PRODUCT INFO
It's the most compact of the jaw-style clamping machines available today. This easy-to-learn model is designed for shops with moderate to high volume with a wide range of applications.

Features:

  • Four-jaw chuck allows fast and easy clamping of virtually all rim styles, including de-mountable, reverse disc, standard disc, and off-road style wheels
  • Floating jaws match wheel contours for excellent grip and safety
  • Solid, single-piece frame for added capacity and reliability
  • Portable wired control unit lets you work from the best angle at all times
  • Handles rims from 13in to 27in and tires up to 63in in diameter and 30.5in wide
  • Free Installation and Training

Product Information

  • Max. Tire Diameter: 63 in (1600 mm)
  • Max. Tire Width: 30.5 in (780 mm)
  • Rim Diameter Range: 13 in -27 in
  • Electric Specifications: 208-230VAC, 3ph, 60Hz, 15Amp
  • Hydraulic Motor Power: 2.0 HP (1.5 kW)
  • Chuck Rotation Motor Power: 1.5-2 HP (1.1-1.5 kW)
  • Max. Chuck Torque: 4816 ft/lbs (3552 Nm)
  • Clamping Power: 7407 lbs (3360 kg)
  • Chuck Rotation Speed: 8-16 rpm
  • Max. Wheel Weight: 3300 lbs (1500 kg)
  • Acoustic Pressure: lessthan 70dBA
  • Single piece frame with solid floor-plate: Yes
  • Tool Arm Positioning: Manual
  • Tool Head Positioning: Manual
  • Max. Overall Dimension: 69 in (w) x 68.5 in (d) x 50 in (h)
  • Weight with Standard Accessories: 1245 lbs (565 kg) 1

Standard:

  • Small Double Tool
  • Large Tire Bar
  • Small Tire Bar
  • Single G-clamp (for steel wheels)

Optional:

  • Plastic Tubeless Roller
  • Bead lifting guide bar for agricultural tires
  • Single G-clamp (for alloy wheels
  • Set of 4 clamping protectors for alloy wheels
