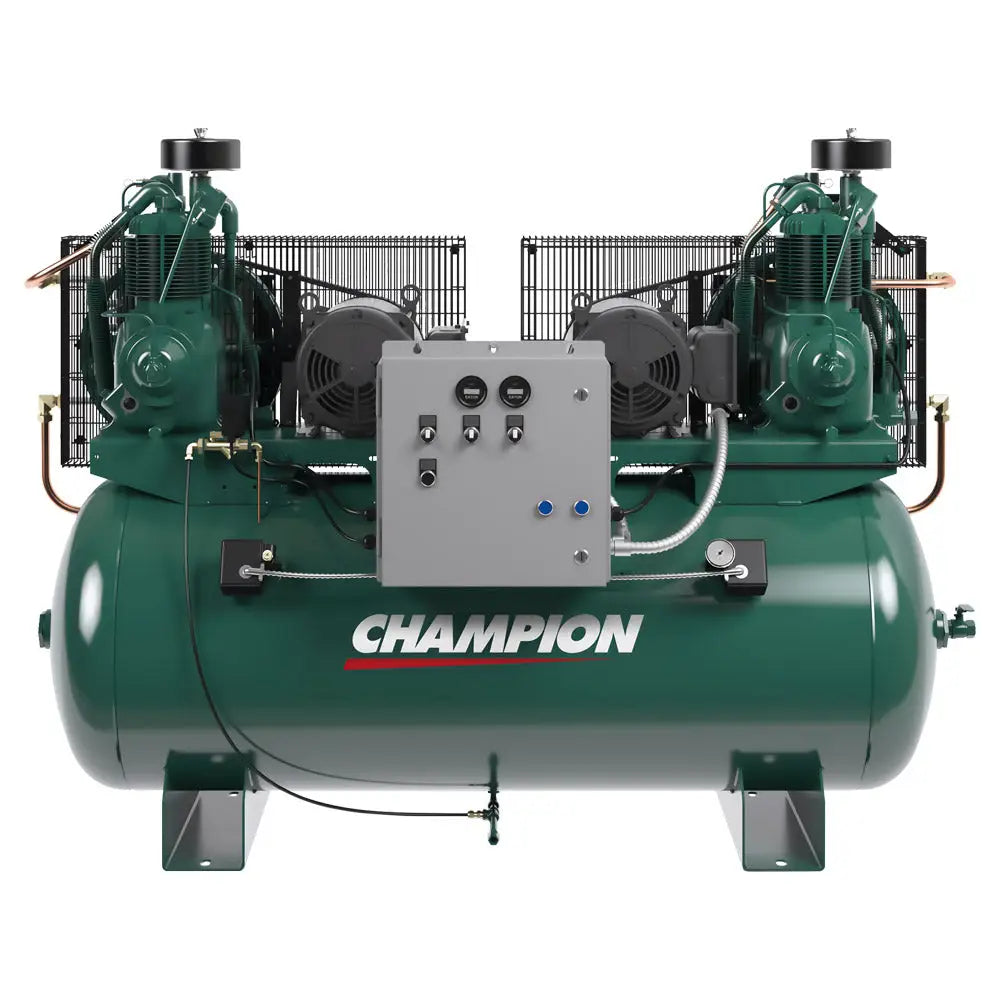

Champion Duplex Air Compressor Model HR7DF-25

Air Compressor - Champion Duplex Air Compressor Model HR7DF-25

Champion Duplex Air Compressor Model HR7DF-25

  • SKU: HR7DF-25 $9,949.70

Part No: HR7DF-25

SHIPPING INFO
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES
DOWNLOADS


PRODUCT INFO

Splash Lubricated, R-Series

Champion R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value. This compressor pump comes with a 5-year pro-rated warranty. As a result, R-series compressors offer long, trouble-free service with unbridled operating efficiency.

  • 1 ½ - 35 hp
  • Up to 175 psig
  • 9.7 - 202 acfm at 175 psig on electric driven units
  • Gas and diesel engine drive models available
  • Tank or Base Mounted, Simplex & Duplex Models
  • Single & Two Stage Splash-Lubricated Pumps
  • Prorated 5-Year Warranty on Pump
  • Factory filled with ChampLub lubricant

Specs:
Model: HR7DF-25
Motor HP: 7½ (2)
Tank Cap Gal.: 250
Pump Comp Model: R-15B
PL-Series CBDPLA: HPL7DF-25
Pump Comp Model: PL-15A
L x W x H Dimensions Inches: 87½ x 32¾ x 50¼
Approx. Ship Wt. lbs.: 1485
132 PSI Rating* RPM: 990
132 PSI Rating* CFM Displ.: 57.4
132 PSI Rating* CFM Del'y: 47.8
182 PSI Rating* RPM: 990
182 PSI Rating* CFM Displ.: 57.4
182 PSI Rating* CFM Del'y: 46.2
257 PSI Rating* RPM: 870
257 PSI Rating* CFM Displ.: 51
257 PSI Rating* CFM Del'y: 36.4

Warranty:

1 year parts
1 year labor
3 year Compressor Pump (Defect in material and workmanship)
