Air Compressor - Champion Duplex Air Compressor Model HR7DF-12

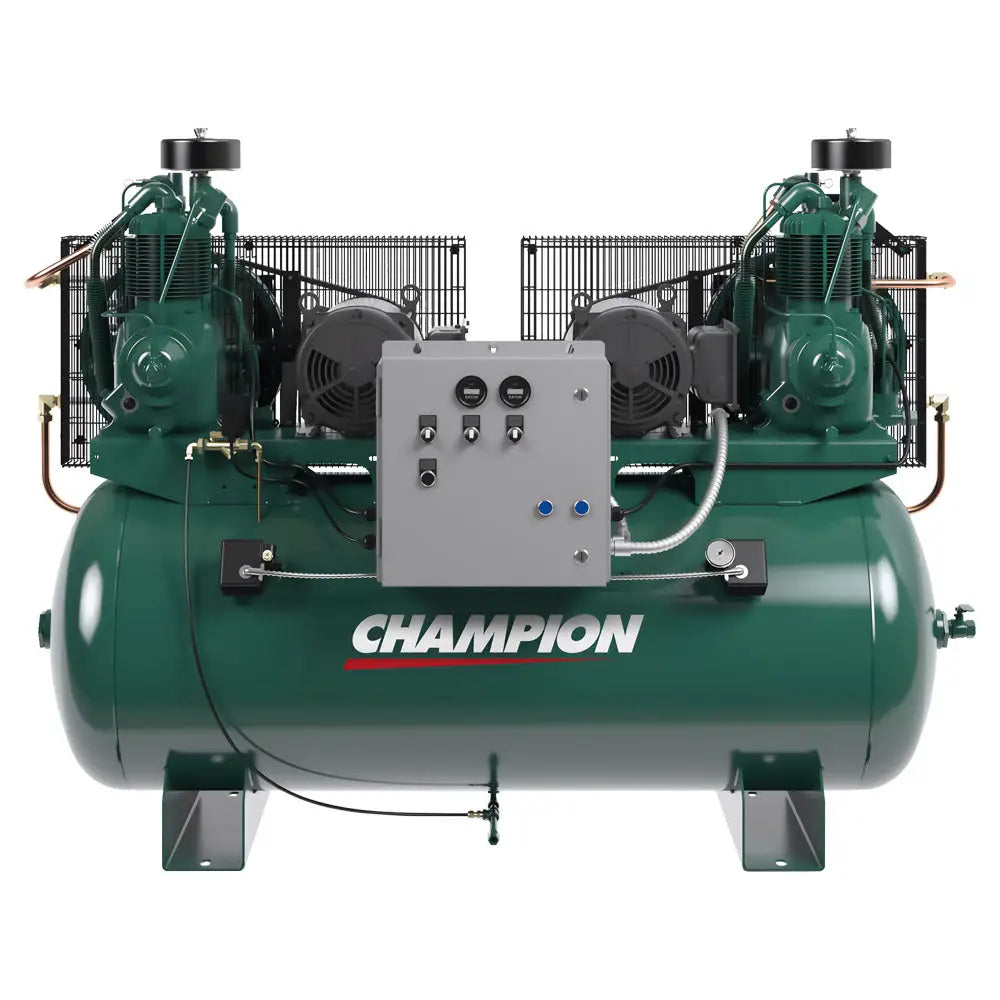

Champion Duplex Air Compressor Model HR7DF-12

  • $ 5,711.55
  • Save $ 285.58
Factory Direct
Ships in 3-5 Business Days
Shipping times vary.

Part No: HR7DF-12

Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


Splash Lubricated, R-Series

Champion R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value. This compressor pump comes with a 5-year pro-rated warranty. As a result, R-series compressors offer long, trouble-free service with unbridled operating efficiency.

  • 1 ½ - 35 hp
  • Up to 175 psig
  • 9.7 - 202 acfm at 175 psig on electric driven units
  • Gas and diesel engine drive models available
  • Tank or Base Mounted, Simplex & Duplex Models
  • Single & Two Stage Splash-Lubricated Pumps
  • Prorated 5-Year Warranty on Pump
  • Factory filled with ChampLub lubricant

Specs:
Model: HR7DF-12
Motor HP: 7½ (2)
Tank Cap Gal.: 120
Pump Comp Model: R-15B
PL-Series CBDPLA: HPL7DF-12
Pump Comp Model: PL-15A
L x W x H Dimensions Inches: 70½ x 28 x 55¼
Approx. Ship Wt. lbs.: 1150
131 PSI Rating* RPM: 990
131 PSI Rating* CFM Displ.: 57.4
131 PSI Rating* CFM Del'y: 47.8
181 PSI Rating* RPM: 990
181 PSI Rating* CFM Displ.: 57.4
181 PSI Rating* CFM Del'y: 46.2
256 PSI Rating* RPM: 870
256 PSI Rating* CFM Displ.: 51
256 PSI Rating* CFM Del'y: 36.4
