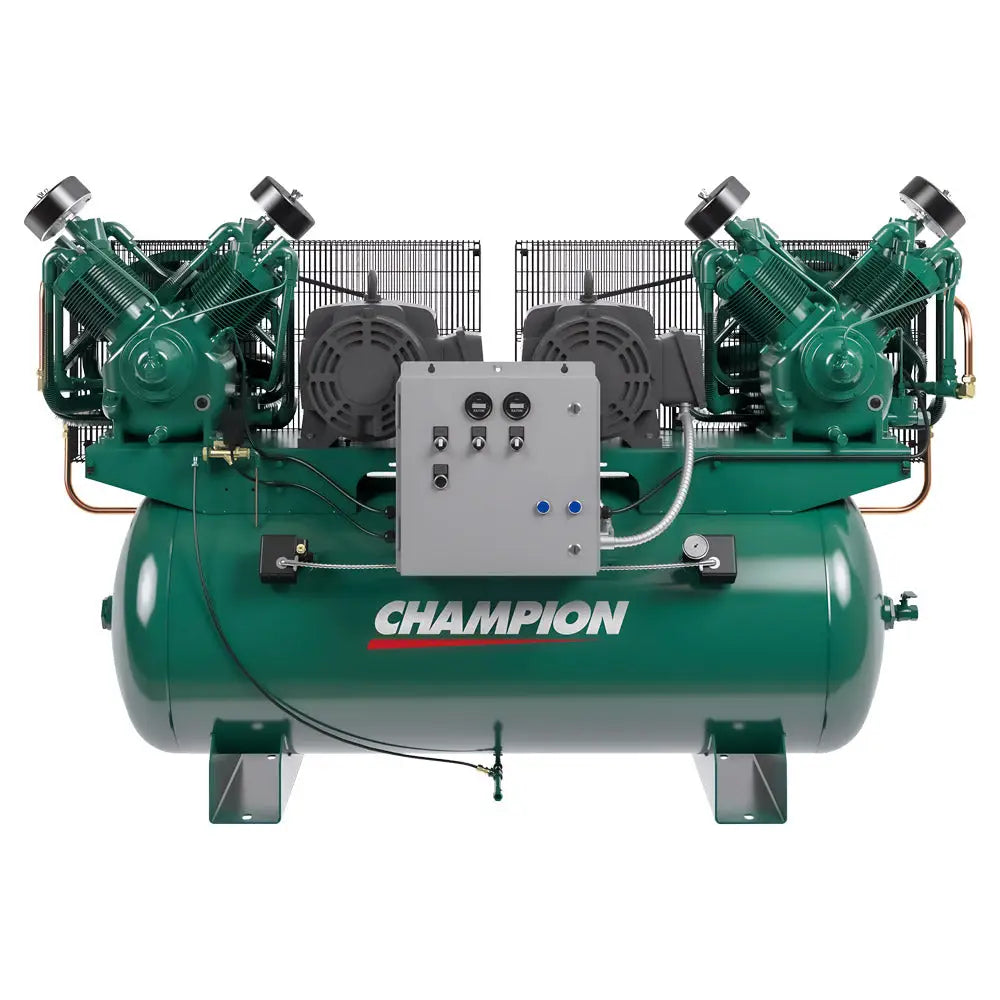

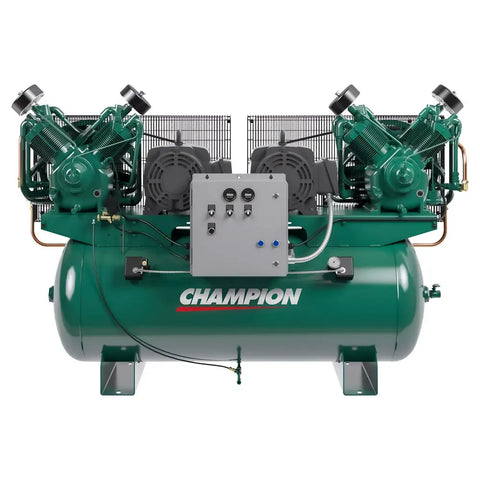

Champion Duplex Air Compressor Model HR15DF-12

Air Compressor - Champion Duplex Air Compressor Model HR15DF-12

Champion Duplex Air Compressor Model HR15DF-12

  • SKU: HR15DF-12 $ 9,694.11

Part No: HR15DF-12

  Price Match
We offer price matching. Just click the 'Price Match' button and our team will do our best to match the price for you.
Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


Splash Lubricated, R-Series

Champion R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value. This compressor pump comes with a 5-year pro-rated warranty. As a result, R-series compressors offer long, trouble-free service with unbridled operating efficiency.

  • 1 ½ - 35 hp
  • Up to 175 psig
  • 9.7 - 202 acfm at 175 psig on electric driven units
  • Gas and diesel engine drive models available
  • Tank or Base Mounted, Simplex & Duplex Models
  • Single & Two Stage Splash-Lubricated Pumps
  • Prorated 5-Year Warranty on Pump
  • Factory filled with ChampLub lubricant

Model: HR15DF-12
Motor HP: 15 (2)
Tank Cap Gal.: 120
Pump Comp Model: R-30D
PL-Series CBDPLA: HPL15DF-12
Pump Comp Model: PL-30A
L x W x H Dimensions Inches: 91¾ x 26½ x 48¾
Approx. Ship Wt. lbs.: 1860
137 PSI Rating* RPM: 1045
137 PSI Rating* CFM Displ.: 121.8
137 PSI Rating* CFM Del'y: 100.4
187 PSI Rating* RPM: 1045
187 PSI Rating* CFM Displ.: 127
187 PSI Rating* CFM Del'y: 98
262 PSI Rating* RPM: 900
262 PSI Rating* CFM Displ.: 105
262 PSI Rating* CFM Del'y: 85.2
