Champion Duplex Air Compressor Model HR10D-12

Air Compressor - Champion Duplex Air Compressor Model HR10D-12

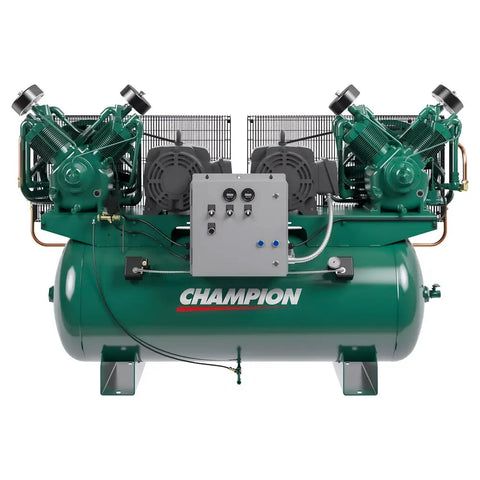

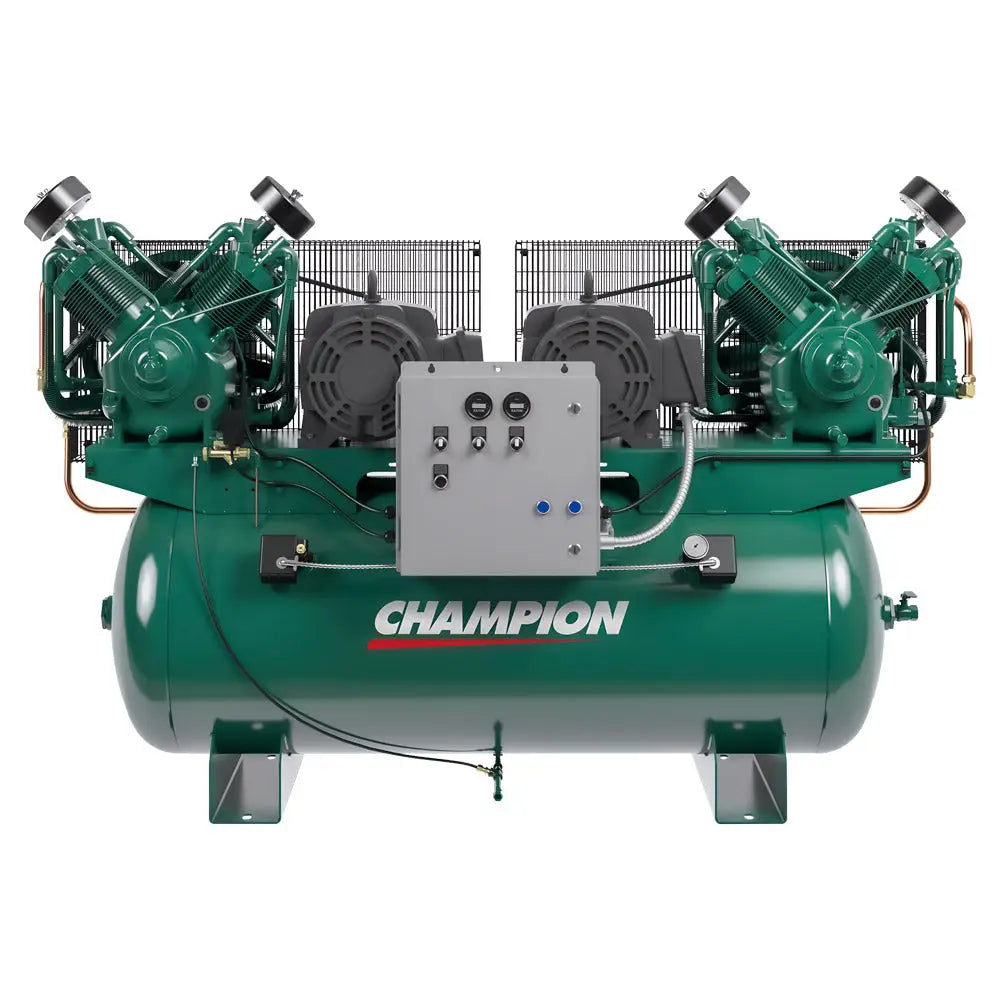

Champion Duplex Air Compressor Model HR10D-12

  • SKU: HR10D-12 $7,705.00
For Business Financing from Learn More

Part No: HR10D-12

Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


Splash Lubricated, R-Series

Champion R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value. This compressor pump comes with a 5-year pro-rated warranty. As a result, R-series compressors offer long, trouble-free service with unbridled operating efficiency.

  • 1 ½ - 35 hp
  • Up to 175 psig
  • 9.7 - 202 acfm at 175 psig on electric driven units
  • Gas and diesel engine drive models available
  • Tank or Base Mounted, Simplex & Duplex Models
  • Single & Two Stage Splash-Lubricated Pumps
  • Prorated 5-Year Warranty on Pump
  • Factory filled with ChampLub lubricant

Model: HR10D-12
Motor HP: 10 (2)
Tank Cap Gal.: 120
Pump Comp Model: R-30D
PL-Series CBDPLA: HPL10D-12
Pump Comp Model: PL-30A
L x W x H Dimensions Inches: 86½ x 29 x 57
Approx. Ship Wt. lbs.: 1725
136 PSI Rating* RPM: 810
136 PSI Rating* CFM Displ.: 94.6
136 PSI Rating* CFM Del'y: 74.6
186 PSI Rating* RPM: 740
186 PSI Rating* CFM Displ.: 86.2
186 PSI Rating* CFM Del'y: 69.6
261 PSI Rating* RPM: 640
261 PSI Rating* CFM Displ.: 74.2
261 PSI Rating* CFM Del'y: 550


1 year parts
1 year labor
3 year Compressor Pump (Defect in material and workmanship)
