Champion TEN003329 OEM Remote-Mount Choke and Key-Switch Kit, Kohler 14 HP
Champion TEN003329 OEM Remote-Mount Choke and Key-Switch Kit, Kohler 14 HP
Shipping times vary.
Part No: CH-TEN003329
Alaska, Hawaii, & any/all US territories & international orders are excluded.
The Champion TEN003329 is an OEM remote-mount choke and key-switch kit for compatible Champion compressor configurations powered by a 14 HP Kohler engine. It brings the choke and starting controls to a remote mounting point, giving the operator an accessible control location while preserving the documented engine application.

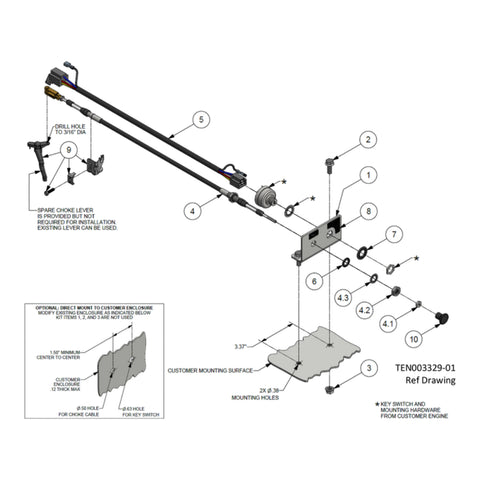

The kit includes the choke cable, key-switch wiring harness, mounting bracket, control hardware, decal and pull knob required for the documented installation. The engine key switch and its mounting hardware are reused and are not included. The supplied bracket supports a dedicated control mount, while the manufacturer also documents a direct-mount enclosure arrangement. A spare choke lever is included but may be unnecessary when the existing lever can be reused.
Features:
- Moves the choke and start controls to a remote mounting point for accessible operation.
- Supports installation with the supplied mounting bracket or the documented direct-mount enclosure arrangement.
- Includes a spare choke lever that can be omitted when the existing lever is suitable for reuse.
- Provides the matched choke cable and key-switch wiring harness specified for the kit.
Specs:
Manufacturer Part Number: TEN003329Part Type: OEM Kit
Component Type: Remote-Mount Choke and Key-Switch Controls
Engine Application: Kohler 14 HP
Key Switch: Reuse from existing engine; not included
Application:
Remote choke and starting-control placement for compatible Champion compressor installations.Bracket-mounted or documented direct-to-enclosure control installation.
Fitment:
Compatible Champion compressor configurations equipped with a 14 HP Kohler engine.

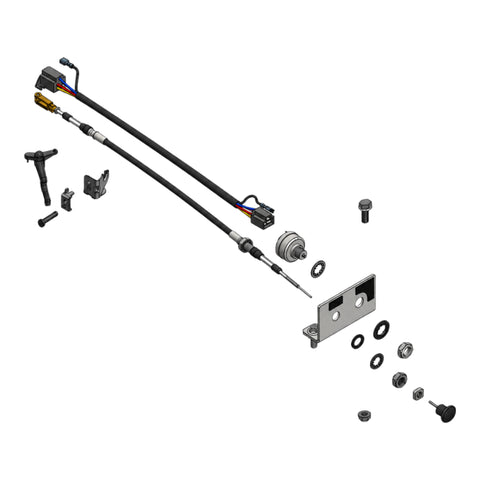

Includes:
1 × Mounting bracket (TEN003131)2 × Screws (75LM327)
2 × Nuts (50AW4)
1 × Engine choke cable (TEN003086)
1 × Key-switch wiring harness (TEN003070)
1 × Seal washer (TST000122)
1 × Seal washer (TST000124)
1 × Choke / OFF-RUN-START decal (TEN004766)
1 × Remote choke mount kit (TEN003091)
1 × Pull knob (TEN003077)
