Champion R-Series 2HP Horz Air Compressor
Champion R-Series 2HP Horz Air Compressor
Estimate Lead Time:
Part No: R2-30A-HR2-3-115V1P
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES
DOWNLOADS
Related Categories:
Air Compressor
Champion
PRODUCT INFO

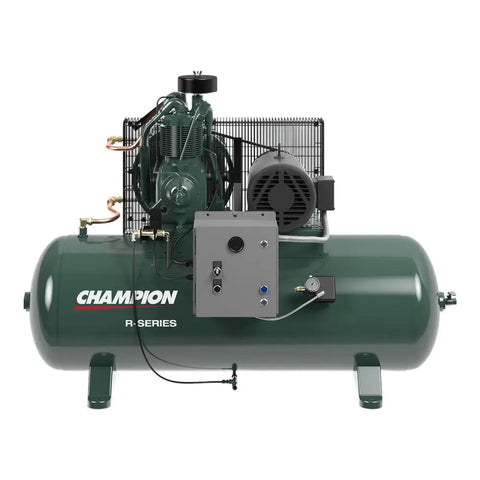

Champion R-Series R2-30A, 2 HP Splash lubricated Electric Stationary Simplex 30/60/80 Gal horizontal Air Compressor. R-Series Compressors are loaded with features designed for high performance and tremendous value.
Features:
- Mounted NEMA 1 Control Panel
- Includes control voltage transformer
- Controls:Tank mounted Simplex is start/stop pressure switch control. Base mount units, the start/stop pressure switch "control kit" is optional accessory. Duplex units are start/stop control with alternation
- ASME coded receiver (EXCEPT Base Mount Models)
- 1800 RPM Motors (Duplex x2)
- Intake Filter / Silencer (Duplex x2)
- Enclosed Belt Guard (Duplex x2)
- Loadless Starting
- California Code Compliant Receivers (Simplex only)
R2-30A-HR2-3
Tank Configuration: Horiz
Pump Model: R10
Pump RPM @ 175 PSI: 461
Volt/Phase: 115V/1Ph, 208V/1Ph, 230V/1Ph, 208V/3Ph, 230V/3Ph, 460V/3Ph, 575V/3Ph
Tank Size: Gallons (liters): 30 / 114
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 5.5 / 9.3
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 4.1 / 7
Est. Ship Weight: Lbs. (kg): 406 / 184
Model Number: HR2-3
Starter / Controller: Control Panel Level 1 - NEMA 1
Starter / Controller: Panel Mounting - NEMA 1/4
R2-30A-HR2-6
Tank Configuration: Horiz
Pump Model: R10
Pump RPM @ 175 PSI: 461
Volt/Phase: 115V/1Ph, 208V/1Ph, 230V/1Ph, 208V/3Ph, 230V/3Ph, 460V/3Ph, 575V/3Ph
Tank Size: Gallons (liters): 60 / 227
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 5.5 / 9.3
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 4.1 / 7
Est. Ship Weight: Lbs. (kg): 499 / 226
Model Number: HR2-6
Starter / Controller: Control Panel Level 1 - NEMA 1
Starter / Controller: Panel Mounting - NEMA 1/4
R2-30A-HR2-8
Tank Configuration: Horiz
Pump Model: R10
Pump RPM @ 175 PSI: 461
Volt/Phase: 115V/1Ph, 208V/1Ph, 230V/1Ph, 208V/3Ph, 230V/3Ph, 460V/3Ph, 575V/3Ph
Tank Size: Gallons (liters): 80 / 303
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 5.5 / 9.3
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 4.1 / 7
Est. Ship Weight: Lbs. (kg): 564 / 256
Model Number: HR2-8
Starter / Controller: Control Panel Level 1 - NEMA 1
Starter / Controller: Panel Mounting - NEMA 1/4
Tank Configuration: Horiz
Pump Model: R10
Pump RPM @ 175 PSI: 461
Volt/Phase: 115V/1Ph, 208V/1Ph, 230V/1Ph, 208V/3Ph, 230V/3Ph, 460V/3Ph, 575V/3Ph
Tank Size: Gallons (liters): 30 / 114
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 5.5 / 9.3
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 4.1 / 7
Est. Ship Weight: Lbs. (kg): 406 / 184
Model Number: HR2-3
Starter / Controller: Control Panel Level 1 - NEMA 1
Starter / Controller: Panel Mounting - NEMA 1/4
R2-30A-HR2-6
Tank Configuration: Horiz
Pump Model: R10
Pump RPM @ 175 PSI: 461
Volt/Phase: 115V/1Ph, 208V/1Ph, 230V/1Ph, 208V/3Ph, 230V/3Ph, 460V/3Ph, 575V/3Ph
Tank Size: Gallons (liters): 60 / 227
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 5.5 / 9.3
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 4.1 / 7
Est. Ship Weight: Lbs. (kg): 499 / 226
Model Number: HR2-6
Starter / Controller: Control Panel Level 1 - NEMA 1
Starter / Controller: Panel Mounting - NEMA 1/4
R2-30A-HR2-8
Tank Configuration: Horiz
Pump Model: R10
Pump RPM @ 175 PSI: 461
Volt/Phase: 115V/1Ph, 208V/1Ph, 230V/1Ph, 208V/3Ph, 230V/3Ph, 460V/3Ph, 575V/3Ph
Tank Size: Gallons (liters): 80 / 303
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 5.5 / 9.3
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 4.1 / 7
Est. Ship Weight: Lbs. (kg): 564 / 256
Model Number: HR2-8
Starter / Controller: Control Panel Level 1 - NEMA 1
Starter / Controller: Panel Mounting - NEMA 1/4
Warranty:
1 year parts1 year labor
3 year Compressor Pump (Defect in material and workmanship)
