Champion R Series 13 HP Horz Air Compressor

Champion R Series 13 HP Horz Air Compressor

Champion R Series 13 HP Horz Air Compressor

  • SKU: R2-30A-HGR7-3H From $3,888.14

Part No: R2-30A-HGR7-3H


  Price Match
We offer price matching. Just click the 'Price Match' button and our team will do our best to match the price for you.
Terms
SHIPPING INFO
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES
DOWNLOADS


PRODUCT INFO

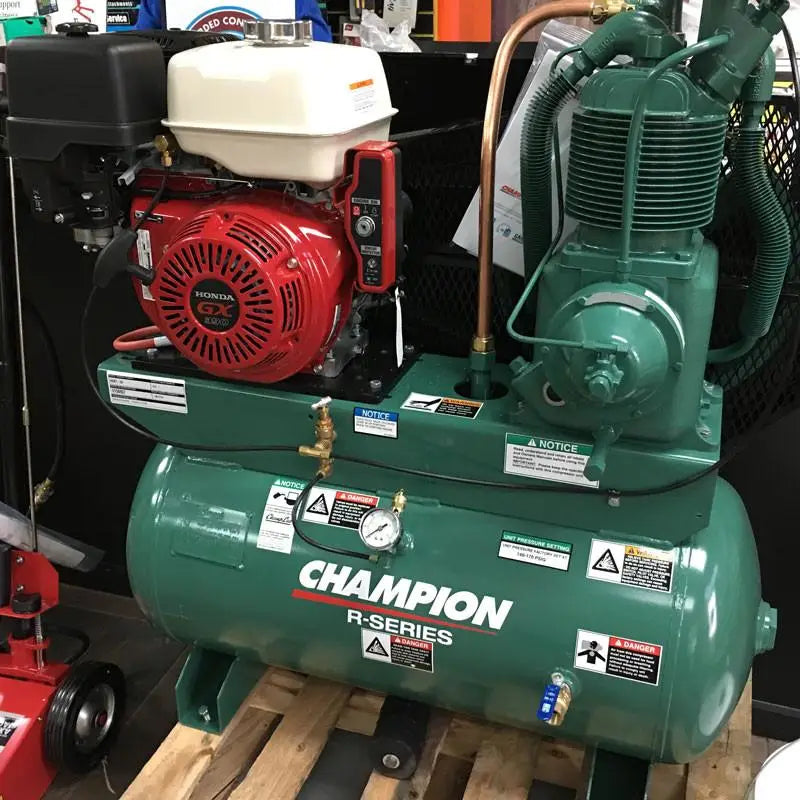

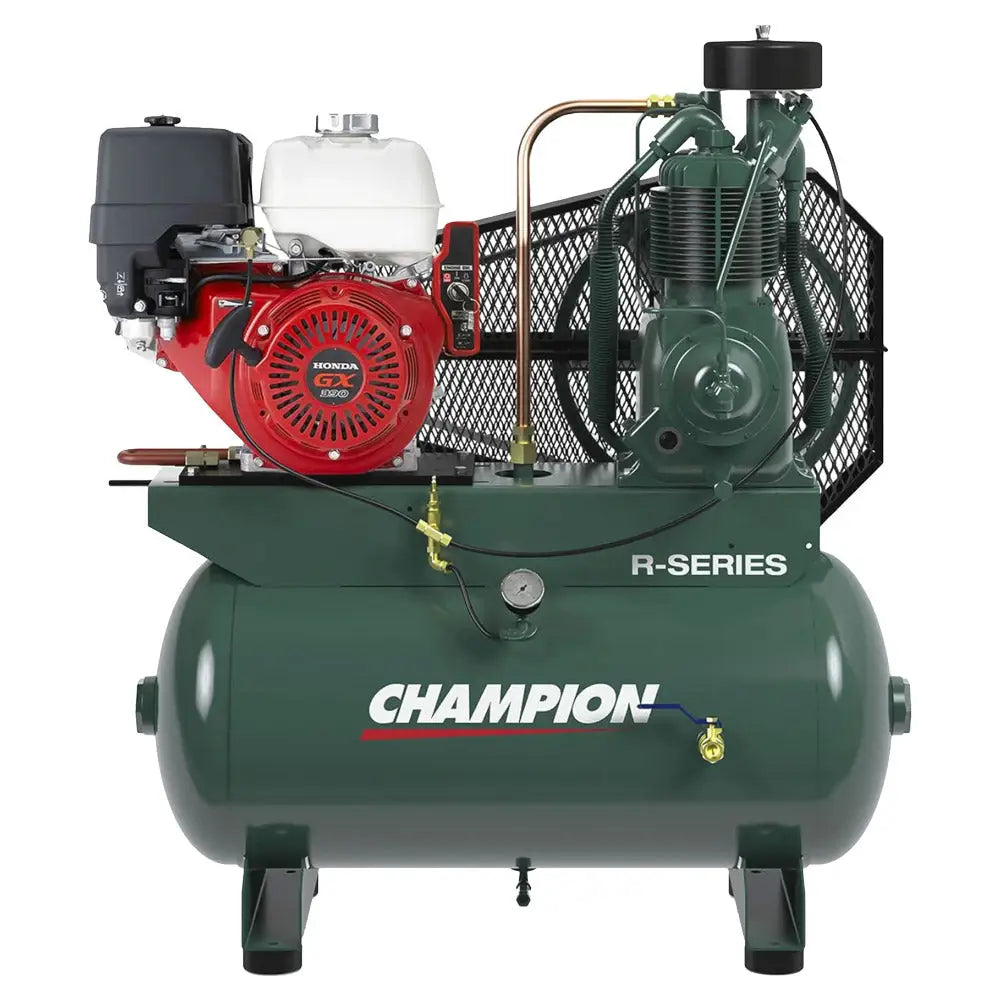

Champion R-Series R2-30A, 13 HP Splash lubricated Engine / Gas Driven Simplex Horizontal Air Compressor. R-Series Compressors are loaded with features designed for high performance and tremendous value.


Features:

  • All engines come standard with an electric key start switch
  • R Series compressor pump
  • All pumps come standard with head unloaders for constant load/no load operation
  • ASME coded receiver / EXCEPT Base Mount and Low Profile tank models
  • Intake Filter / Silencer
  • Enclosed Belt Guard
  • Vibration Isolators
  • Tank mounted units have a pilot valve with toggle for loadless starting wi.

Specs:

Configuration: Simplex
Tank Configuration: Horiz
Pump Model: R15
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 23.2 / 39.4
Engine HP: 13
Engine Model: Honda GX390
Vibration Isolators: Std

R2-30A-HGR7-3H
Tank Size: Gallons (liters): 30 / 114
Est. Weight: Lbs. (kg): 485 / 220
Model Number: HGR7-3H
California Code: Yes

R2-30A-HGR7-6H
Tank Size: Gallons (liters): 60 / 227
Est. Weight: Lbs. (kg): 585 / 265
Model Number: HGR7-6H
California Code: No

R2-30A-HGR7-8H
Tank Size: Gallons (liters): 80 / 303
Est. Weight: Lbs. (kg): 640 / 290
Model Number: HGR7-8H
California Code: No

Warranty:

1 year parts
1 year labor
3 year Compressor Pump (Defect in material and workmanship)
