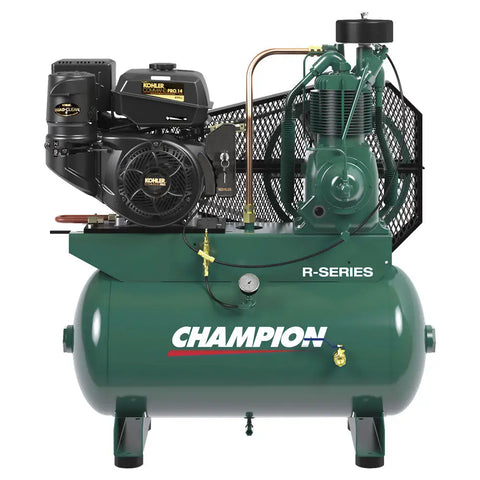

Air Compressor - Champion R Series Air Compressor Model HDR5-3K

Champion R Series Air Compressor Model HDR5-3K

  • $ 5,537.22
  • Save $ 276.86
Factory Direct
Ships in 3-5 Business Days
Shipping times vary.

Part No: HDR5-3K

Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


Champion R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value. This compressor pump comes with a 5-year pro-rated warranty. As a result, R-series compressors offer long, trouble-free service with unbridled operating efficiency.

  • 1 ½ - 35 hp
  • Up to 175 psig
  • 9.7 - 202 acfm at 175 psig on electric driven units
  • Gas and diesel engine drive models available
  • Tank or Base Mounted, Simplex & Duplex Models
  • Single & Two Stage Splash-Lubricated Pumps
  • Prorated 5-Year Warranty on Pump
  • Factory filled with ChampLub lubricant

Specs:
Model Number: HDR5-3K
Series: R Series
Engine hp: 9.8
Power Type: Diesel
Engine: Kohler
Unit Config.: Splash
Tank Config.: Horizontal
Tank Size (Gal.): 30
Pump Model: R-15B
Dimensions (L x W x H): 41.6 x 20.5 x 45.5
775 PSI Rating* (RPM / CFM Displ. / CFM Del y): 870 / 25.3 / 20.1
850 PSI Rating* (RPM / CFM Displ. / CFM Del y): 650 / 18.9 / 13.6
Model Matrix Number: CAERSB
Approx. Ship Wt. (Lbs.): 510
