Name: Champion R-Series 15HP Horz Air Compressor
Brand: Champion
SKU: R2-30A-HR15F-8-208V
Price: 5976.44 USD
Availability: InStock

Champion R-Series 15HP Horz Air Compressor

SKU: R2-30A-HR15F-8-208V From $5,976.44

Lead Time:

Part No: R2-30A-HR15F-8-208V

R30

R40

80 Gal

120 Gal

240 Gal

208V / 3P

230V / 3P

460V / 3P

575V / 3P

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

ACCESSORIES

DOWNLOADS

Related Categories: Air Compressor Champion

PRODUCT INFO

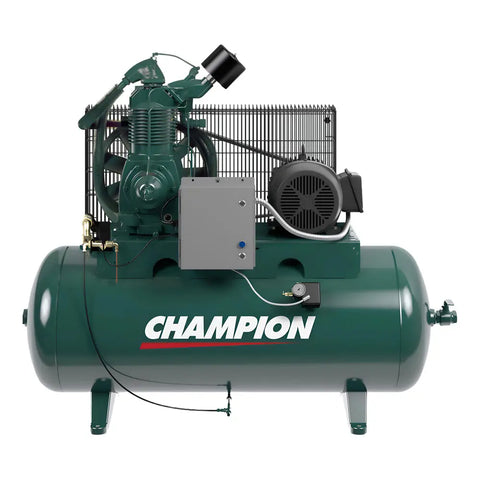

Champion R-Series R2-30A, 15 HP Splash lubricated Electric Stationary Simplex Horizontal Air Compressor. R-Series Compressors are loaded with features designed for high performance and tremendous value.

Features:

Mounted NEMA 1 Control Panel
Includes control voltage transformer
Controls: Tank mounted Simplex is start/stop pressure switch control. Base mount units, the start/stop pressure switch "control kit" is an optional accessory. Duplex units are start/stop control with alternation
ASME coded receiver / EXCEPT Base Mount Models
1800 RPM Motors / Duplex x2
Intake Filter / Silencer / Duplex x2
Enclosed Belt Guard / Duplex x2
Loadless Starting
California Code Compliant Receivers / Simplex only

Specs:

Configuration: Simplex
Tank Configuration: Horizontal
Control Panel Level 1: NEMA 1
Panel Mounting: NEMA 1/4
California Code Compliant: Yes
Volt, Phase: 208 / 230 / 460 / 575V - 3PH

Compressor with R30 Pump
Pump RPM @ 175 PSI: 1034
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 49.9 / 84.8
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 48.7 / 82.7

Compressor with R40 Pump
Pump RPM @ 175 PSI: 776
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 59.9 / 101.8
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 54.1 / 91.9

R2-30A-HR15F-8
Tank Size: Gallons (liters): 80 / 303
Pump Model: R30
Est. Ship Weight: Lbs. (kg): 898 / 407

R2-30A-HR15F-12
Tank Size: Gallons (liters): 120 / 454
Pump Model: R30
Est. Ship Weight: Lbs. (kg): 1017 / 461

R2-30A-HR15F-24
Tank Size: Gallons (liters): 240 / 908
Pump Model: R30
Est. Ship Weight: Lbs. (kg): 1371 / 622

R2-30A-HR15-12
Tank Size: Gallons (liters): 120 / 454
Pump Model: R40
Est. Ship Weight: Lbs. (kg): 1210 / 549

R2-30A-HR15-24
Tank Size: Gallons (liters): 240 / 908
Pump Model: R40
Est. Ship Weight: Lbs. (kg): 1564 / 709
