Challenger CL12A 2-Post Lift with Width Adjustment (12,000 lbs)

Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs)

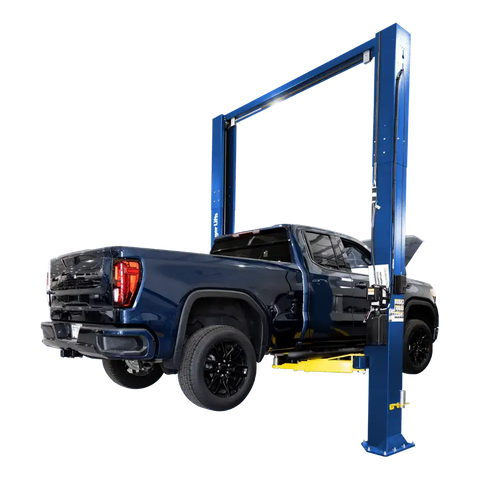

Blue pickup on Challenger CL12A 2-post lift with ali certified 12k capacity and adjustable width

Blue 2-post lift holding dark pickup truck, ali certified 12k, requires ceiling height

https://youtu.be/buB2dGw5k0s?feature=shared

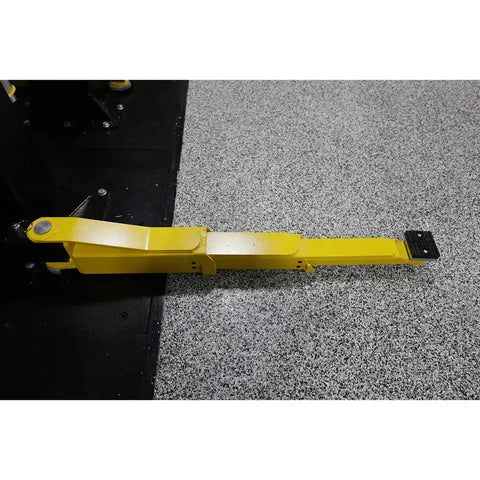

Yellow extendable metal arm with black foot on Challenger CL12A 2-post lift, ali certified 12k

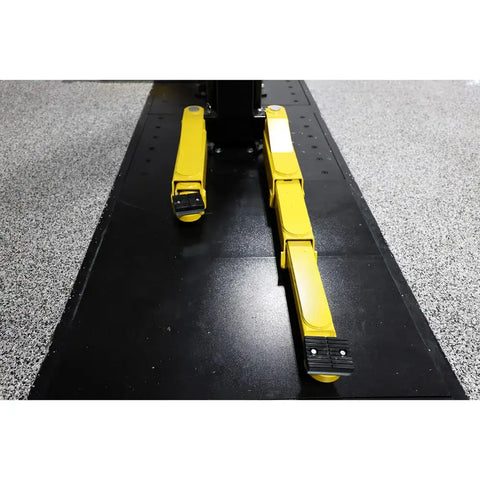

Yellow 2-post lift arms with black rubber pads for Challenger CL12A ali certified 12k lift

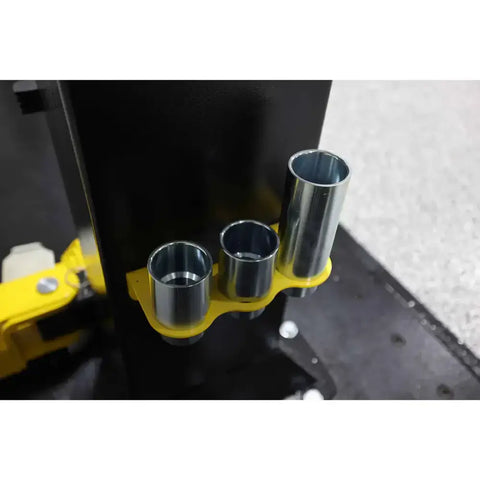

Yellow tool holder with metallic inserts on black post for Challenger CL12A 2-post lift

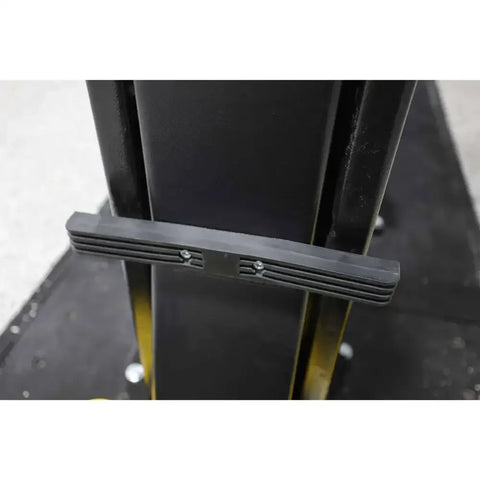

Black rubber footrest on Challenger CL12A 2-post lift for ali certified 12k capacity

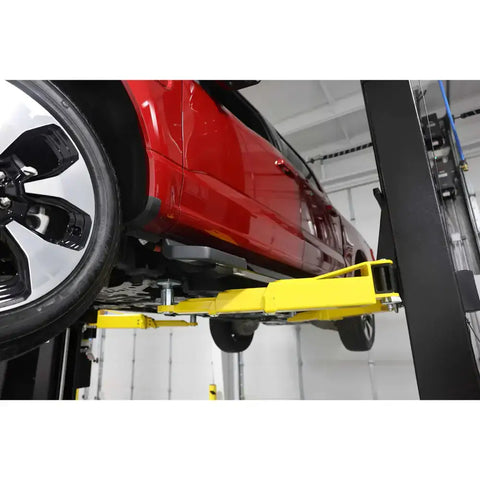

Red car on Challenger CL12A 2-post lift with ali certified 12k capacity and ceiling height needed

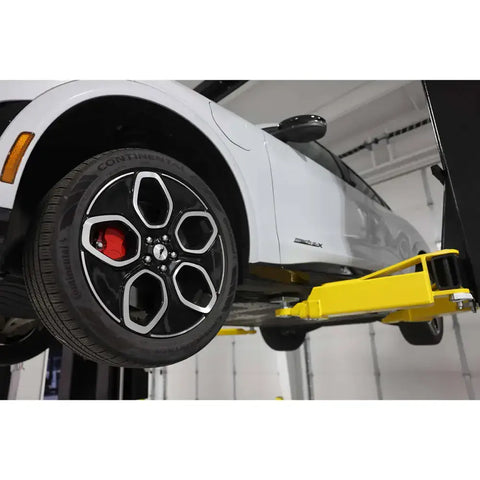

White electric car on Challenger CL12A 2-post lift with ali certified 12k capacity

Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs)

SKU: CHL-CL12AR From $11,166.00

Estimated Lead Time:

Part No: CHL-CL12AR

CL12A (Standard)

CL12A-1 (1 ft Extension)

CL12A-2 (2 ft Extension)

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

Related Categories: ALI Certify Lifts Automotive Lift Challenger Lifts Shop Equipment Two Post Lifts

PRODUCT INFO

CL12A Sale Sheet

CL12A User Manual

Challenger Foot Pad Assembly Sheet

Challenger Lifts Warranty Information

The Challenger CL12A 2-Post Lift combines 12,000 lbs. of lifting capacity with adjustable width, 3-stage arms, and premium telescoping footpads. Built for cars, trucks, vans, SUVs, and EVs, this ALI® Certified lift delivers unmatched flexibility, safety, and performance in a single service bay.

Features:

12,000 lb. Capacity – Handles a wide range of passenger vehicles, trucks, SUVs, and EVs
Adjustable Width – +6-inch and +12-inch installation options for shop flexibility
Optional Height Extensions – +1ft and +2ft column extensions available
3-Stage Front and Rear Arms – Maximum reach for lifting a variety of vehicles
Premium Telescoping Footpads – Easy and precise vehicle positioning
Stack Adapter Kit Included (P/N 10315) – Expands lifting point compatibility
ALI® Certified – Meets industry’s strictest safety and performance standards

Specs:

Lifting Capacity: 12,000 lbs.
Lifting Configuration: Symmetric
Arms: 3-stage front/3-stage rear
Rise Height (Screw Pads Highest Position): 78-3/4in
Adjustable Width Overall at Install: (-6in) 148in / (Max) 154in
Drive-Thru Clearance: (-6in) 109.5in / (Max) 115.5in
Arm Reach (Min.): 27.5in
Arm Reach (Max.): 59in
Screw Pad Height*: 5in - 6.625in
Inside Columns: (-6in) 120.5in / (Max) 126.5in
Speed of Rise (Approximate): 63 seconds
Motor: 2HP, 208-230V, 60Hz, 1Ph

CL12A
Overall Height / (-6in) (MAX): 158in - 164in / 13ft 2in or 13ft 8in
Floor to Overhead Switch: 152in - 158in
Ceiling Height Required (Min): 159in - 165in

CL12A-1
Overall Height / (-6in) (MAX): 170in - 176in / 14ft 2in or 14ft 8in
Floor to Overhead Switch: 164in - 170in
Ceiling Height Required (Min): 170in - 176in

CL12A-2
Overall Height / (-6in) (MAX): 182in - 188in / 15ft 2in or 15ft 8in
Floor to Overhead Switch: 176in - 182in
Ceiling Height Required (Min): 182in - 188in
