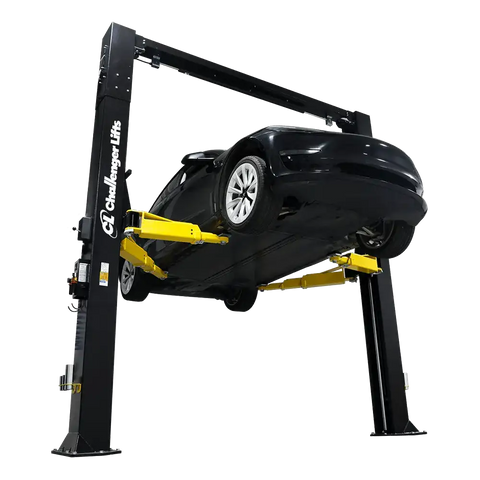

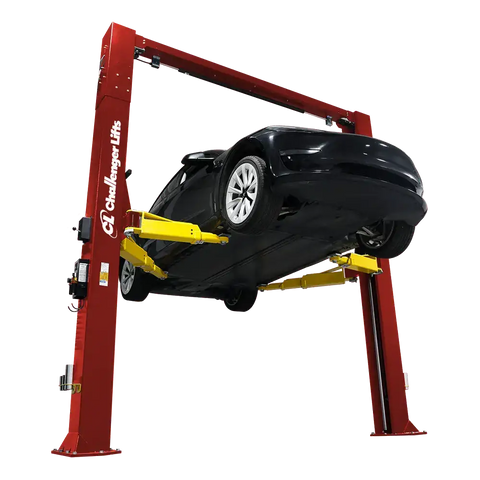

Challenger CL12A-LC Low Ceiling Symetric 2-Post Lift w/ 3 Stage Arm (12,000 lbs)
Challenger CL12A-LC Low Ceiling Symetric 2-Post Lift w/ 3 Stage Arm (12,000 lbs)
Estimated Lead Time:
Part No: CHL-CL12A-LCR
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
ALI Certify Lifts
Automotive Lift
Challenger Lifts
Shop Equipment
Two Post Lifts
PRODUCT INFO
For shops with less than 12 ft ceilings, our CL12A-LC is the pinnacle of safety and quality. ALI Certified and Professional Approved, this low-ceiling model boasts a robust 12,000 lbs. capacity. Its standout feature is a +6" to +12" width adjustment during installation, offering unparalleled flexibility. With 3-Stage arms, premium telescoping footpads, and EV Service Ready capability, it's a trusted brand for diverse automotive needs. Elevate your workshop with this Challenger in low-ceiling efficiency.
Features:
- Low-Ceiling Model: ALI Certified, Ideal for <12ft Workshops
- 12,000 lbs. Capacity: Professional Approved, Safety and Quality Assurance
- +6" to +12" Width Adjustment: Versatile Fit for Various Vehicles

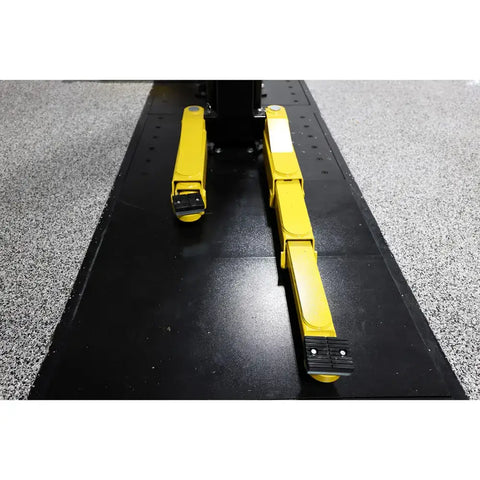

- 3-Stage Arms, Telescoping Footpads: Precision and Stability Assured
- EV Service Ready: Future-Proof, Keeping Pace with Automotive Advancements
- Trusted Brand: Challenger's Legacy of Reliability and Performance
Specs:
Lifting Capacity: 12,000 lbs.Lifting Configuration: Symmetric
Arms: 3-stage front/3-stage rear
Rise Height (Screw Pads Highest Position): 74-3/4"
Overall Height / (-6") (MAX): 143" / 11' 11"
Adjustable Width Overall at Install: (-12") 142" / (-6") 148" / (Max) 154"
Drive-Thru Clearance: (-12") 103.5" / (-6") 109.5" / (Max) 115.5"
Floor to Overhead Switch: 136-1/2"
Arm Reach (Min.): 27.5"
Arm Reach (Max.): 59"
Screw Pad Height *: 5" - 6.625"
Inside Columns: (-12") 114.5" / (-6") 120.5" / (Max) 126.5"
Ceiling Height Required (Min): 144"
Speed of Rise (Approximate): 60 seconds
Motor: 2HP, 208-230V, 60Hz, 1Ph
Ref No.
CL12-LC (Older Model)
Similar Products
CL12A (Standard Model)
CL12A-1 (1ft Ext Model)
CL12A-2 (2ft Ext Model)
Ref Name
Challenger Low-Ceiling 12K Lift
ALI Certified 12K Low-Ceiling Lift
Application:
Auto RepairDealerships
Service Centers
Workshops
Garages
