CEMB ER72 Digital Wheel Balancer

CEMB ER72 Digital Wheel Balancer
application carCar
application light truckLight Truck
Made in Europe

CEMB ER72 Digital Wheel Balancer

  • SKU: CMB-ER72 $ 5,823.09

Part No: CMB-ER72

  Price Match
We offer price matching. Just click the 'Price Match' button and our team will do our best to match the price for you.
Terms
SHIPPING INFO
SHIPPING INFO
Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES


PRODUCT INFO

Spotter Digital Wheel Balancer. Professional digital wheel balancer with automatic distance and diameter entry with width sonar (3D), with new spotter laser system, Full-time Static on screen, quick release wingnut and 42” wheel guard standard

The CEMB Digital Wheel Balancer ER72TD is made especially for busy tire shops. This new series has the latest technology in wheel balancing, “Spotter” lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (major cause of check spin errors).

Full Time Static on screen for a perfect balance. The automatic arm measures diameters up to 30in, automatic entry of the dimensions with width sonar 3D. It comes fully assembled.


Features:

  • Professional digital wheel balancer especially designed for tire dealers
  • Automatic Distance & Diameter Entry with Width Sonar (3D)
  • Fully automatic Spotter Laser System for best correction possible
  • Full-time accuracy with Static unbalance always displayed on screen
  • LED to light the work space inside the rim
  • New automatic arm to measure automatically diameters up to 30in
  • Standard locking with Quick Nut
  • Electromagnetic brake for easy weight placement
  • Available 110VAC or 220VAC
  • Wide working space
  • Direct selection ounces/grams
  • Optimization program for compensation of rim and tire unbalance
  • One Button Split & Hidden Weight Program

Specs:

Power Supply: 110VAC or 220VAC, 50/60 Hz, 1 ph
Balancing Speed: < 100 rpm
Balancing Accuracy: < 0.1 oz (< 1 g)
Average Cycle Time: 5 seconds
Rim Diameter Capacity: 10in - 30in (265 - 765 mm)
Rim Width Capacity: 1.5in - 20in (40 - 510 mm)
Max. Wheel Weight: 165 lbs (75 kg)
Max. Tire Diameter: 42in (1,067 mm)
Operating Temperature: 32 - 113°F (0 - 45°C)
Shaft Size: 40 mm
Gross Ship. Weight: 370 lbs (168 Kg)

Standard Accessories
Quick Nut: Quick release wingnut
Cup + Press. Ring: Reverse mounting cup with no mar-ring + Pressure ring
Cones: 4 cones covering hole sizes 1.69” (43mm) to 5.2” (132mm)
2p Truck CK: 2 piece truck cone kit for light truck wheels for hole from 3.82in (97mm) to 7.09in (180mm)
Caliper: Rim width gauge for measuring wheel width
Shaft: 40mm threaded shaft
Weight Pliers: Can be used as balanced weight hammer, cutting pliers for trimming wheel weights, and puller to remove the old wheel weights
Test Weight
Allen Wrench: 8mm allen wrench to mount the 40mm threaded shaft
Wheel Guard
Width Sonar: Automatic Width Sonar reading (3D)
New Gauge: New extended aluminum gauge for diameter measurement of rims up to 30in
Spotter: Spotter Laser System for best correction possible
LED: LED to light the working space inside of the rim
Electric Brake: Electric brake for easy weight placement

Optional Accessories

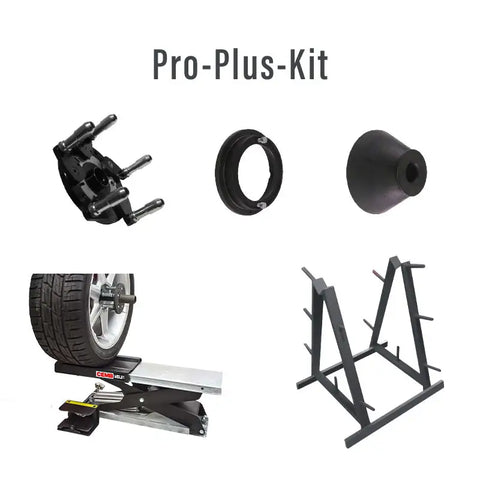

WBL81: Pneumatic lift for wheel balancers
MOTORCYCLE AD.: Universal motorcycle and scooter adaptor kit with 15mm arbor, cones and spacers for bearing type wheels and single side arm (flange) type wheels
SRU345: Universal stud adaptor (for hub centric wheels with 3-4-5-6 holes, 75-210mm bolt pattern). To be used with inside centering cone.
SR USA: Stud adapter for rim protection and high precision (on lug centric wheels). To be used without centering cone.
UH20/2: CEMB PATENT - Universal bolt pattern adaptor (for wheels 3-4-5 holes or without center hole)
WD + DC: WD wheel support spacer for very wide wheels + DC spring pusher bush
RL CUP + RING: Large diameter plastic cup for alloy rims protection (8.11in/206mm for alloy rims, includes no-mar ring)
3P TRUCK C.K.: 2 piece truck cone kit + GG spacer ring to fit Ford F-350, 450 and 550
