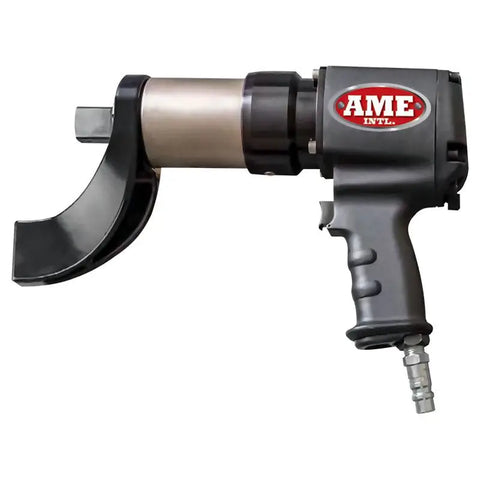

AME PTW Pneumatic Torque Wrench

AME PTW Pneumatic Torque Wrench

AME PTW Pneumatic Torque Wrench

  • Drive, Min, Max (ft/lbs)
    SKU
    Price
    Quantity
  • AME-PTW1000C
    6,980.58
  • AME-PTW2000C
    7,825.88
  • AME-PTW3000C
    9,298.13
  • AME-PTW6000C
    10,800.00
SHIPPING INFO
ACCESSORIES
DOWNLOADS


PRODUCT INFO

AME PTW-Series pneumatic torque wrenches provide a simple to use solution for tough bolting jobs when you want them done quickly and safely.


Productivity

  • High-speed continuous rotation for constant torque output
  • Low friction planetary gearbox design minimizes wear and extends uptime

Safety

  • Ergonomic, low vibration design reduces fatigue and the risk of vibration-related injuries for the operator
  • Low noise air motor provides quiet, consistent performance for indoor and outdoor applications

Convenience

  • Provided with standard reaction arm; a wide assortment of custom arms and accessories are available
  • Available with or without Filter-Regulator-Lubricator (FRL)
  • Unique calibration certificate provided with each tool.

AME-PTW1000C
Minimum Torque (ft-lbs): 300
Minimum Torque (Nm): 407
Maximum Torque (ft-lbs): 1000
Maximum Torque (Nm): 1356
Square Drive
(in): 1in
RPM: 12.6

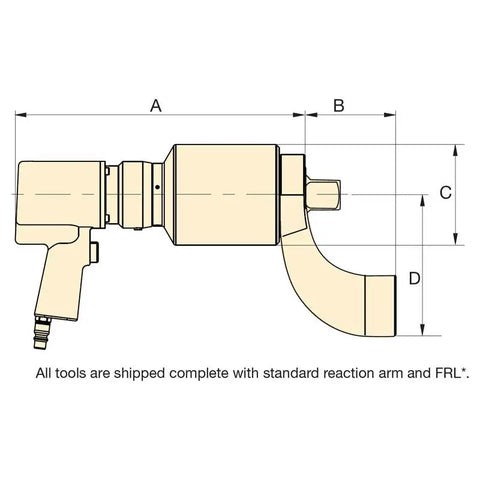

A: 10.7in
B: 3.27in
C: 2.83in
D: 5.12in
Weight: 18 lbs

AME-PTW2000C
Minimum Torque (ft-lbs): 500
Minimum Torque (Nm): 678
Maximum Torque (ft-lbs): 2000
Maximum Torque (Nm): 2712
Square Drive
(in): 1in
RPM: 8
A: 11.26in
B: 3.27in
C: 3.11in
D: 5.24in
Weight: 19.5 lbs

AME-PTW3000C
Minimum Torque (ft-lbs): 900
Minimum Torque (Nm): 1220
Maximum Torque (ft-lbs): 3000
Maximum Torque (Nm): 4067
Square Drive
(in): 1in
RPM: 3.1
A: 13.5in
B: 3.27in
C: 3.74in
D: 5.24in
Weight: 23 lbs

AME-PTW6000C
Minimum Torque (ft-lbs): 1300
Minimum Torque (Nm): 1763
Maximum Torque (ft-lbs): 6000
Maximum Torque (Nm): 8135
Square Drive
(in): 1½in
RPM: 2.5
A: 14.4in
B: 4.49in
C: 5in
D: 7in
Weight: 39 lbs

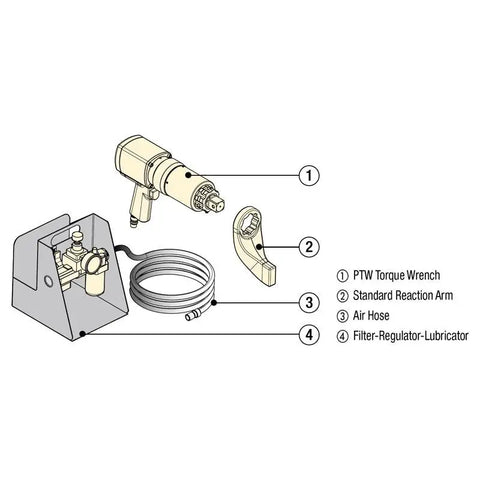

Includes:

1. PTW Torque Wrench
2. Standard Reaction Arm
3. Air Hose
4. Filter-Regulator-Lubricator
