AFF 3598 10 Ton HD Air Operated End Lift

AFF 3598 10 Ton HD Air Operated End Lift
Made in USA

AFF 3598 10 Ton HD Air Operated End Lift

  • SKU: AFF-3598 $3,695.00
  • Save $655.00
Estimate Lead Time: End of August

Part No: AFF-3598

SHIPPING INFO
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
ACCESSORIES
DOWNLOADS


PRODUCT INFO

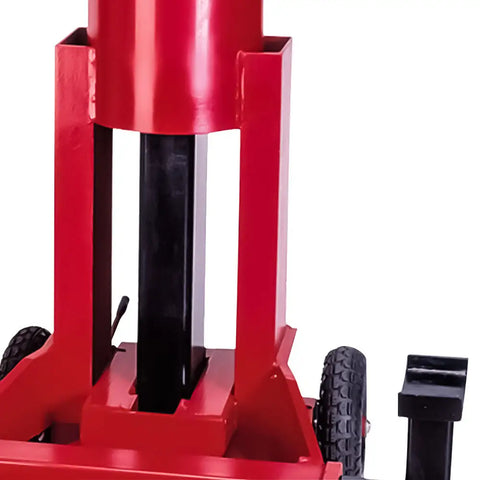

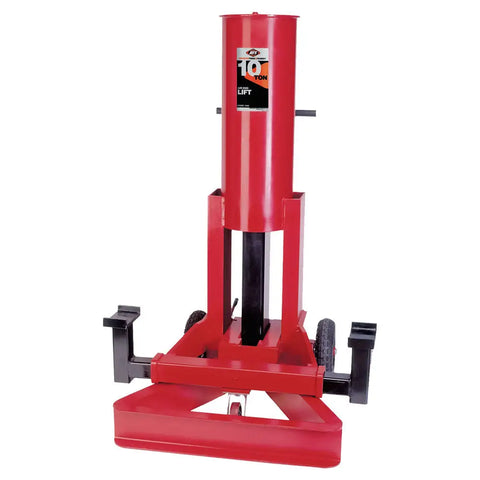

Looking to lift the entire front or rear of a large truck, bus, industrial equipment, or farm vehicle? The AFF Air End Lift is just what you need! With an extra-wide stance, this lift is designed to handle even the largest vehicles with ease.


Features:

  • 10-Ton capacity achieved at 200-PSI air supply

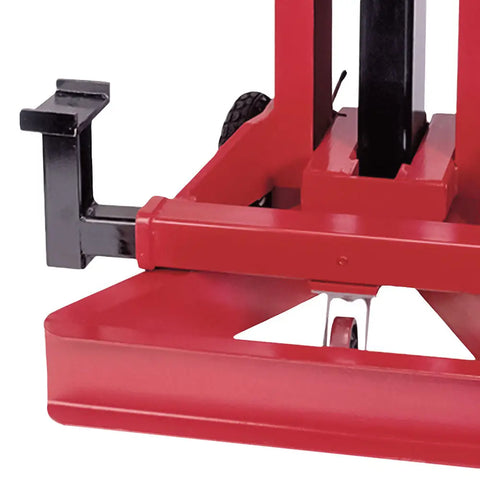

  • 4in x 6in steel saddles adjust between 36in and 50in widths
  • Saddle arms reversible for low height loads
  • Three-way air valve for fine lifting and lowering control
  • Automatic mechanical safety lock engages at five lift heights from 17-1/2in to 50in
  • Two air control valve fittings – one for shop air supply and one for a Schrader valve
  • Front swivel caster and two pneumatic rear tires for easy maneuverability
  • 13in Forward reach (distance from cylinder to saddles)
  • Ship wt. 750lbs.

Specs:

Capacity: 10 Ton @ 200 PSI
Steel Saddle: 4 x 6in
Adjustable Width: 36-50in
Forward Reach: 13in
Ship Weight: 750 lbs

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
