AC Hydraulic 65 Ton Aircraft Jack with Extra Long Stroke - 65-1APH

AC Hydraulic 65 Ton Aircraft Jack with Extra Long Stroke - 65-1APH

AC Hydraulic 65 Ton Aircraft Jack with Extra Long Stroke - 65-1APH

  • SKU: AC-65-1APH $ 4,952.00

Part No: AC-65-1APH

  Price Match
We offer price matching. Just click the 'Price Match' button and our team will do our best to match the price for you.
Terms
SHIPPING INFO
ACCESSORIES
DOWNLOADS


PRODUCT INFO

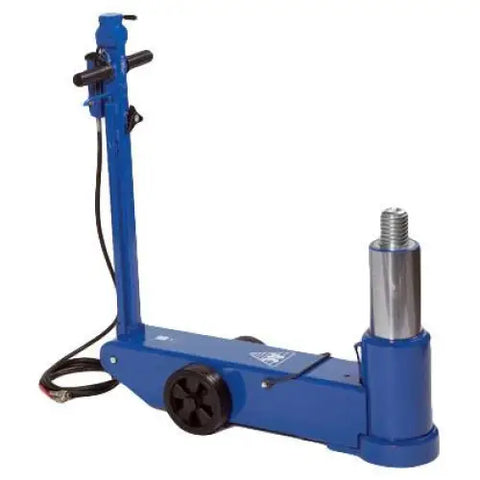

Air hydraulic aircraft jack with extra long stroke


Features:

  • Compact and slim design for easy operation and manoeuvrability
  • Telescopic handle increases the reach under the aircraft to 90.28 in and offers easy and safe operation

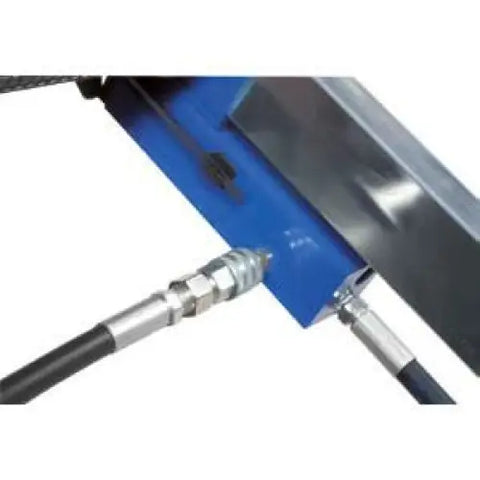

  • The jack can be operated by either compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart

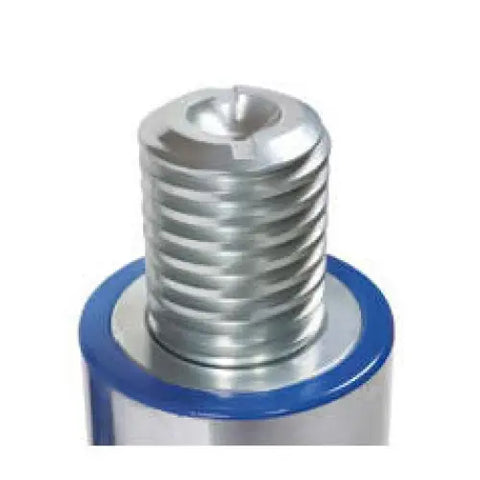

  • Fitted with extension screw 3.15 in for optimum use of the stroke
  • Rapid ram retraction without load
  • Safety features include manual lowering valve, safety overload valve and dead mans release
  • Designed and manufactured according to the aircraft standards: EN1915:2001 and EN12312:2005

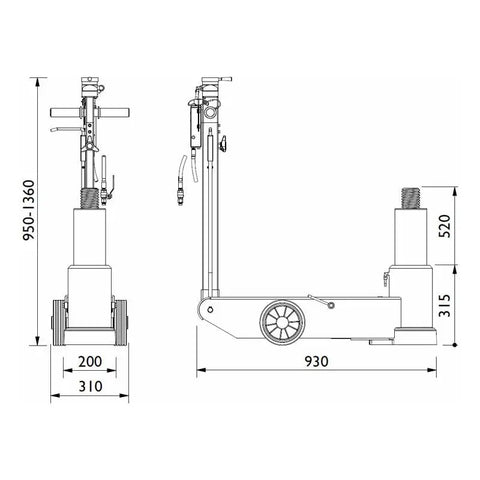

Specs:

Capacity: 143000 lbs
Min. height: 12.36 in
Max. height: 20.47 in
Frame length: 36.37 in
Handle length: 37.40 - 53.54 in
Width: 7.87 in
Width with wheels: 12.20 in
Air supply: 130 - 174 psi
Air consumption: 350 l/min
Weight: 207 lbs

MLG - Main Landing Gear

Airbus: A300 / A310, A319 / A320 / A321 (MLG-single only), A330-300, A340-200 / -300
Boeing: B717, B727, B737-100 / -200 / -300 / -400 / -500, B737-600 thru -900, B767-400ER
McDonnell Douglas: MD11, DC8, DC9, DC10
Lockheed: L1011

NLG - Nose Landing Gear

Airbus: A340 / -500 / -600
Boeing: B727, B767-200 / -300 / -400ER, B777-200 / -300 / -300ER
McDonnell Douglas: MD11
