This BendPak model XPR-10S 2-Post Symmetric Car Lift delivers a fast lift speed and less maintenance for improved efficiency and productivity. Plus, the expandable top beam accommodates wide or narrow configurations. The highly sophisticated yet simple and dependable XPR-Series design requires very little service or maintenance for an overall lower cost of ownership.

Loaded With Performance Features

Clear floor Convenience Cuts Out Clutter:

No cross supports are needed, keeping the floor open and uncluttered
Unobstructed floor space allows the technician to easily move toolboxes, transmission jacks, oil drains, and other equipment underneath the elevated vehicle without any supports getting in the way

Extra-Tall Lift Carriages Protect Bearings and Columns

53in.H carriages are taller than the carriages on most comparable lifts, helping to minimize stress on the load bearings and columns, helping to extend lift life

Dual Direct-Drive technology

2 low-pressure HVLP direct-drive cylinders eliminate the need for lifting chains or screw mechanisms
Very reliable HVLP direct-drive technology delivers ultra-smooth operation and reduced maintenance with a reduced workload placed on the entire hydraulic system

Single-Point Safety Release

Easy to operate and safe to use, with a single point safety release and "dead man" style operation controls

Level Lifting

The dual-synchro equalization system maintains equal lifting, providing a stable, level vehicle working condition

Auto Shutoff

A rigid, padded safety shutoff bar automatically stops the lift should a vehicle come in contact with an overhead structure

High-Speed Hydraulics

Free-flow, high-pressure 3/8in. hydraulic lines are teamed with a high-flow pump and integrated AC power unit to increase ascent/descent speed rates for enhanced productivity

Armed to Make The Job Easier

Triple-Telescoping Front Arms and 2-Stage Rear Arms

Increases overall arm positioning for lifting a variety of different wheelbase vehicles
Overall arm sweep and minimum arm reach are extended to precisely fit lift vehicles that have unibody construction, OEM recommended pick-up points, and wide or narrow wheelbase configurations

Low-Profile, Dropped-End Frame Contact Pads

Designed to squeeze under even the lowest compact and sport vehicles

Lower Arm Tube Supports are Gentle on Vehicles

Redesigned arm tube supports to allow for better clearance, minimizing the chance of damaging vehicles that have low-hanging doors

Automatic Arm Restraints Do the Work for You

Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised
Gear arm restraints automatically disengage when the lift is lowered, providing easy positioning of the lift arms

Toughness That's Built to Last

Industrial-Grade Hydraulic Cylinders

A 1-piece, pilot-fitted, machined steel piston is wrapped with pressure-loaded U-cup piston seals, backups, and wear bands that virtually eliminate any fluid bypass
The micro-smooth chrome rod is machined from micro-alloy steel and plated to ensure superior cylinder operation and life
Superior design, high durometer, mechanically-loaded rod seals make rod leakage a thing of the past
This superb combination of excellent base materials and superior processing ensures that the cylinders remain straight, smooth, and last a very long time

Maintenance-Free Load Bearings

High-tech UHMW (ultra-high molecular weight polyethylene) load bearings never need lubrication
Load bearings are designed to last the entire life of the lift

Single-Piece Columns for Exceptional Strength

Extra tough, super-strong single piece column construction withstands stress and fatigue under heavy load conditions

Durable Powder-Coat Finish

The high-quality powder-coat finish helps the tough metal parts withstand even the harshest environmental or chemical conditions
The meticulous 10-step powder-coating process includes sandblasting, phosphate wash, pre-baking, spraying, curing, and more for a long-lasting finish

Equipped to Maximize Results

Truck and Van Adapters are Included

Easy-to-use adapters designed for use with trucks and vans with running boards or auxiliary fuel tanks
These adapters come standard with every XPR-Series lift purchase

Detailed Instructions Get You Up and Running

Each lift includes a set of detailed installation and maintenance instructions, plus graphic safety decals, maintenance decals, and a vehicle lifting point guide
A safety instruction placard can be used to help train personnel on proper safety procedures and maintenance guidelines

Optional Column Extension

These extensions give you the flexibility of increasing overhead clearance to maximize the size of vehicles that can be serviced / this part is not included, but available separately

Features:

Single-piece columns with safety locks and padded overhead safety shutoff bar
Drop-end arms provide a lower pad height
Oversized 53in. tall carriage offers superior strength and durability
Dual hydraulic direct-drive cylinders
Reliable electric/hydraulic power system
Large, 17in. x 19in. steel base plate
Single-point safety release and automatic arm restraints
Heavy-duty 1/2in. aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue
Double-telescoping screw pads with gouge- and tear-resistant polyurethane pads to help increase workplace safety and reduce operating costs
ETL certified
Item too large for the liftgate requires forklift for unloading
Manufacturer's Warranty: 12 months parts / 12 months labor

Specs:

Lift Capacity (lbs.): 10,000
Max capacity / Front Axle: 5,000 lbs. / 2,268 kg
Max capacity / Rear Axle: 5,000 lbs. / 2,268 kg
Max. Rise (in.): 69
Pad Height (in.): 4
Drive-Thru Clearance (in.): Narrow configuration: 93; Wide configuration: 106
Overall Height: 145
Overall Width (in.): 132-145
Horsepower: 2
Motor Phase(s): 1
Time of Full Rise (seconds): 45
Volts: 220
Screw Pad Adjustment: 2in / 51 mm
Max Load Per Arm: 2,500 lbs. / 1,134 kg
Ship Weight: 1654.0 lbs

A - Rise: 69in / 1,753 mm
B - Lifting Height w/Pad*: 73.75in / 1,873 mm
C - Maximum Lifting Height*: 78.5in / 1,991 mm
D - Minimum Height w/Pad: 4.75in / 120 mm
E - Height Overall: 144.75in / 3,678 mm
F - Width Overall (Narrow): 132in / 3,353 mm
F - Width Overall (Wide): 145in / 3,683 mm
G - Outside Posts (Narrow): 126.75in / 3,219 mm
G - Outside Posts (Wide): 139.75in / 3,549 mm
H - Inside Posts (Narrow): 105.5in / 2,679 mm
H - Inside Posts (Wide): 118.5in / 3,009 mm
I - Drive-Thru Width (Narrow): 93in / 2,364 mm
I - Drive-Thru Width (Wide): 106in / 2,694 mm
J - Floor to Top Switch: 140.75in / 3,576 mm
K - Front Arm Reach (min): 25.5in / 646 mm
K - Front Arm Reach (max): 49.5in / 1,255 mm
L - Rear Arm Reach (min): 32.25in / 820 mm
L - Rear Arm Reach (max): 52.5in / 1,333 mm

Login

Create Account

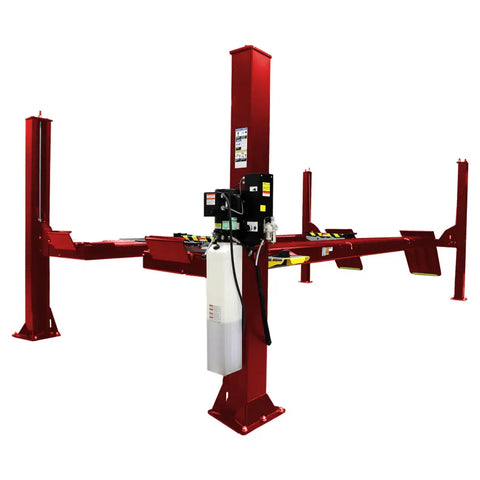

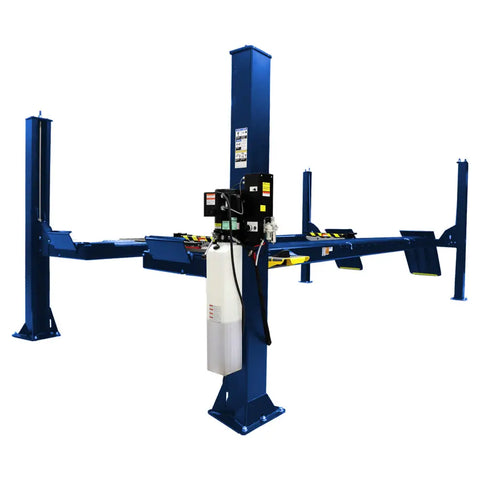

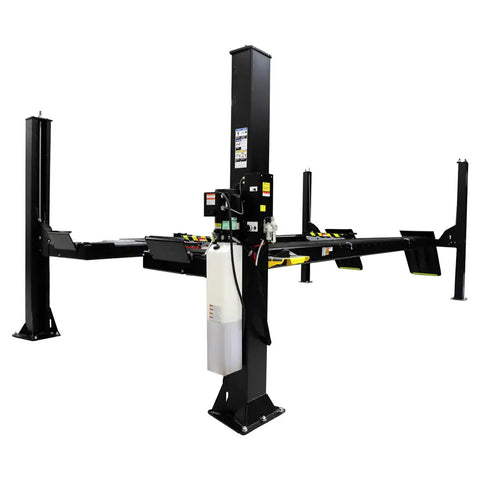

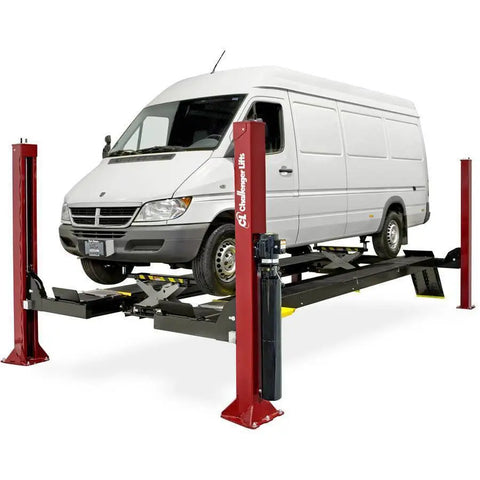

Challenger 4115XFO 4-Post Flat Deck Gen Svc Lift Open-End (15,000 Lbs)
