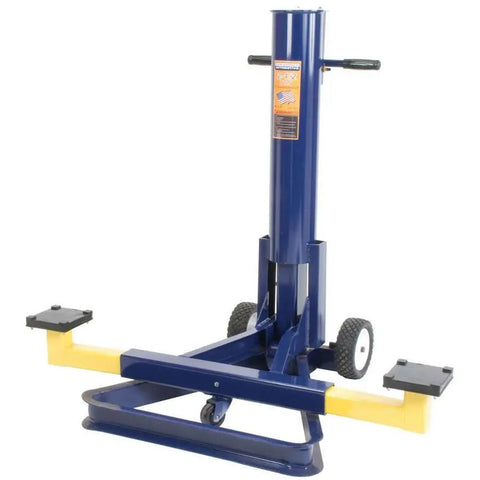

Hein-Werner 2-1/2 Ton Air Operated End Lift

Automotive - Hein-Werner 2-1/2 Ton Air Operated End Lift
Made in USA

Hein-Werner 2-1/2 Ton Air Operated End Lift

  • SKU: HW-93696 $1,239.73

Part No: HW-93696


Hein-Werner 2-1/2 Ton Air Operated End Lift


  • Lifting the front or rear end of cars, vans, and light trucks by the bumper
  • Air operation with two-stage air valve
  • Hydraulic damper and safety locks
  • Four-point lifting saddle with ribbed rubber pads and slotted bumper fingers
  • Saddle height and width location adjustment for ease of pick up
  • A quick yet effortless lift saves time and reduces mechanic fatique
  • Three-way heavy duty brass air valve provides fine control when lifting and lowering a vehicle
  • Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
  • Front swivel caster wheel and two 8in diameter rear tires provide easy maneuvering
  • Adjustable lifting arm can be extended to desired position
  • Made in USA

Product Information

  • Capacity: 2-1/2 in Ton
  • Mininum Height: 10-1/4 in
  • Maximum Height: 35-3/8 in
  • Power Raise: 24-1/2 in
  • Saddle Spread: 23-1/4 in - 41-1/4 in
  • Min. Air Pressure for Rated Load: 200 PSI
  • Distance (Lifting to Front of Saddle): 19 in 1
