Automotive - Sunex 10,000 PSI Capacity Air/Hydraulic Foot Pump

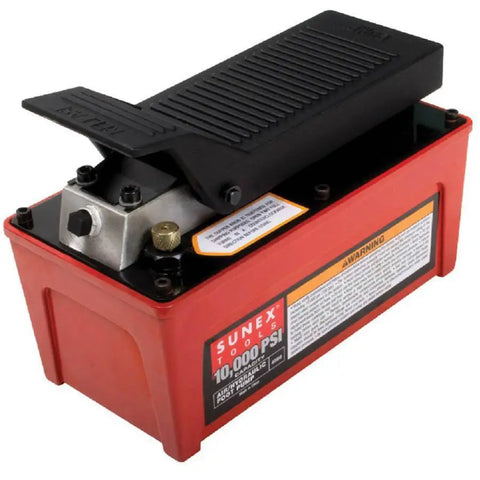

Sunex 10,000 PSI Capacity Air/Hydraulic Foot Pump

  • $ 357.98
  • Save $ 35.80

Part No: SUN-4998



10,000 PSI Capacity Air/Hydraulic Foot Pump

Features:

  • For use with single acting cylinders up to 50 ton capacity and reduces pumping time and effort by depressing a foot/hand pedal
  • 90 PSI air pressure develops 10,000 PSI hydraulic pressure
  • Foot pump provides hands-free pumping and release of load
  • Designed to be used with single acting cylinders only
  • Features and internal overload valve and durable aluminum reservoir
  • Release lock function enables pedal to be locked in the released position without having to depress and hold the pedal
  • Hydraulic filter prevents contaminants from entereing into the hose and ram and also from returning into the pump.

Specs:

  • Air Input Range (PSI) 90 to 175
  • Air Thread Connection (NPT) 0.25
  • Flow Rate, No Load (cu.in./min.) 42
  • Flow Rate Load (cu.in./min.) 8.5
  • Height (in.) 7.312
  • Hydraulic Capacity (PSI) 10000
  • Hydraulic Thread Connection (NPT) 0.375
  • Length (in.) 10.312
  • Shipping Weight (lbs.) 19
  • Usable Oil Capacity (cu.in.) 98
  • Valve Function Advance/Hold/Retract
  • Width (in.) 5.312 1
