TSI TI-96 Tire Inspector for Truck, Bus, Heavy Truck Tires
Part No: TSI-TI-96

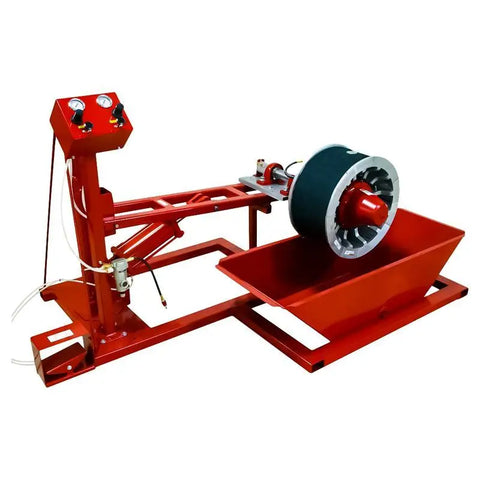

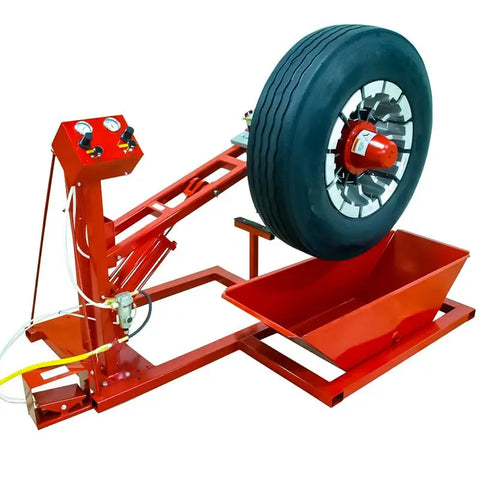

The TI-96 Tire Inspector is designed to inspect nonmounted tires from 13 to 24.5 inches using an expandable hub and rim assembly. The TI-96 Tire Inspector allows the operator to check tires for sidewall, tread, and bead leakage utilizing a dunk test tank. A foot-operated power lift will save time and injury by lifting those large casings from the floor into the test tank. Quick and easy inspection is accomplished using an expandable hub and expandable rim assemblies. The TI-96 tire and hub assembly rotate smoothly for inspection, and all operating controls are located on the side of the machine for smooth operation. A standard 1/4in, 90 PSI airline operates the unit, and no electricity is required. We recommend the use of a good-quality dual-stage compressor for optimum results.
- Includes the standard 22in - 24.5in expandable rim assembly
- Other expandable rims are available to accommodate passenger and light truck tires
Specs:Weight: 668 lbs
Dimension: 58in x 78in x 58in
