BelAire / Chicago Pneumatic T39 Air Compressor Pump, 5-7.5 HP - 1312101036
BelAire / Chicago Pneumatic T39 Air Compressor Pump, 5-7.5 HP - 1312101036
Part No: BEL-1312101036
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
Air Compressor
Air Compressor Parts & Accessories
Air Tools Parts & Acc
Belaire
New Arrivals
Shop Equipment
PRODUCT INFO

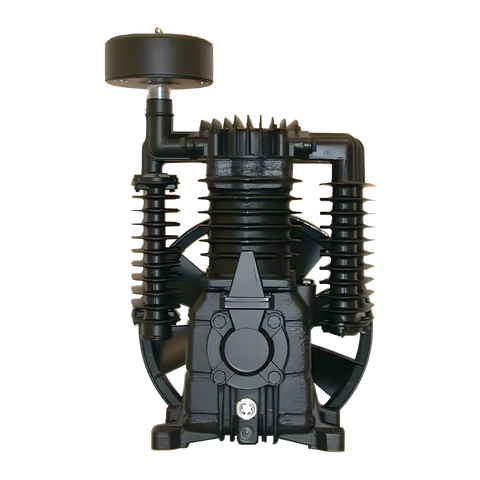

The BelAire 1312101036 T39 Air Compressor Pump is a genuine OEM two-stage reciprocating compressor pump designed for 5 to 7.5 HP belt-driven air compressors. Built with heavy-duty cast iron cylinders, stainless steel reed valves, and integrated intercooling, the T39 pump delivers reliable airflow and pressures up to 175 PSI for demanding shop and industrial applications.
This OEM replacement pump is widely used on BelAire and Chicago Pneumatic air compressors, providing a direct replacement for worn or damaged pumps while maintaining factory performance and durability.
Features:
- Genuine BelAire / Chicago Pneumatic OEM compressor pump - Part #1312101036
- Two-stage reciprocating compression design for improved efficiency and higher pressure output
- Compatible with 5 HP to 7.5 HP belt-driven air compressor motors
- Heavy-duty cast iron cylinders for durability and long service life
- Stainless steel reed valves are designed for improved airflow and reliability
- Intercooler and aftercooler system reduces heat and moisture during compression
- Large 15" flywheel with cooling fins improves airflow and pump cooling
- Dual A-section belt grooves for efficient belt drive operation
- Direct OEM replacement pump for BelAire and Chicago Pneumatic compressors
- Suitable for continuous shop and industrial duty air systems
Specs:
Part Number: 1312101036Model: T39
Type: Two-Stage Reciprocating Air Compressor Pump
Compressor Drive: Belt Driven
Motor Compatibility: 5 - 7.5 HP
Maximum Pressure: 175 PSI
Airflow Output
- 5 HP: Approx. 18.6 CFM @ 100 PSI
- 7.5 HP: Approx. 25.3 CFM @ 100 PSI
Pump Speed Range: 700 - 1400 RPM
Cylinder Bore
- Low Pressure Cylinder: 4.13 in
- High Pressure Cylinder: 2.05 in
Stroke: 2.95 in
Flywheel Diameter: 15 in
Belt Type: Dual A-Section Grooves
Pump Construction: Cast Iron
Oil Capacity: Approx. 1.25 Quarts
Mounting Footprint: Approx. 9.25 in x 6.57 in
Approximate Pump Weight: 75 - 100 lb
Ref No.
T35 (Older model supersede by T39)
4116090019 (Chicago Pneumatic PN)
1312101036, 1312-1010-36, 1312 1010 36 (Belaire PN)
Application:
The BelAire T39 compressor pump is designed for medium-duty to heavy-duty compressed air systems used in commercial and industrial environments.Typical applications include:
- Automotive repair and maintenance shops
- Body shops and paint operations
- Tire and service centers
- Manufacturing and fabrication facilities
- Agricultural equipment service shops
- Industrial pneumatic tool systems
- General shop compressed air supply
The two-stage design allows efficient air compression at higher pressures for demanding pneumatic equipment.
Fitment
BelAire Compressor: 318V, 318VE, 318VL, 318VN, 338V, 338VE, 338VL, QP318VE, QP338VE, QP338VLE, TR908, TH908, TK128-I
Chicago Pneumatic Compressors: RCP-381VS, RCP-381HS, RCP-338VS, RCP-338HS, RCP-581V, RCP-581VS, RCP-583V, RCP-583VS, RCP-7581V, RCP-7581VS, RCP-7583V, RCP-7583VS, RCP-1130G, RCP-1330G, RCP-1430G
May also fits the following compressor brand:
- ABAC
- Atlas Copco
- Quincy
- NAPA compressor lines
Standard Warranty:
18 months from shipment1 year other components
