Mahle CML-9 ALI Wireless Mobile Column Lift, 19,000 lb
Mahle CML-9 ALI Wireless Mobile Column Lift, 19,000 lb
Estimated Lead Time:
Part No: MAH-4858009800-2
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
ALI Certify Lifts
Automotive Lift
MAHLE
Mobile Column Lifts
New Arrivals
Shop Equipment
PRODUCT INFO

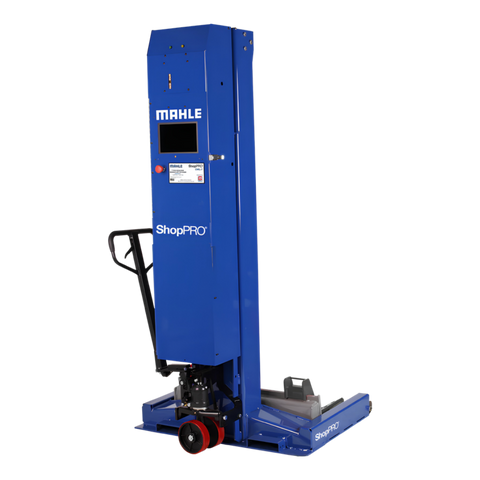

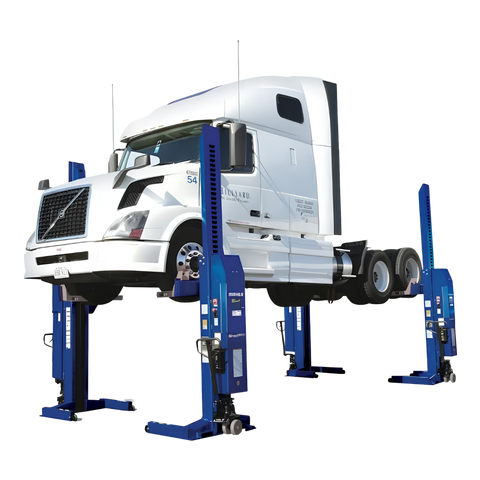

The Mahle CML-9 is a wireless mobile column lift rated at 19,000 lb per column for shop vehicle lifting. It supports wheel-based lifting for light-duty through commercial vehicles while keeping the undercarriage work area clear of external wires and cords. Touchscreen controls, adjustable carriage support, and up to 69 in of lift height help technicians perform maintenance, drivetrain, brake, axle, and wheel service with clear access.
Features:
- Wireless mobile column lift design
- 19,000 lb capacity per lift column
- Touchscreen control with onboard manuals, videos, and internet access
- Adjustable carriage with 12 in forks for 5 in to 24.5 in wheel diameters
- Patent-pending down-stop visual safety system
- No external wires or cords for clearer undercarriage access
- ALI Certified lifting equipment
Specs:
Brand: MahleModel: CML-9
Manufacturer Part No.: 485 80098 00
Product Type: Wireless Mobile Column Lift
Capacity Each Lift: 19,000 lb
Certification: ALI Certified
Hydraulic Operating Pressure: 2,600 psi
Wheel Diameter Range: 5 in to 24.5 in
Max Lift Height, 2 Units Normal Mode: 32 in
Max Lift Height, 4 or More Units: 69 in
Lift Speed at Max Load: 60 in/min
Lift Unit Weight: 1,510 lb
Footprint: 560 in²
Ground Pressure at Max Load: 36.6 psi
Lift Unit Height: 88.5 in
Lift Unit Height at Max Lift: 157.13 in
Width: 44.25 in
Length: 53.63 in
Turning Radius: 47 in
Operating Peak Power: 4 hp
Operating Voltage: 24 VDC nominal

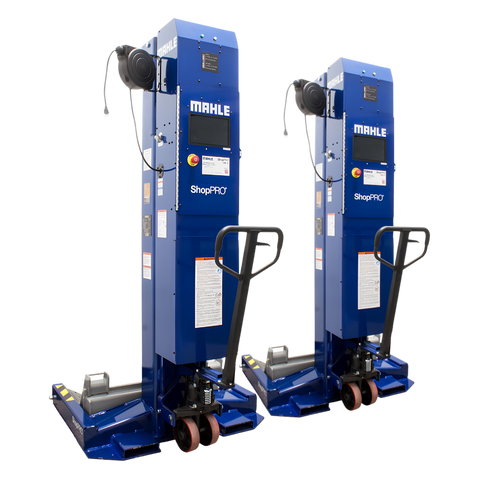

Qty: Pair, 4 Units
Ref No.
485 80098 00 - 1 Unit
485 80099 00 - Set of 4
485 80100 00- Set of 6
485 80101 00- Set of 8
Application:
Wheel-based vehicle lifting for shop service workPreventative maintenance access
Transmission removal and installation
Clutch replacement service
Axle, brake, and wheel service
Fitment:
Wheel Diameter: 5 in to 24.5 in
Vehicle Scope: Light-duty to commercial vehicles
