BendPak 1302BA-DLX-601 Digital Automatic Pipe Bender w/ Deluxe 302 Tooling - 5115121
BendPak 1302BA-DLX-601 Digital Automatic Pipe Bender w/ Deluxe 302 Tooling - 5115121
Part No: BP-1302BA-DLX-601
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
BendPak
Metalwork Tools
Pipe Bender
Shop Equipment
PRODUCT INFO

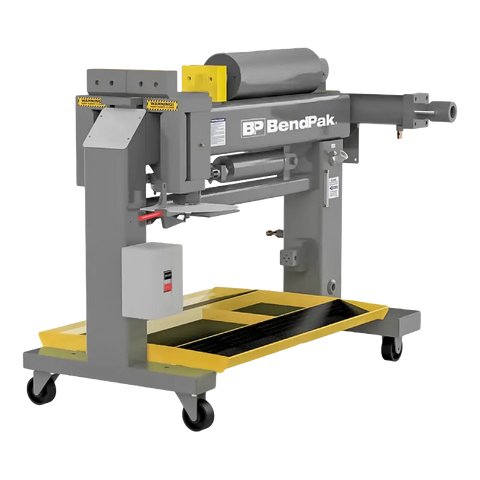

The BendPak 1302BA-DLX-601 Digital Automatic Pipe Bender is a state-of-the-art solution for precision pipe fabrication, engineered to meet the rigorous demands of professional workshops. This fully automatic bender is equipped with a sophisticated digital control system, allowing for the storage and recall of up to 99 different bend depths, ensuring consistent and repeatable results across various projects. The included 302 Deluxe Tooling Set enhances versatility, accommodating a wide range of pipe sizes and bending requirements. Ideal for applications such as automotive exhaust systems, structural pipework, and other heavy-duty tasks, the 1302BA-DLX-601 combines robust construction with user-friendly features to deliver exceptional performance and longevity in demanding shop environments.
Features:
- Fully automatic digital control system with programmable memory
- Capacity to store up to 99 different bend depths for repeatability
- Includes 302 Deluxe Tooling Set for versatile bending applications
- Quick-change bending dies with twist-lock tooling for efficiency
- Dual-hub bending heads precision-ground to within .002" for accuracy
- Integrated power-relief control valve
- Built-in lubrication system with standard grease fittings
- Heavy-duty 5 HP energy-efficient motor for optimal performance
- Industrial-grade hydraulic cylinders with chrome-moly shafts
- Enclosed controls to keep the workspace clutter-free
- Large capacity fluid reservoir to maintain cooler hydraulic oil
- NEMA-rated on/off switch box with overload relays for protection
- Pressure gauges to monitor system pressures in real-time
- Adjustable pressure valve conveniently located upfront
- Industrial-grade casters for easy mobility around the shop
- Optional 180° bending dies available for deeper bends
- 2 separate end-finishing units at rear for all necessary flaring and expanding
- Comes complete with quick-release bending and finishing dies
- Includes high-speed clampless swager and internal expander
- Easy-to-use drop-in collar makes swaging operations quick and efficient
- Pass-through cylinder stem passes completely through the primary frame
- Rigid 6" x 6" x 3/8" welded-steel tube frame
- Commercial-grade hydraulic cylinders
- Quick-release bending dies for reduced setup times
- 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
- Heat-treated tooling for greater service life
- Convenient tool trays keep your tooling organized
- Direct-drive, high-speed, 4 gpm pump
- Single enclosed bottom cylinder applies pressure evenly to the back gates
- Canister oil filter in the hydraulic system keeps the oil clean
- Oil sight-gauges allow visual inspection of oil levels
- Oversized 1/2" high-pressure hose for better speed and cooling
- Open-sided swager box for easier access
Specs:
Model: 1302BA-DLX-601Tooling: 302 Deluxe Set
Product Number: 5115121
Maximum Tube Capacity: 3" OD tubing with .095" wall thickness
Maximum Bending Radius: 5 inches (127 mm)
Minimum Bending Radius: 3.3 inches (89 mm)
Top Cylinder Force: 60,000 lbs (27,216 kg)
Motor: 5 HP / 208-230 VAC / 60 Hz / 1 PH
Hydraulic Pump Output: 4 GPM at 4,200 PSI
Operation Modes: Fully automatic or manual foot switch
Bend-Depth Control: Digital readout with automatic stop and return
Dimensions: 62" L x 30" W x 41" H
Shipping Weight: 1,388 lbs
Shipping Dimensions: 48" x 70" x 30" (1,219 mm x 1,778 mm x 762 mm)
Hydraulic Filter: Canister
Frame Style: Double-Ended Expander
Bending Controls: Automatic / Digital
Expander Controls: Manual
Die Pack: 1.5", 1.75", 1.875", 2", 2.25", 2.5" (302)
Width: 41" (1,041 mm)
Depth: 64" (1,626 mm)
Height: 26" (660 mm)
Bend-Pak Warranty:
5 Years structure2 Years Hydraulic cylinder(s)
1 Year Operating components
1 Year Electrical components
1 Year on site or at factory*
1 Year Free‐Shipping** on ground‐freight charges related to warranty performance
