Gaither G432020 20-Ton Air/Manual Bottle Jack

Gaither G432020 20-Ton Air/Manual Bottle Jack - Bottle Jack
application busBus
application heavy duty truckHeavy Truck
application tractorTractor

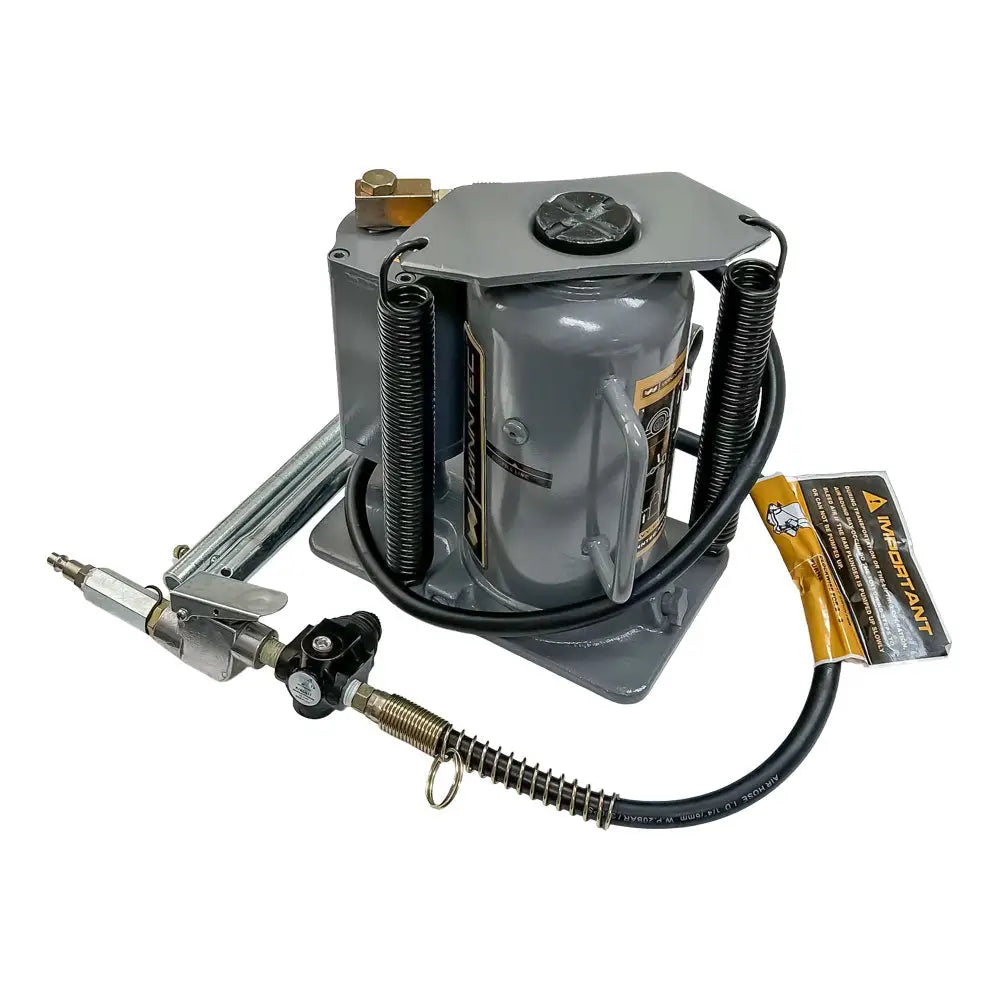

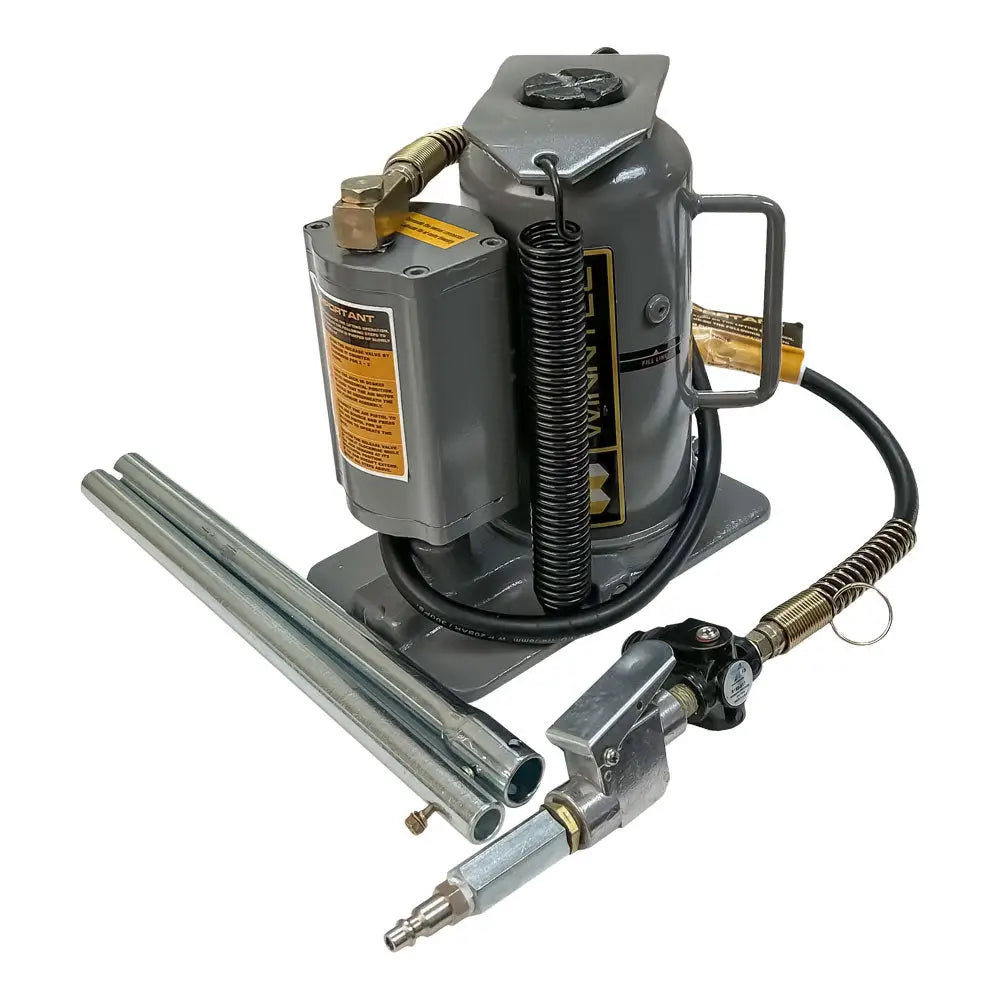

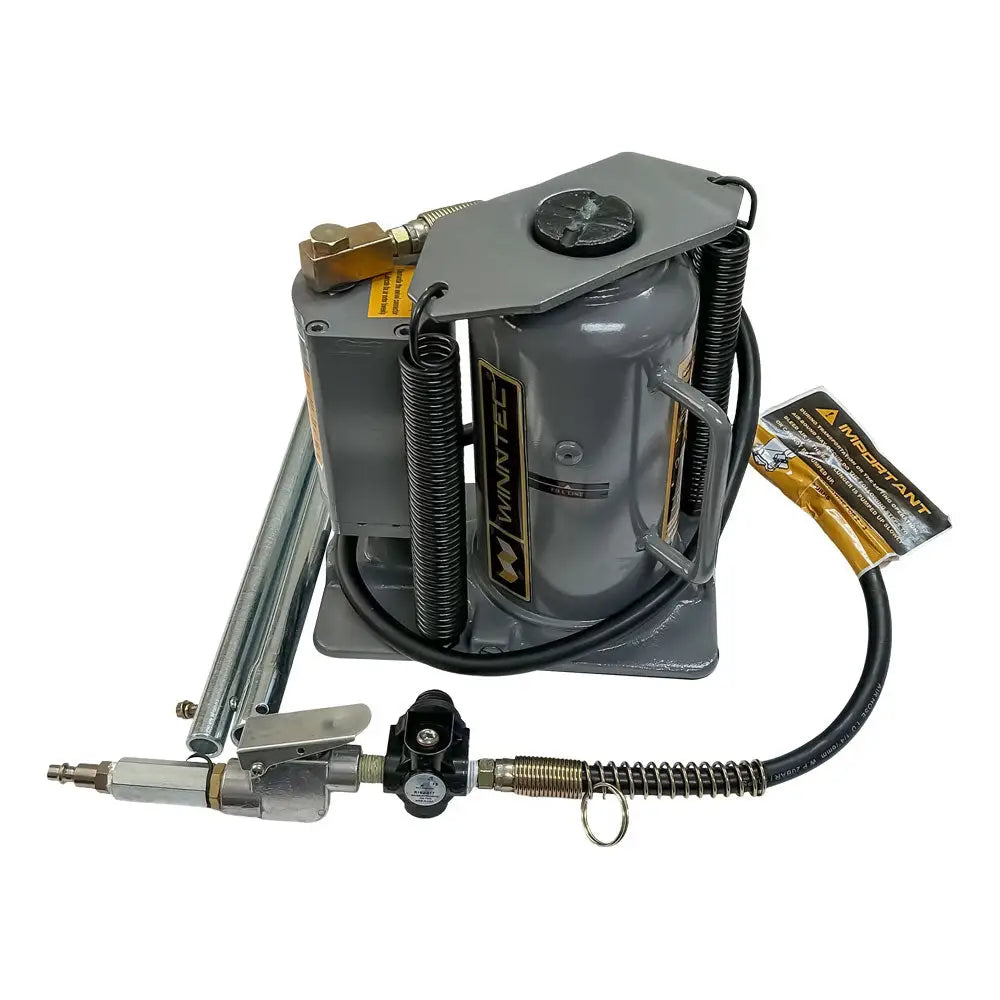

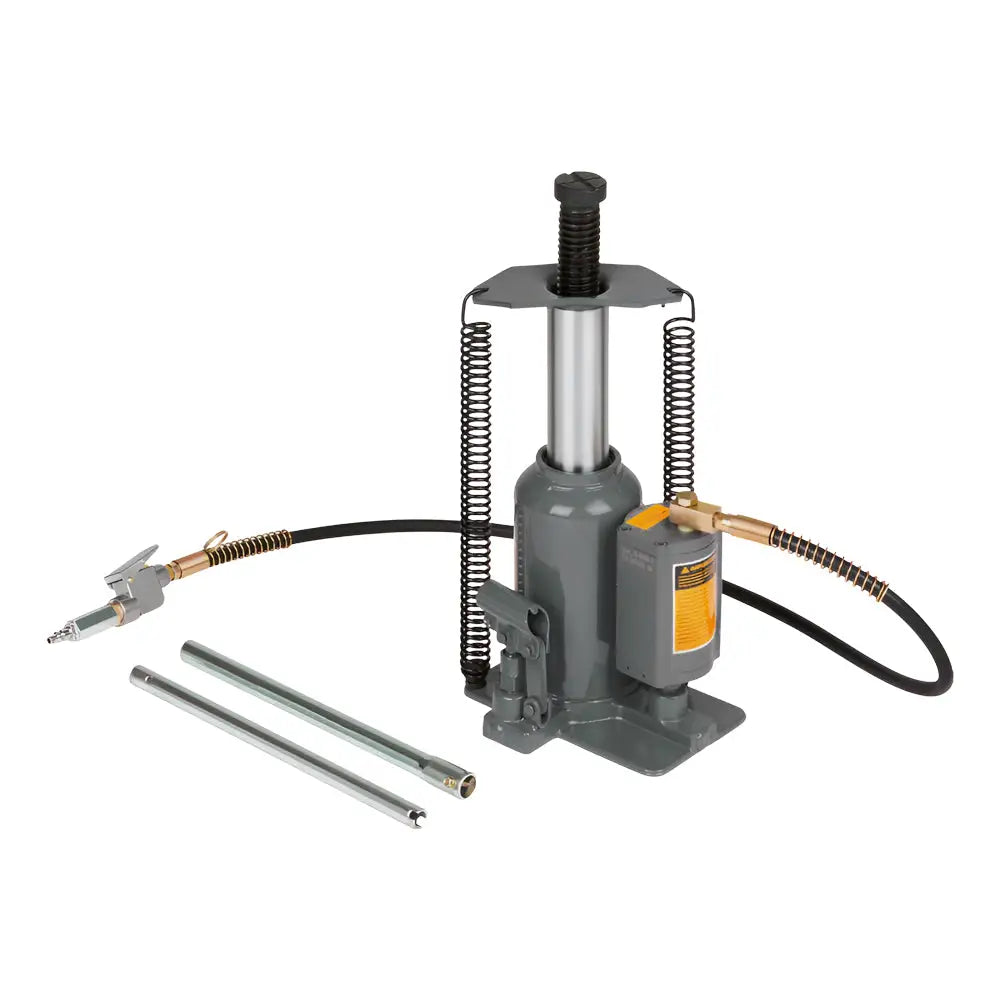

Gaither G432020 20-Ton Air/Manual Bottle Jack

  • SKU: GTC-G432020 $355.00

Part No: GTC-G432020

Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.


The Gaither G432020 is a powerful and durable 20-ton jack that is built to withstand the most demanding challenges. It features a heavy-duty welded base, a chrome ram, and an air regulator, all of which contribute to its unmatched performance. The jack is also lightweight and easy to use, making it ideal for a variety of tasks in garages and workshops.

With a lifting height range of 245mm to 475mm and an 80mm screw extension, the Gaither G432020 offers exceptional versatility. It can be used to lift heavy objects quickly and easily, and its trolley-style design makes it easy to move around the work area. The jack is also equipped with an integrated manual pump, so you can use it even if there is no air supply available.

The Gaither G432020 is built with safety in mind. It features integrated overload protections and air filters that prevent contamination. This ensures that the jack will operate safely and reliably, even in the most challenging conditions.

If you are looking for a powerful, durable, and versatile jack, the Gaither G432020 is the perfect choice for you. It is built to withstand the most demanding challenges and will provide years of reliable service.


  • Wide lifting height range: 245mm to 475mm
  • Versatility enhanced with 80mm screw extension
  • Integrated manual pump for various tasks
  • Heavy-duty welded base spreads weight effectively
  • Polished main ram and chromed pump pistons
  • Heat-treated cylinder wall for exceptional durability
  • Rugged aluminum air motor for heavy-duty usage
  • Horizontal and vertical use design
  • Integrated overload protections ensure safety
  • Air filters prevent contamination, maintaining quality


Cap U.S./Met. : 22 t/20
Min h. in/mm: 10/245
Max h. in/mm: 18.5/470
Hydr Stroke in/mm: 5.71/145
Ext. Screw in/mm: 3.15/80
Length in/mm: 8.31/220
Width in/mm: 6.88/176
G.W.  lbs/kg: 38/17.3
N.W. lbs/kg: 36.3/16.5

Ref No.
Y432020 (Alternate PN)
G432003 (Trolley Mounted Model)
