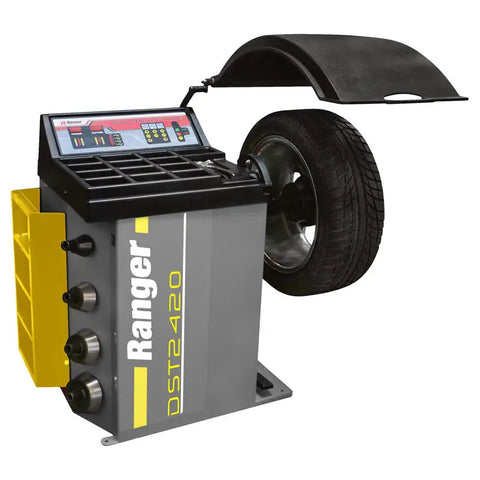

Ranger Dynamic Wheel Balancer - DST-2420

Ranger Dynamic Wheel Balancer - DST-2420
application carCar
application light truckLight Truck

Ranger Dynamic Wheel Balancer - DST-2420

  • SKU: RNG-DST-2420 $2,270.00

Part No: RNG-DST-2420

Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


The NEW Ranger DST2420 wheel balancer can handles wheels up to 30" diameter. It is a highly accurate and dependable no-frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability. From one-bay shops to high-volume tire stores, the DST2420 is built with a gritty toughness that puts out perfectly balanced wheels day after day, around the clock. Like all of our DST Series wheel balancers, it’s a zero-tolerance performer that features our proven Direct-Axis drive system, accurate to within hundredths of an ounce ensuring wheels are balanced vibration-free.

The DST2420 automatically calculates the exact weight needed to achieve an optimal balance for almost every tire and wheel configuration on the planet and brightly displayed LED’s mark the exact amount and location in just six seconds. A full menu of time-saving features that include Dynamic, Static, and Performance Alloy settings allow you to balance OEM wheel configurations and performance wheels with minimal effort and speed.


  • Digital Sensor Technology
  • Multi-Directional Quartz Piezoelectric Load Sensors
  • Quick and Precise Set-Up
  • Mounting Cone Package
  • Weight Optimization
  • Wheel Graphic Interface
  • LED Rolling Wheel Weight Displays
  • Highly precise 64-bit architecture and single‐chip technology.
  • Serpentine Poly-V belt
  • 1 Dynamic, 2 static, 1 standard alloy, and variable alloy setting
  • Automatic rolling wheel parameter setting
  • Low RPM balancing speed and rapid six-second cycle time.
  • Automatic braking
  • Gram/ounce selection and millimeter/inch selection
  • An audible alarm and brightly displayed LED’s
  • Tiered weight placement
  • Wheel restraint pedal
  • LED inner wheel target light
  • Self-calibration function
  • High-volume top weight tray and side shelf storage
  • Quick-release hub nut
  • Side cone storage pegs
  • Open-sided hood design
  • Wheel Weight Starter Kit


Motor: 1.5 hp / 110V/220V 50/60HZ 1Ph.
Working Temperature: -5C/27F - 50C/82F
Drive System: Belt Drive
Cycle Time: 6-12 seconds (avg.)
Balancing Modes: Dynamic / Static / 3 Alloy
Top Positioning Weight Locator: Standard
Inside & Outside Measuring: Standard
Millimeter / Inches Selection: Standard
Ounce / Gram Selection: Standard
Wheel Offset Distance Setting: Manual
Self-calibration Function: Standard
Auto Start when Hood is Lowered: Standard
Wheel Spin Braking: Automatic / Electronic
Wheel Holding Manual Brake Pedal: Standard
Centering Cones Included: 3 Standard / 1 Truck
Truck Cone / Spacer Ring Adapter Set: Included Standard
Wheel Calipers: Standard
Rear Cone Mount Spring: Standard
No-Mar Rear Cone Mount Pressure Cup: Standard
Quick-Release & Mount Hub Nut: Standard
Maximum Tire Diameter: 47in / 1,194 mm
Max Tire Weight: 145 pounds (65 kg)
Max. Wheel Diameter: 10in - 30in / 254 - 762 mm
Wheel Width Capacity: 2in - 18in / 51 mm - 457 mm
Balancing Increments: 0.25 or 0.01 oz
Balancing Speed: 180 RPM
Accuracy: +/- 1 gram / .035 oz
Resolution: 0.01 ounce, 1.4°
Shipping Weight: 398 lbs. / 181 kg

Starter Kit
1 x bulk roll of 100 silver adhesive steel tape weights
1 x bulk roll of 100 black adhesive steel tape weights
1 x starter box of mixed clip-on steel weights

Ranger Warranty:

2 Years Equipment Structure
1 Year Operating Components
1 Year Labor
1 Year Free‐Shipping** on ground‐freight charges related to warranty performance
