Coats 1500 3D Direct Drive Wheel Balancer

Car

Light Truck

Coats 1500 3D Direct Drive Wheel Balancer

SKU: CTS-1500 $8,745.00
Save $2,174.99

Part No: CTS-1500

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

ACCESSORIES

DOWNLOADS

Related Categories: Balancers Machine Coats Tire Balancers

PRODUCT INFO

1400-1500-1600 User Manual

1500 Sale Sheet

Wheel Balancer Accessory

Model 1500 Laser-Guided Direct Drive wheel balancer with auto-positioning for fast and accurate weight placement.

Features:

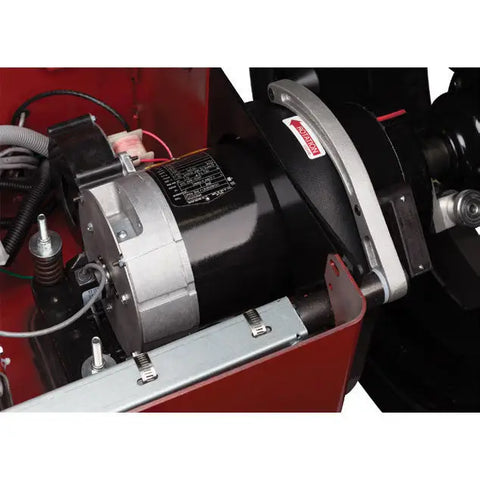

Powered by Direct DriveTM: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

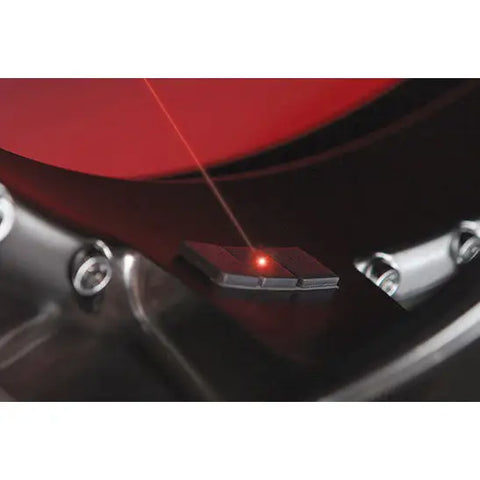

Laser-Guided Operation: Pinpoints the exact weight location, both radially and axially, and eliminates trial and error. Eliminates error by pinpointing the exact Tape-AWeight, Clip-On-Weight, and behind the spoke weight placement locations.
Stop & Lock: Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.
Automatic Data Entry: 1500 offers automatic data entry of the distance, diameter, and width. This eliminates the chance of technician error and speeds up the balancing process.
Weight Storage System: Weight bin is laid out logically so the weights you use most are right at your fingertips.
Side Shadow Board: The side shadow board with the basic accessory kit comes standard on the 1500 balancer.

Specs:

Balancing Modes: 8
Wheel Diameter Range: 8in to 30in
Wheel Width Range: 2in - 20in
Maximum Tire Diameter: Up to 44in
Maximum Tire Weight: 160 lbs.
Shaft Diameter: 40 mm
Interface: LED
Automatic Data Entry: Distance/Diameter/Width
Electrical Requirements: 220v, 1ph or 220v, 3ph
Warranty: 3 Year Parts, 6 Months Labor

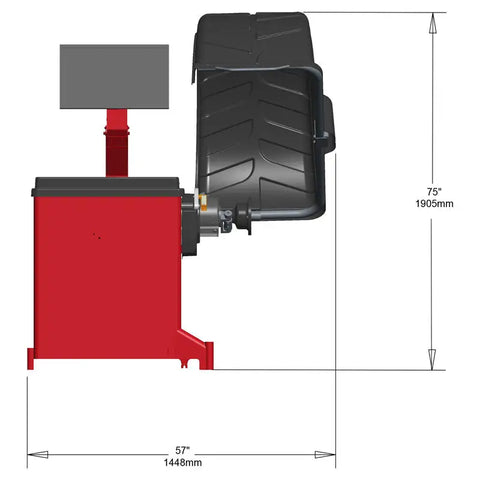

Footprint: 75in H x 57in W x 55in D
Shipping Weight: 650 lbs.
Part Number: 80015003D - 1ph

Includes:

85608850 - Stud - Weight Tray (3)
85609499 - 8 Double Sided Collets (2.03in-5.31in)
8309011 - Calipers
85607780 - Premium Wheel Weight Hammer
85607503 - Premium Quick nut
8112106 - Small Pressure Cup & Rubber Lip
85608312 - No-Mar Ring
8112107 - Spring
8113390 - Scraper
85610715 - Side Shadow Board
