Dill DV-542 Straight Metal O-Ring Clamp-In Valve Stem (.390" Hole, M6 Tapped)
BusTruck
Dill DV-542 Straight Metal O-Ring Clamp-In Valve Stem (.390" Hole, M6 Tapped)
Shipping Estimate
Ships in 1-3 Business Days
Shipping times vary.
Shipping times vary.
Estimated Lead Time:
Part No: DIL-DV-542-EA
SHIPPING INFO
Shipping Estimate
Ships in 1-3 Business Days
Shipping times vary.
Shipping times vary.
ACCESSORIES
Related Categories:
AA American Automotive
New Arrivals
Shop Supplies
Tire Valves
Truck Valves
PRODUCT INFO

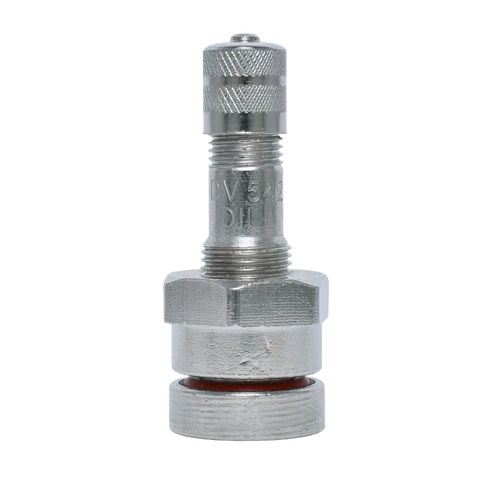

The Dill DV-542 is a premium straight metal valve stem designed for wheels with a 0.390″ valve hole. Featuring an M6 tapped interface and O-ring clamp-in seal, it provides a secure, leak-free fit ideal for heavy-duty and aftermarket alloy wheels—especially those using TPMS or sensor-mounted systems.
Features:
- M6 Tapped Interface: Accepts TPMS sensors or adapters for advanced monitoring systems.
- O-Ring Clamp-In Seal: Ensures airtight, corrosion-resistant performance on aluminum or steel rims.
- .390″ Valve Hole Fit: Standard for many 19.5″ and 22.5″ truck wheels.
- Nickel-Plated Brass Construction: Provides long-term durability and resistance to corrosion.
- High-Pressure Rated: Handles up to 200 PSI, suitable for commercial truck and fleet applications.
- Straight Design: Simplifies access for inflation and service in tight wheel wells.
Specs:
Part Number: DV-542 (070054200DV010)Stem Type: Metal Clamp-In (O-Ring Seal)
Stem Style: Straight
Valve Hole Diameter: 0.390" (≈ 9.7 mm)
Thread Interface: M6 Tapped (Sensor Mount)
Material: Nickel-Plated Brass
Max Cold Inflation: Up to 200 PSI (typical for 542 series)
Installation Torque: 80 - 125 in-lb (typical for 540/542 series)

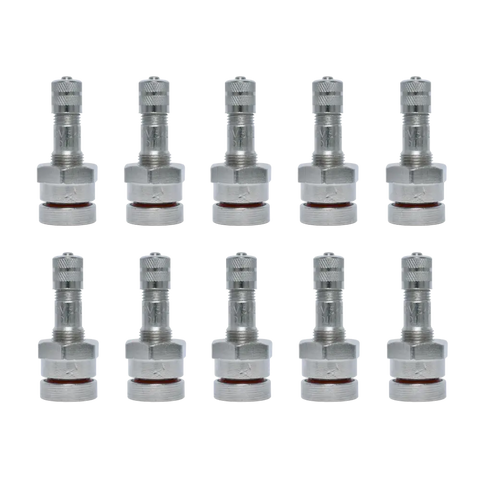

Qty: 1 or Box of 10
Application:
19.5″ and 22.5″ truck wheelsTPMS adapter mounts
commercial and fleet use
