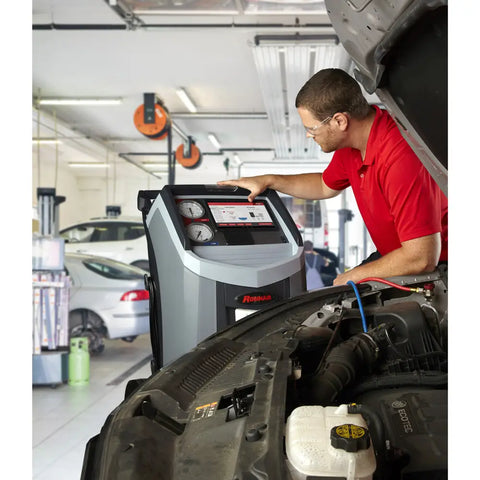

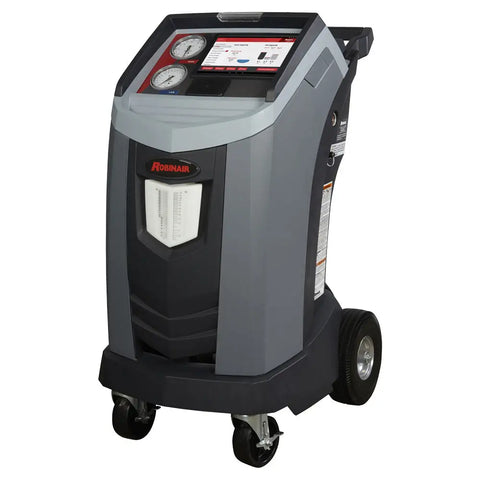

Robinair 34998 Connected R-134a ACS Machine
Part No: ROB-34998
Alaska, Hawaii, & any/all US territories & international orders are excluded.
The Robinair 34998 Connected R-134a ACS Machine recovers, recycles, evacuates, leak-tests, and recharges R-134a with improved 98.5% efficiency - unmatched by any competitor. The new design features a large 105in capacitive touch LCD display and automated features, including automatic internal refrigerant refills, oil drain, and UV dye injection.
The 34998 also boasts full wireless capabilities for Wi-Fi or Bluetooth communication, enabling automatic machine software updates and optional refrigerant capacities database downloads, which are purchased separately. Use Mopria Print Service wireless printing to print A/C service summary reports for customers or insurance companies. The Android operating system can also export service reports to store or share digitally.
The Wi-Fi-enabled machine also effectively stores machine metrics and data related to services performed with the ACS machine to add to vehicle service reports.
Specs:Operating Temperature Range: 32° - 120°F (0°-50°C)
Voltage: 125 VAC, 60 Hz
Recovery Performance: > 95% at 70 to 75° F (21 to 24°C) < 30 minutes
Charge Performance: +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Display: 10in capacitive touch LCD display
Filter-Drier Capacity: 150 lb (68kg), spin-on type
Hose Length: 9 ft (2.75 m)
Compressor: 3/8 hp, pressure-protected, oiled, hermetically sealed
Vacuum Pump: 1.5 cfm Dual Stage, 29.9 InHg
Internal cylinder: 30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Languages: English, French, Spanish
Certifications: SAE J2788, UL 1963
Model Number: 34998
Warranty: One Year
Includes:34998 R-134a ACS Machine
Calibration Check Weight
Extended Maintenance flyer
Service Center Locations listing sheet
MACs 609 Certification Information sheet
MVAC Equipment Certification form
SDS sheet - Vacuum pump oil
SDS sheet - POE Compressor oil
