Coats RC-150 Motorcycle/ATV Tire Changer

Tire Changer - Coats Motorcycle And Atv Tire Changer
application atvATV, Golf Cart
Motorcycle

Coats RC-150 Motorcycle/ATV Tire Changer

  • SKU: CTS-RC-150 $7,657.52

Part No: CTS-RC-150

SHIPPING INFO
ACCESSORIES
DOWNLOADS


PRODUCT INFO

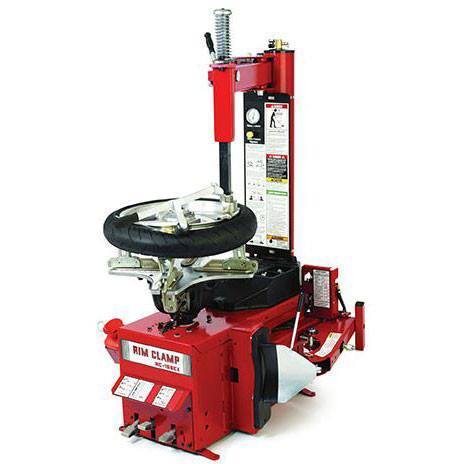

Coats Motorcycle And ATV Tire Changer Model RC150.


Features:

  • Three-position motorcycle rim clamps are specifically designed for motorcycle rims to provide the grip and protection you need for wider wheels.
  • Sculpted bead-loosener is contoured for motorcycle wheels and tires. Handles both wide and narrow tires with ease.
  • Gear-reduction turntable protects expensive rims and gives the operator more torque at lower RPMs for more precise control over larger installs.
  • Rim clamp pressure-control system indicates the amount of pressure being applied to the motorcycle rim. Pressure can be adjusted with the onboard regulator to prevent damage to delicate wheel designs.
  • Manual bead-roller assists in handling stiff sidewall tires by providing extra leverage. Reduces operator effort and fatigue.
  • Total rim protection package comes with a clamp, lift tool and bead-loosener socks, plus Duckhead/ R booties and controlled rotation to protect the most expensive wheels.
  • Ergonomic foot controls reduce fatigue, speed up operation and help prevent mistakes.

Specs:

The shape of Tabletop: 'X' shaped for rigid perimeter support of the wheel
Wheel Clamping Method: Four custom, 3 positions, self-centering plastic Rim Clamps on tabletop actuated by two pneumatic cylinders
Bead Loosening System: Foot control actuates dual action cylinder and sculpted shoe without removing sprockets/brake discs on many
Electric Drive System: 110v, 15A single phase
Pressure Limiter: Standard
Bead Seating Reservoir: 3.8 gal. tank, pressure protected
Inflation Gauge: Easily calibrated 0 to 60 PSI gauge with protection to 200 PSI. Damage resistant Lexan faceplate
Filter Lubricator: Standard with automatic drain and large capacity lubricator bowl
Rim Diameter: 6 in to 23 in
Maximum Rim Width: 11 in, 14 in with optional auto clamps
Maximum Tire Diameter: 50 in
Required Air Source: 110 to 175 PSI 2HP compressor, 5 SCFM at 150 PSI
Operating Footprint: 32 in W x 40 in D x 70 in H
Shipping Weight: 425 lbs

Application:

Motorcycle
ATV
