Champion Advantage 7.5HP Vert Air Compressor (80 Gal)
- SKU: ADVA-S168 From $4,595.00
- Save $4,181.00
Estimate Lead Time:
Part No: ADVA-S168
SHIPPING INFO
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
${{amount}}
DOWNLOADS
Related Categories:
Air Compressor
Champion
PRODUCT INFO

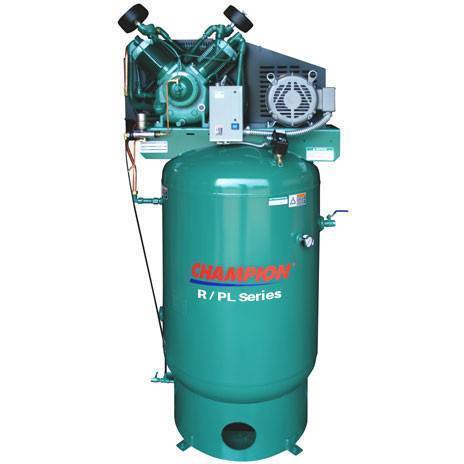

Advantage VR7F-8 splash lubricated 7.5HP, 80 Gal, verticle tank, with R15 pump model air compressor
These Advantage units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.
Features:
- Mounted Nema 1 Control Panel
- Low Oil Stop Control
- Electric - Auto Tank Drain
- Air Cooled Aftercooler / Select Models
- Dual Control / 15 & 25 HP Models Only
- Vibration Isolators
- R-Series, two-stage pump
- Loadless Starting
- Intake Filter
- Start/stop pressure switch control
- 1800 RPM Motor
- ASME Coded Receiver
- Enclosed Belt Guard
VR7F-8-ADVA-S168
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 1
Volts: 208
Model Number: VR7F-8
Control Panel, Level 1: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant / Ordering : ADVA-S168
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
VR7F-8-ADVA-S13
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 1
Volts: 230
Model Number: VR7F-8
Control Panel, Level 2: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S13
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
VR7F-8-ADVA-S17
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 3
Volts: 208
Model Number: VR7F-8
Control Panel, Level 3: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S17
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
VR7F-8-ADVA-S15
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 3
Volts: 230
Model Number: VR7F-8
Control Panel, Level 4: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S15
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 1
Volts: 208
Model Number: VR7F-8
Control Panel, Level 1: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant / Ordering : ADVA-S168
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
VR7F-8-ADVA-S13
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 1
Volts: 230
Model Number: VR7F-8
Control Panel, Level 2: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S13
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
VR7F-8-ADVA-S17
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 3
Volts: 208
Model Number: VR7F-8
Control Panel, Level 3: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S17
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
VR7F-8-ADVA-S15
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 3
Volts: 230
Model Number: VR7F-8
Control Panel, Level 4: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S15
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
Standard Warranty:
1 year parts1 year labor
3 years Compressor Pump (Defect in material and workmanship)
Premium Ext. Warranty Kit
2 years parts2 years labor
6 years Compressor Pump (Defect in material and workmanship)
