Air Compressor - Champion R Series Air Compressor Model VR5-8

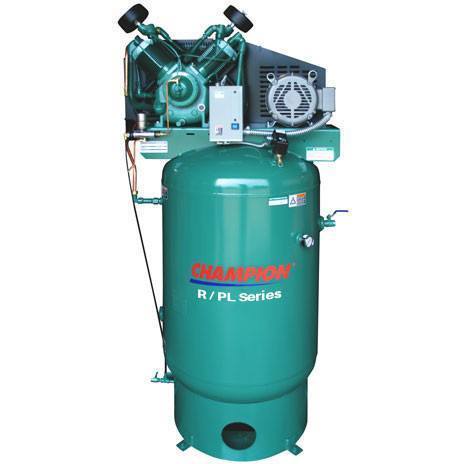

Champion R Series Air Compressor Model VR5-8

Factory Direct
Ships in 3-5 Business Days
Shipping times vary.
  • Item
    Part Number
    Price
    Quantity
  • VR5-8-115V1P
    2,789.99
  • VR5-8-208V1P
    2,789.99
  • VR5-8-230V1P
    2,789.99
  • VR5-8-208V3P
    2,789.99
  • VR5-8-230V3P
    2,789.99
  • VR5-8-460V3P
    2,789.99
  • VR5-8-575V3P
    2,789.99
Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


The PL-Series compressor has been designed to operate in extreme duty applications and is a pressure-lubricated alternative to the R-Series unit. Because the PL-Series can operate up to 250 psig in remote locations or in off-level operations, it is a true industrial use compressor. The PL-Series features domed pistons, integral cylinder head, disc valves and an oil pump that provides lubricant to all crucial parts of the compressor.

  • 3 - 35 hp
  • Up to 250 psig
  • 9.7 - 202 acfm at 175 psig on Electric Driven units
  • Tank or Base Mounted, Simplex, Duplex and Engine Driven Models
  • Two-Stage pressure lubricated pumps
  • Loadless auto stop/start
  • Pro-rated 5-year pump warranty and 1-year package warranty
  • Factory filled with ChampLub lubricant

Specs:
Model Number: VR5-8
HP: 5
Series: R Series
Lubrication: Splash
Unit Config.: Simplex
Tank Config.: Vertical
TankSize (Gal.): 80
Pump Model: R-15B
ACFM 175 PSIG: 17.3
RPM: 734
Approx.Ship Wt. (Lbs.): 545
ModelMatrix Number: CASRSA
L x W x H Dimensions Inches: 32½ x 24 x 75
